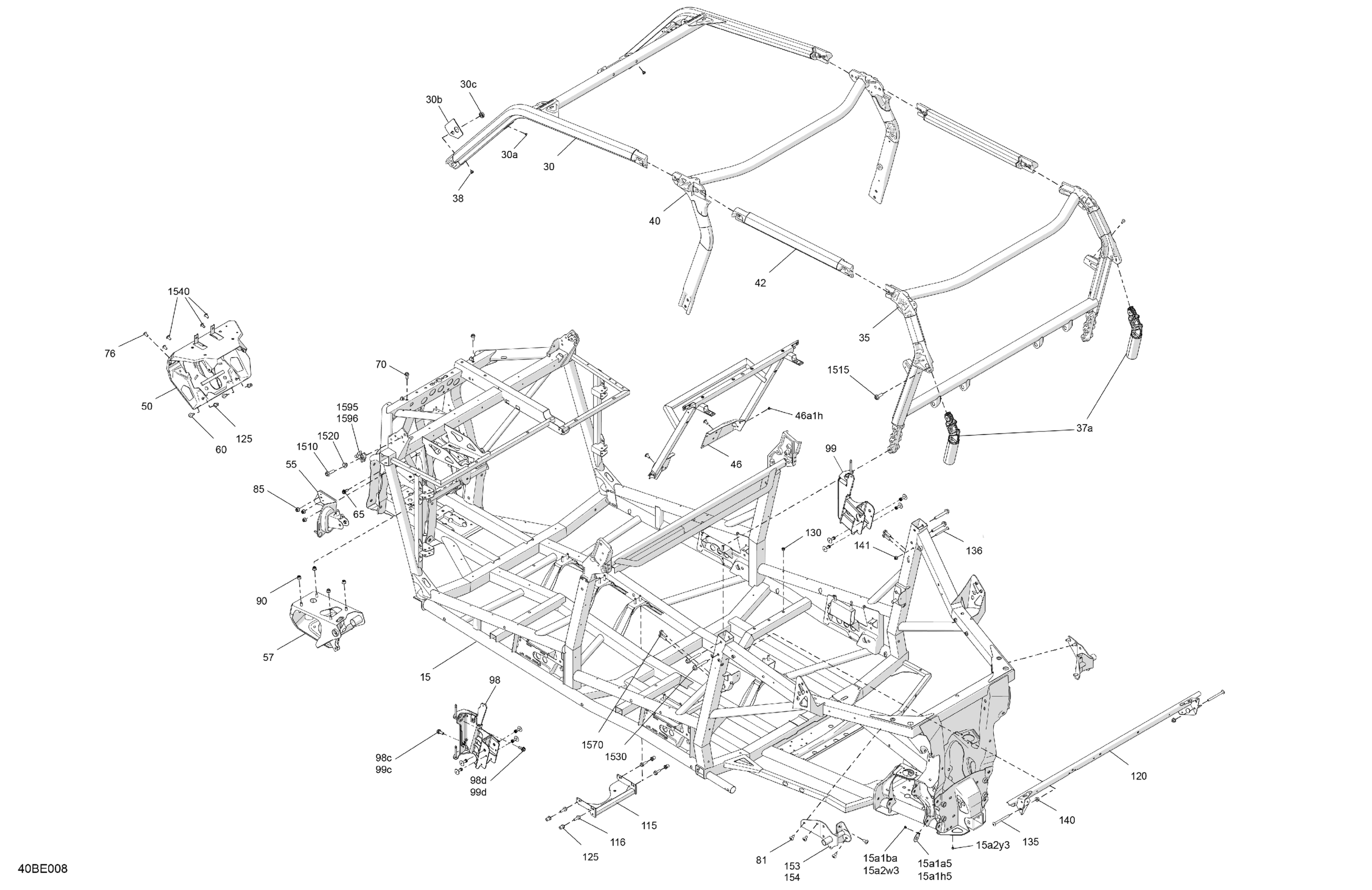

Can-Am International - Commander Max - 700 - DPS - 6HSF - Compass Green - 60" Width, 2025 Frame - System Diagram

#

Description
Price

15

Black, Assembled Frame | Includes 15 to 15a2y3

715009348

$3,359.99

15a1a5

Shim

705209479

$3.29

15a1h5

Shim

705209479

$3.29

15a1ba

Pop Rivet 3/16 X ,425

293150293

$0.35

15a2w3

Pop Rivet 3/16 X ,425

293150293

$0.35

15a2y3

Pop Rivet 3/16 X ,425

293150293

$0.35

30

Deep Black, Front Cage Kit | Includes 30 to 30c

715009362

$619.99

30a

Pop Rivet 3/16 X ,425

293150293

$0.35

30b

Shim

705210164

$13.17

30c

Bushing

705210165

$38.99

35

Deep Black, Rear Cage Ass'y

715009349

$619.99

37a

Deep Black, Rear Cage Extension

705211494

$77.99

38

Insert Half Hex Body M6 x 1.0

250100199

$3.19

40

Mid Cage Max

703501203

$519.99

42

Deep Black, Cage Extension

705209848

$41.99

46

Front Body Support | Includes 46 to 46a1h

705208893

$219.99

46a1h

Pop Rivet 3/16 X ,425

293150293

$0.35

50

Deep Black, Front Bumper

705209043

$457.49

55

Brake Support

705206217

$49.99

57

DPS Support

705206294

$71.99

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

76

Torx Truss Screw M8 X 16

250000746

$3.38

81

Torx Truss M/S M8 X 20

250000953

$2.11

85

Hex. Elastic Flange Nut M8

233281416

$1.48

90

Hex. Elastic Flange Nut M8

233281416

$1.48

98

LH Male Door Hinge Ass'y | Includes 98 to 98d

705211564

$439.99

98c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

98d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

99

RH Male Door Hinge Ass'y | Includes 99 to 99d

705211565

$439.99

99c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

99d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

115

Bearing Support

705211563

$48.99

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

120

Central Tube

705209434

$159.99

125

Insert Half Hex Body M8 x 1.25

293450307

$2.69

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Torx Truss M8 X 90

250000806

$7.51

136

Torx Screw M6 X 70

250000954

$1.90

140

Hex. Flange Nut

233081436

$2.00

141

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

153

LH Rear Open Carrier Anchorage

705210342

$104.99

154

RH Rear Open Carrier Anchorage

705210343

$104.99

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1515

Hex. Flange Screw M10 X 30 Scotch G.

207503056

$2.53

1520

Flange Elastic Nut M10

233201466

$3.17

1530

Hex. Flange Screw M10 X 70

207607056

$4.29

1540

Torx Truss Screw M8 X 16

250000746

$3.38

1570

Hex. Flange Screw M10 X 25

207502546

$2.11

1595

LH Front Anchorage

705209913

$38.99

1596

RH Front Anchorage

705209914

$38.99
