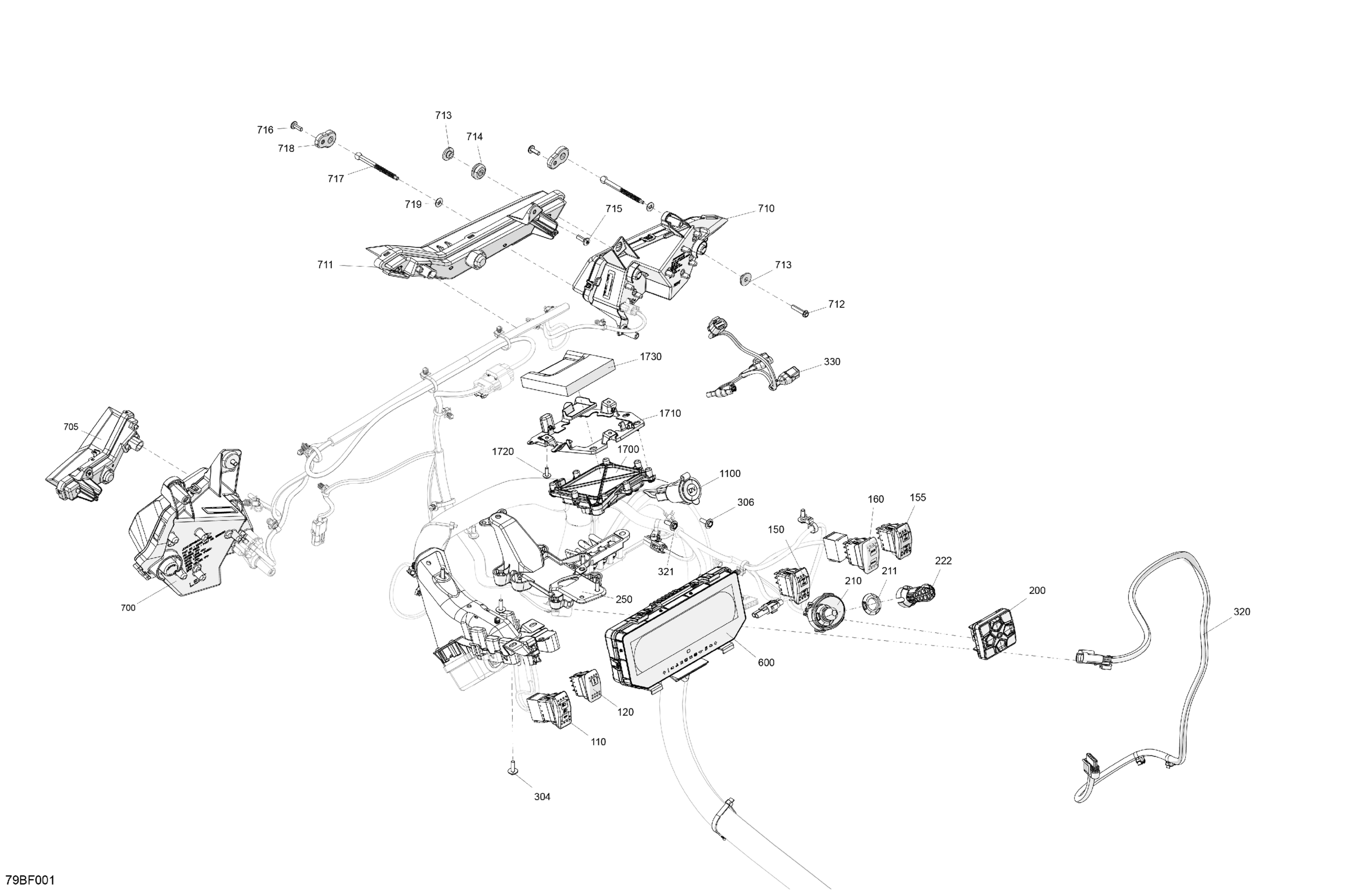

Can-Am Commander - 1000R EFI - XTP - 6YTA - Mineral Gray Satin - 64" Width - CALI, 2026 Electric - Front Section Diagram

Description

Price

110

Light Switch

710004492

$46.12

120

Switch Winch

710002052

$28.92

150

Differential Switch

710006040

$32.28

155

Differential Lock Switch

710005470

$46.12

160

Differential Mode Switch

710006557

$32.28

200

Multifonction Switch

710006650

$87.66

210

Terminal DESS One Wire

515179305

$60.42

211

Specialized Nut

278004274

$2.72

214

Start-Stop Button | Not Shown

710005213

$59.97

222

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

250

Housing Support

710005672

$8.05

304

Screw PT Type K-50 X 16

250000959

$1.74

306

Screw PT Type K-50 X 16

250000959

$1.74

320

Trottle Pedal Harness

710005929

$226.12

321

Screw PT Type K-50 X 16

250000959

$1.74

330

Front Differential Wiring Harness

710006807

$46.12

600

MID Multifunction Gauge

710008295

$355.35

700

LH Front Auxiliary LED Light

710008811

$441.74

705

LH Auxiliary LED Headlight

710006374

$184.58

710

RH Front Auxiliary LED Light

710008812

$432.24

711

RH Auxiliary LED Headlight

710006375

$184.58

712

Torx Screw M5 X 20

250000724

$1.39

713

Shoulder Bushing

710004749

$2.75

714

Overmolded Grommet

293720130

$4.38

715

Screw PT Type K-50 X 16

250000959

$1.74

716

Hex. Flange Screw M5x10

207551056

$1.57

717

Ajustment Screw

710005837

$6.45

718

Ball Socket

293900157

$8.45

719

O-Ring

293300192

$3.85

1100

12V Power Outlet

710005374

$27.27

1700

Differential Module

710008842

$447.66

1710

FDM Support

710006104

$7.60

1720

Screw PT Type K-50 X 16

250000959

$1.74

1730

Protector Foam

710006580

$15.22
