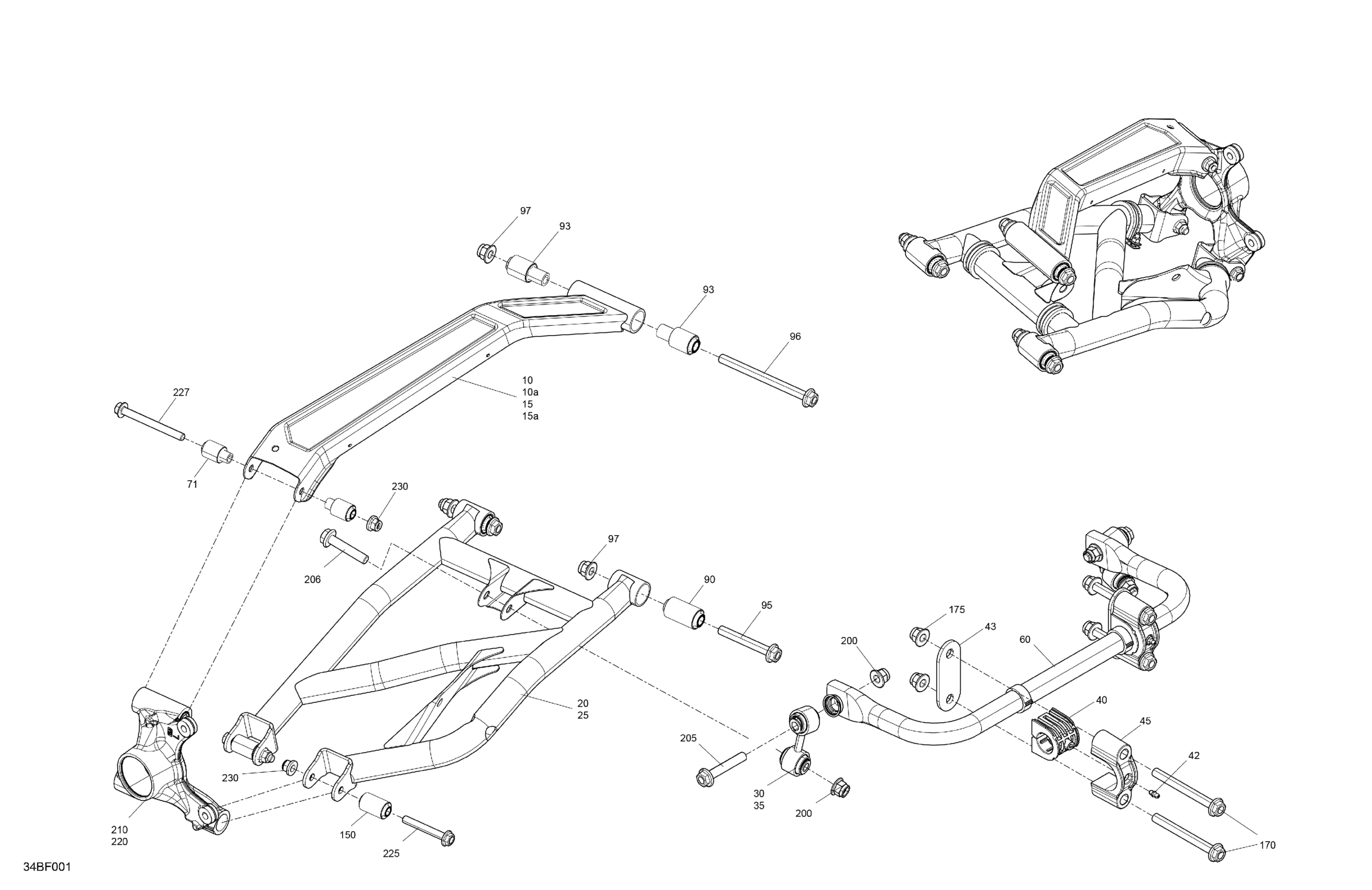

Can-Am Commander - 1000R EFI - XTP - 6YTA - Mineral Gray Satin - 64" Width - CALI, 2026 Suspension - Rear Components Diagram

Orange Crush, LH Upper Suspension Arm Ass'y With Bushing | Includes 10 to 10a This part replaces 706004391.

715010686

$249.99

LH Upper Suspension Arm Ass'y With Bushing This part replaces 706003715.

715010684

$249.99

Orange Crush, RH Upper Suspension Arm Ass'y With Bushing | Includes 15 to 15a This part replaces 706004392.

715010697

$249.99

RH Upper Suspension Arm Ass'y With Bushing This part replaces 706003716.

715010695

$249.99

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003727.

715010704

$249.99

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003728.

715010711

$249.99

Sway Bar Double Link

706003004

$111.49

Sway Bar Double Link

706003003

$111.49

Stabilizer Bar Bushing

706004266

$8.43

Grease Fitting

408200700

$3.49

Plate Support

706002977

$5.09

Clamp

706002970

$16.49

Sway Bar Ass'y

706003475

$126.99

Suspension Arm Bushing

706006100

$3.91

Suspension Arm Bushing

706004828

$3.79

Suspension Arm Bushing

706004829

$3.91

Hex. Flange Screw M12X1.75X85

250001168

$3.38

Screw Hex Flange DIN.6921 M12X1.75X

250001167

$3.29

Elastic Flange Nut M12

250001195

$2.64

Suspension Arm Bushing

706006099

$3.91

Screw Flange M12 X 115

250000860

$6.67

Elastic Flange Nut M12

250001195

$2.64

Elastic Flange Nut M12

250001195

$2.64

Hex. Flange Screw M12 X 70

250000858

$3.80

Flange Screw M12 X 60

250000857

$7.41

LH Rear Knuckle Ass'y

715010183

$126.99

RH Rear Knuckle Ass'y

715010184

$126.99

Hex. Screw M10 X 70, Scotch Grip

207507046

$7.41

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

Hex. Flange Elastic Nut M10

233201436

$2.11
