Partiron

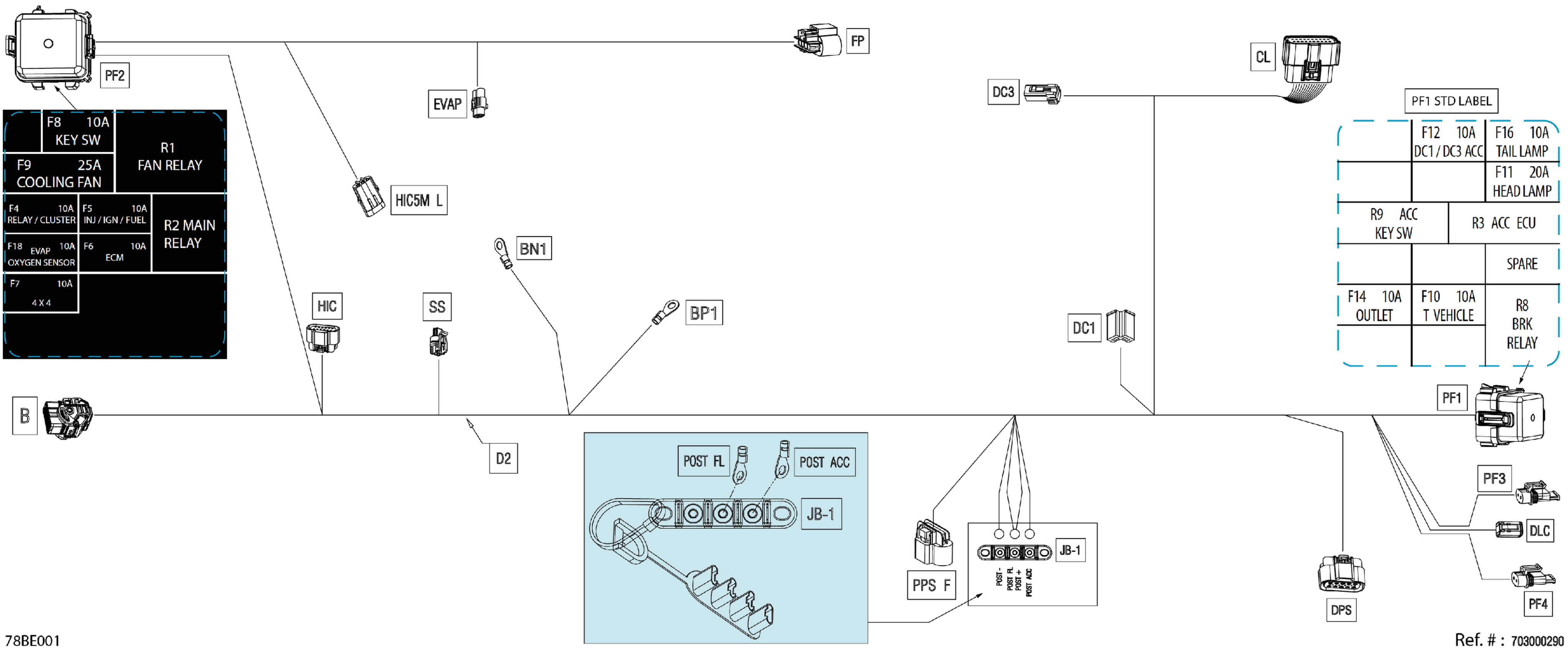

Can-Am Commander Max - 1000R EFI - XMR - 6CSD - Wildland Camo - 64" Width, 2025 Electric - Main Harness - 710007803 Diagram

#

Description
Price

300

Main Wiring Harness

710007803

$768.63

B

Cover, 48 positions

710001591

$11.54

B

Female Terminal Housing, 48 Circuits

710001588

$45.49

B

Plug

710001592

$2.06

B

Plug

710001593

$2.06

B

Female Terminal

710001589

$2.06

B

Terminal

710001728

$5.52

B

Female Terminal

710001727

$2.93

BN1

Open Barrel Terminal

278001392

$4.00

BP1

Shrink Tubing, 6 mm

515177246

$0.99

BP1

Open Barrel

278000992

$2.06

CL

Female Housing 20 Circuits

278002858

$22.98

CL

Sealing Cap

278002860

$1.63

CL

Female Terminal

515178018

$0.90

CL

Female Terminal 22 AWG

515178349

$1.76

DC1

Housing

710005373

$3.93

DC1

Female Terminal

710005952

$1.49

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3 CAP

Male Housing, 2 Circuits

710000667

$7.25

DESS

Housing

710001161

$10.51

DESS

Lock

710001162

$3.18

DESS

Wire Seal

710001163

$5.85

DESS

Female Terminal

710001164

$6.79

DIFF

Label

710006076

Unavailable

DIFF

Housing Connector

710002003

$11.81

DIFF

Female Terminal

710005491

$1.57

DIFF

Terminal

710003047

$3.12

DLC

Female Housing 6 Circuits

710002706

$18.63

DLC

Lock

710002705

$4.15

DLC

Female Terminal

710005438

$3.88

DLC

Female Terminal

710005439

$4.15

DPS

Female Housing

710004989

$7.00

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Lock

710001222

$1.93

DPS

Plug

710002075

$2.84

DPS

Wire Seal

278002186

$5.18

DPS

Seal

710003153

$0.91

DPS

Female Terminal

278002187

$5.79

DPS

Terminal

710001873

$2.19

EVAP

Wire Seal

710000402

$4.28

EVAP

Female Terminal

409012100

$4.28

FL-1

Fuse Link 21-30AMP

715002536

$14.27

FL-2

Fuse Link 41-50AMP

715002538

$20.12

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Lock

710001222

$1.93

FP

Lock

710006214

$0.73

FP

Wire Seal

278002186

$5.18

FP

Seal

710003153

$0.91

FP

Female Terminal

278002187

$5.79

FP

Terminal

710001873

$2.19

FRA

Female Housing, 2 Circuits

515175658

$14.90

FRA

Female Terminal

710003896

$1.70

FRONT HL M

Clip Bracket Connector (edge)

409210100

$1.94

FRONT HL M

Housing

515177201

$7.33

FRONT HL M

Lock

710006398

$0.73

FRONT HL M

Seal Wire

710001332

$3.12

FRONT HL M

Seal

710001233

$2.93

FRONT HL M

Terminal

710001223

$2.93

FRONT HL M

Terminal

710001224

$2.93

FT

Clip

710000992

$3.88

FT

Female Housing, 2 Circuits

278000217

$8.72

FT

Wire Seal

278000218

$4.00

FT

Male Terminal

409004300

$5.30

HIBM

Label

710006074

Unavailable

HIBM

Housing Connector

710002001

$11.81

HIBM

Terminal

710003047

$3.12

HIBM

Female Terminal

710005491

$1.57

HIC

Female Housing, 12 Circuits

710001930

$13.52

HIC

Lock

710001222

$1.93

HIC

Lock

710006333

$5.52

HIC

Cap

710001225

$8.34

HIC

Seal Wire

710001332

$3.12

HIC

Seal

710001233

$2.93

HIC

Terminal

710001229

$2.93

HIC

Terminal

710001228

$3.12

HIC5M L

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

HIC5M L

Wire Seal

278001065

$5.85

HIC5M L

Male Terminal | XT Models

278000222

$2.93

JB-1

Junction Block Cover

710006610

$19.37

JB-1

Elastic Stop Nut M6, Brass

232561200

$4.03

KEYPAD

Housing

710001161

$10.51

KEYPAD

Lock

710001162

$3.18

KEYPAD

Wire Seal

710001163

$5.85

KEYPAD

Female Terminal

710001164

$6.79

PF1

Fuse Cover

278003553

$3.79

PF1

Fuse Base Ass'y

278003448

$30.57

PF1

Housing Support

710005671

Unavailable

PF1

Wire Seal

278000216

$2.93

PF1

Seal

293300198

$1.78

PF1

Wire Seal

278000218

$4.00

PF1

Wire Seal

710000048

$5.85

PF1

Wire Seal

278001065

$5.85

PF1

Female Terminal

515177177

$4.96

PF1

Female Terminal

710000918

$5.85

PF1

Female Terminal

278002578

$0.99

PF1 STD LABEL

Fuse Box Decal

710007046

$11.09

PF1-F10

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F11

Little Fuse, 20 Amperes

710000746

$7.78

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.31

PF1-R3

Relay, 30 AMP

515176774

$18.63

PF1-R8

Relay

715900824

$18.63

PF1-R9

Relay, 50 AMP

515176775

$13.45

PF1-SP1

Little Fuse, 20 Amperes

710000746

$7.78

PF2

Fuse Cover

278003553

$3.79

PF2

Fuse Box Decal

710006792

$12.79

PF2

Fuse Base Ass'y

278003448

$30.57

PF2

Wire Seal

278000216

$2.93

PF2

Seal

293300198

$1.78

PF2

Wire Seal

278000218

$4.00

PF2

Wire Seal

278001065

$5.85

PF2

Female Terminal

710000918

$5.85

PF2

Female Terminal

278002578

$0.99

PF2 SP1

Little Fuse, 10 Amperes

710000744

$8.31

PF2 SP2

Little Fuse, 10 Amperes

710000744

$8.31

PF2 SP3

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F7

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F9

Fuse, 25 Amps

710002590

$17.88

PF2-R1

Relay, 30 AMP

515176774

$18.63

PF2-R2

Relay

715900824

$18.63

PF3

Fuse Holder

278001325

$8.31

PF3

Female Terminal

710000113

$5.85

PF3-F2

Fuse

710001613

$8.31

PF4

Fuse Holder

278001325

$8.31

PF4

Female Terminal

710000113

$5.85

PF4

Female Terminal

710000357

$5.85

PF4-F21

Fuse

710001613

$8.31

PF8

Housing

710002791

$4.22

PF8

Lock

710002792

$4.22

PF8

Wire Seal

278000218

$4.00

PF8

Female Terminal

710000890

$4.28

PF8

Female Terminal

710000918

$5.85

PF8-F1

Little Fuse, 20 Amperes

710000746

$7.78

POST ACC

Shrink Tubing, 6 mm

515177246

$0.99

POST ACC

Open Barrel

278000992

$2.06

POST FL

Shrink Tubing, 6 mm

515177246

$0.99

POST FL

Open Barrel

278000992

$2.06

PPS F

Housing

710001232

$13.39

PPS F

Lock

710001222

$1.93

PPS F

Seal

710001233

$2.93

PPS F

Terminal

710001229

$2.93

SB

Housing

710002177

$3.12

SB

Lock

710002043

$0.81

SB

Seal

278001482

$2.93

SB

Female Terminal

710001134

$5.85

SL 2X4

Label

710006075

Unavailable

SL 2X4

Housing

710002000

$6.73

SL 2X4

Terminal

710003047

$3.12

SL 2X4

Female Terminal

710005491

$1.57

SL M

Clip Bracket Connector (edge)

409210100

$1.94

SL M

Housing

710001927

$8.31

SL M

Lock

710006181

$3.12

SL M

Seal

710001233

$2.93

SL M

Seal Wire

710001332

$3.12

SL M

Terminal

710001224

$2.93

SL M

Terminal

710001223

$2.93

SL MODE SW

Housing

710002000

$6.73

SL MODE SW

Terminal

710003047

$3.12

SL MODULE LT

Female Housing ,16 Circuits

278003484

$16.39

SL MODULE LT

Seal

278003046

$0.85

SL MODULE LT

Seal Plug

710006362

$5.90

SL MODULE LT

Terminal

710005584

$2.09

SL MODULE ST

Female Housing ,16 Circuits

278003484

$16.39

SL MODULE ST

Female Terminal

515178018

$0.90

SL MODULE ST

Female Terminal 22 AWG

515178349

$1.76

SS

Female Housing, 2 Circuits

515177192

$7.25

SS

Lock

710001152

$4.00

SS

Wire Seal

710001163

$5.85

SS

Female Terminal

710001164

$6.79

STSW

Wire Seal

710000402

$4.28

STSW

Female Terminal

409012100

$4.28
