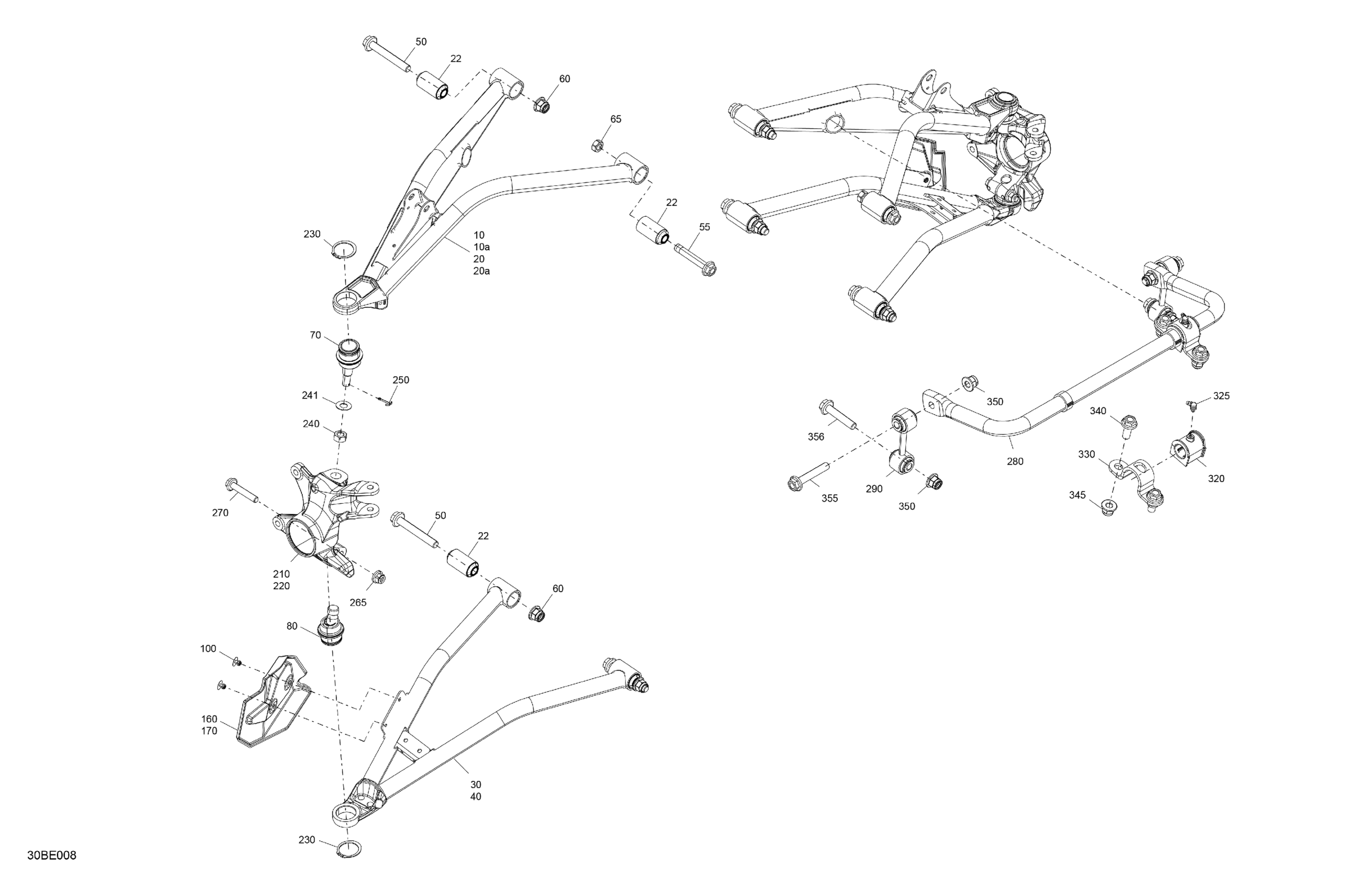

Can-Am Commander - 1000R EFI - XTP - 6YSA - Mineral Gray Satin - 64" Width CALI, 2025 Suspension - Front Components Diagram

Orange Crush, LH Upper Suspension Arm Balljoint Bushing Ass'y | Includes 10 to 10a This part replaces 706204602.

715010751

$284.99

LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203896.

715010749

$279.99

Orange Crush, RH Upper Suspension Arm Balljoint Bushing Ass'y | Includes 20 to 20a This part replaces 706204603.

715010760

$284.99

RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203897.

715010758

$279.99

Suspension Arm Bushing

706004828

$3.79

LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203908.

715010767

$279.99

Deep Black, RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203909.

715010774

$279.99

Hex. Flange Screw M12X1.75X85

250001168

$3.38

Hex. Flange Screw M12X1.75X85

250001168

$3.38

Elastic Flange Nut M12

250001195

$2.64

Elastic Flange Nut M12

250001195

$2.64

Ball Joint

706203084

$35.99

Ball Joint

706202045

$35.99

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

RH CV joint Guard

706202135

$11.01

LH CV joint Guard

706202134

$11.01

LH Front Knuckle

706202842

$211.99

RH Front Knuckle

706202844

$211.99

Circlip

293370035

$2.64

Hex Nut M12

250100239

$2.00

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 55

207605546

$2.11

Sway Bar Ass'y

706203649

$126.99

Sway Bar Double Link

706202937

$111.49

Stabilizer Bar Bushing

706204414

$8.43

Grease Elbow Fitting

293550085

$1.15

Clamp

706203437

$14.81

Hex. Flange Screw DIN.6921

250000951

$7.17

Elastic Flange Nut M12

250001195

$2.64

Elastic Flange Nut M12

250001195

$2.64

Hex. Flange Screw M12 X 70

250000858

$3.80

Flange Screw M12 X 60

250000857

$7.41
