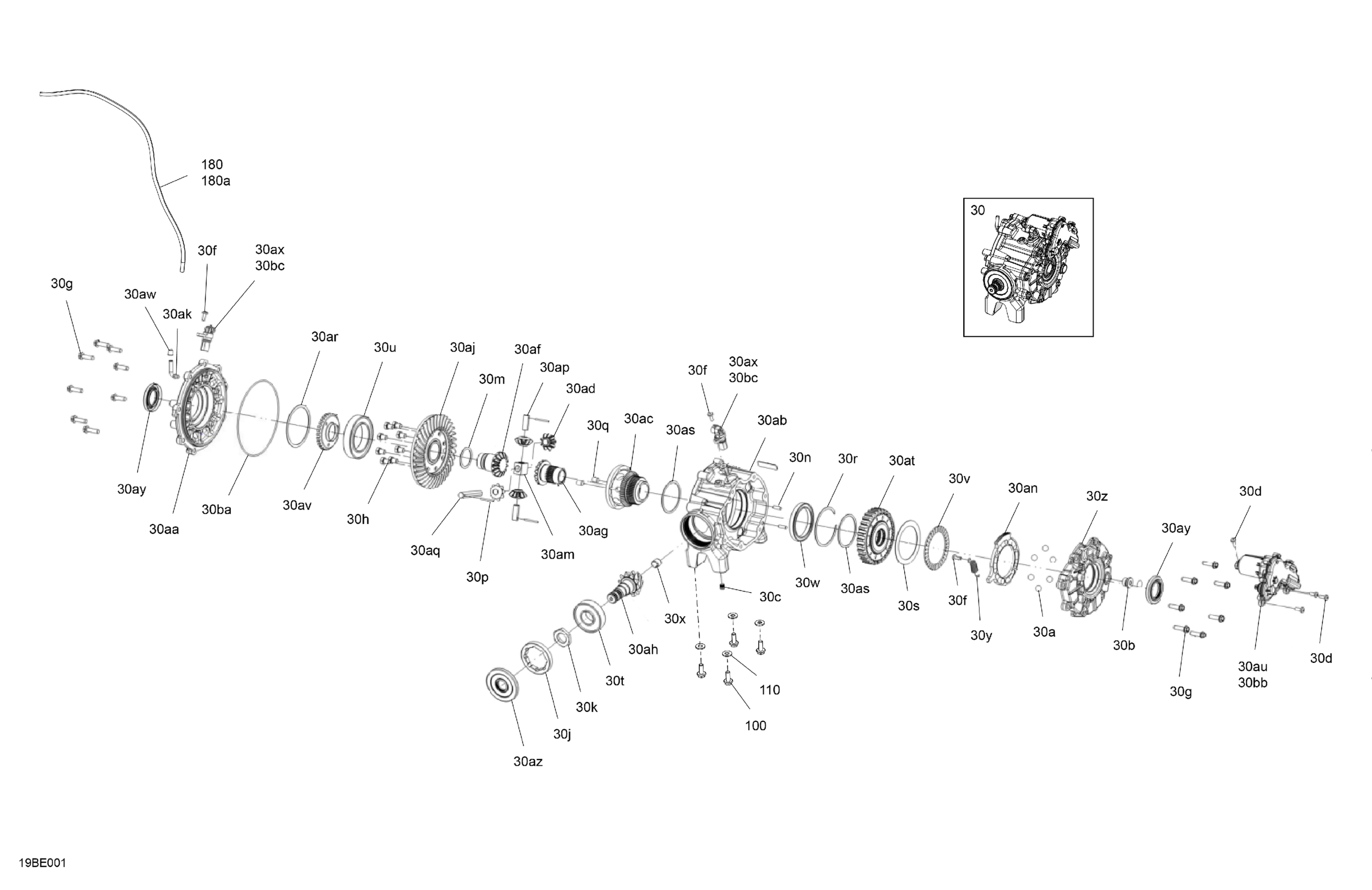

Can-Am Commander - 1000R EFI - XMR - 6SSA - Wildland Camo - 64" Width, 2025 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30bc

705403300

$1,686.24

30a

Ball

715900564

$5.38

30b

Fill Level Plug

705501889

$18.43

30c

Fill Level Plug M10

715900563

$27.66

30d

Torx Screw M6 X 16

705402845

$10.14

30f

Torx Screw M6 X 16

705402845

$10.14

30g

Bolt

705501886

$6.75

30h

Hex Screw 3/8 X 0.500

715900561

$13.83

30j

Nut M75 X 1.5

705401819

$23.05

30k

Nut M27 X 1.5

705401820

$23.05

30m

Thrust Washer 1,510 X 1,875 X 0,032

715900656

$27.66

30n

Dowel Pin

715900559

$6.45

30p

Dowel Pin 3 X 36

715900655

$29.97

30q

Dowell Pin

715900618

$20.74

30r

Retainin Ring

715900558

$27.66

30s

Thrust Washer

715900557

$27.66

30t

Ball Bearing

705401821

$30.39

30u

Ball Bearing 60 X 95 X 18

715900556

$41.32

30v

Needle Bearing

715900555

$17.66

30w

Ball Bearing 65 X 85 X 10

715900554

$89.77

30x

Plain Bearing 1615 DP4

715500495

$83.82

30y

Spring

715900553

$27.66

30z

RH Cover

715900683

$152.28

30aa

LH Cover

715900684

$143.05

30ab

Housing

715900674

$133.82

30ac

Housing

715900713

$110.74

30ad

Diff Pinion Gear 9T

715900714

$78.43

30af

Gear Output 14T

715900715

$113.05

30ag

Gear Output 14T

715900716

$113.05

30ah

LH Pinion, 10T Spiral, Bevel

715500493

$193.82

30aj

Spiral Bevel Gear, 36T

715500494

$383.05

30ak

Vent Valve

705401935

$14.37

30am

Coupler, Pin

715900541

$64.58

30an

Ramp Ball

715900540

$73.82

30ap

Pin Diff Pinion 0.5 x 1.3125

715900711

$36.89

30aq

Pin Diff Pinion 0.5 X 3.125

715900712

$36.89

30ar

Shim 74.50 X 66.00

715900539

$166.12

30as

Shim 3.735 X 3.300

715900538

$258.43

30at

Clutch Pack

715900537

$226.12

30au

Actuator Ass'y

715900640

$452.28

30av

Tone Ring 30T

715900534

$32.28

30aw

Vent Cap 5/16

715900533

$6.75

30ax

Speed Sensor

715900532

$96.89

30ay

Oil Seal

715900531

$27.66

30az

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

30ba

O-Ring

715900530

$11.83

30bb

O-Ring

715900601

$10.98

30bc

O-Ring

715900600

$11.83

100

Hex. Flange Screw M10 X 25

207502546

$1.74

110

Conical Spring Washer 10 mm

234201474

$1.39

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

180a

Not Available As Spare Parts

XXX

Unavailable
