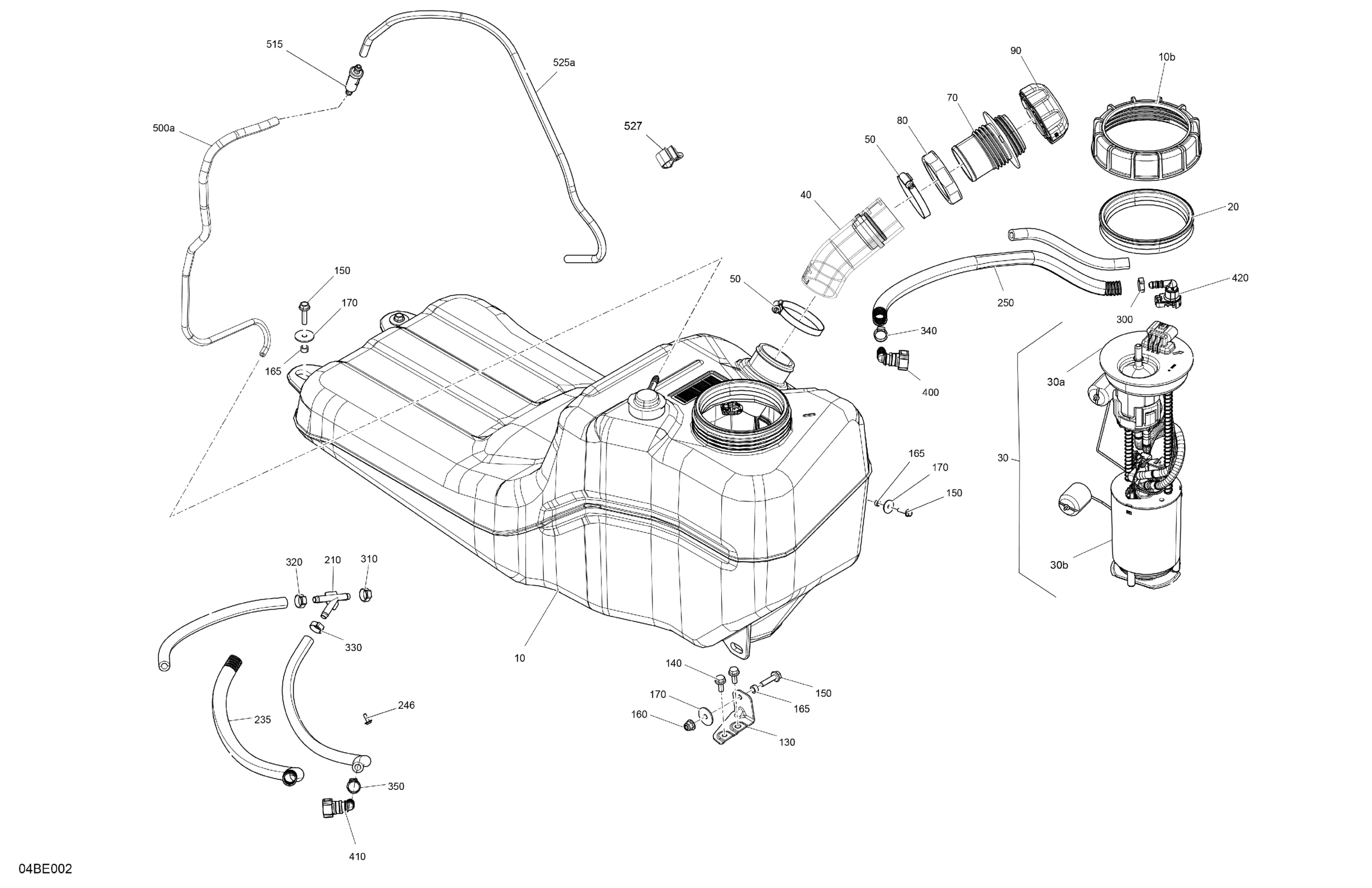

Can-Am Commander - 1000R EFI - DPS - 6PSB - Compass Green - 60" Width, 2025 Engine - Fuel Diagram

Description

Price

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$401.51

10b

Special Nut M130

250100062

$17.52

Pump Gasket

293250514

$15.57

Fuel Pump | Includes 30 to 30b

709001056

$349.97

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$138.43

Hose Fuel Tank Ass'y

709001206

$83.05

Norma Clamp

293650081

$9.87

Filler Neck

709000867

$14.75

Fuel Filler Neck Nut

293600206

$10.02

Fuel Cap

709000868

$32.28

130

Fuel Tank Support

709001453

$5.52

140

Hex. Flange Screw M6 X 16

207661644

$0.61

150

Hex. Flange Screw M6 X 25

207662554

$1.48

160

Hex. Flange Elastic Nut M6

233261466

$1.66

165

Spacer

293900135

$1.37

170

Washer M6

250200029

$1.83

210

Y Fitting

709001329

$10.15

235

Tubing 16 Mm 1000Mm Long

219704408

$6.23

246

Screw PT Type K-50 X 16

250000959

$1.74

250

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp, 15.3-706R

293650047

$2.64

310

Crimp Clamp, 15.3-706R

293650047

$2.64

320

Crimp Clamp, 15.3-706R

293650047

$2.64

330

Crimp Clamp, 15.3-706R

293650047

$2.64

340

Crimp Clamp, 15.3-706R

293650047

$2.64

350

Crimp Clamp, 15.3-706R

293650047

$2.64

400

Quick Disconnect

275500921

$12.61

410

Quick Disconnect

275500921

$12.61

420

Quick Disconnect

275500921

$12.61

500a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

515

Filter

709001120

$8.29

525a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

527

Tie Rap Mount (screwable)

515176795

$5.11
