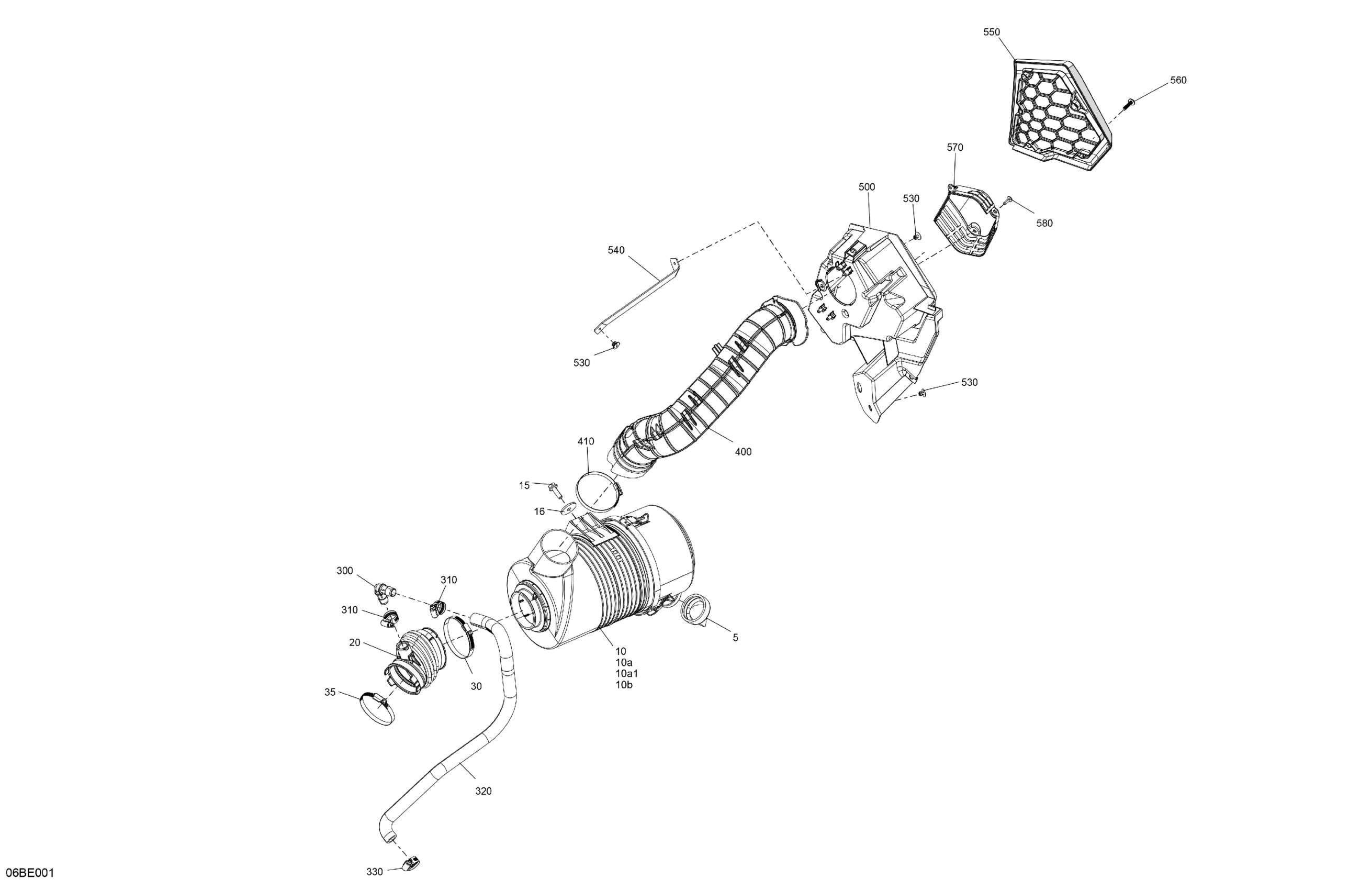

Can-Am Commander - 1000R EFI - DPS - 6PSA - Compass Green - 60" Width CALI, 2025 Engine - Air Intake Diagram

Description

Price

Duct Bill Valve

715003114

$12.09

Air Box | Includes 10 to 10b

707801034

$175.34

10a

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$20.12

10a1

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$20.12

10b

Air Filter

715900422

$49.22

Hex. Flange Screw M8 X 25

207682544

$1.03

Flat Washer M8

250200158

$2.00

Air Intake Adapter

707800754

$26.09

Norma Clamp

293650096

$3.00

Norma Clamp

293650091

$4.46

300

Elbow Fitting 90

293710155

$7.72

310

Tridon Gear Clamp

293650173

$2.82

320

Blow-By Hose

707800755

$26.09

330

Tridon Gear Clamp

293650173

$2.82

400

Inlet Hose

707800756

$43.25

410

Norma Clamp

293650096

$3.00

500

Air Inlet Box

707800982

$33.55

530

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

540

Duct Support

707801109

$4.78

550

Air Intake Grid

707800751

$43.25

560

Hex. Screw Pt K60 X 25

250000980

$2.00

570

Baffle

707800762

$17.13

580

Torx Screw K50 X 16

250000720

$1.60
