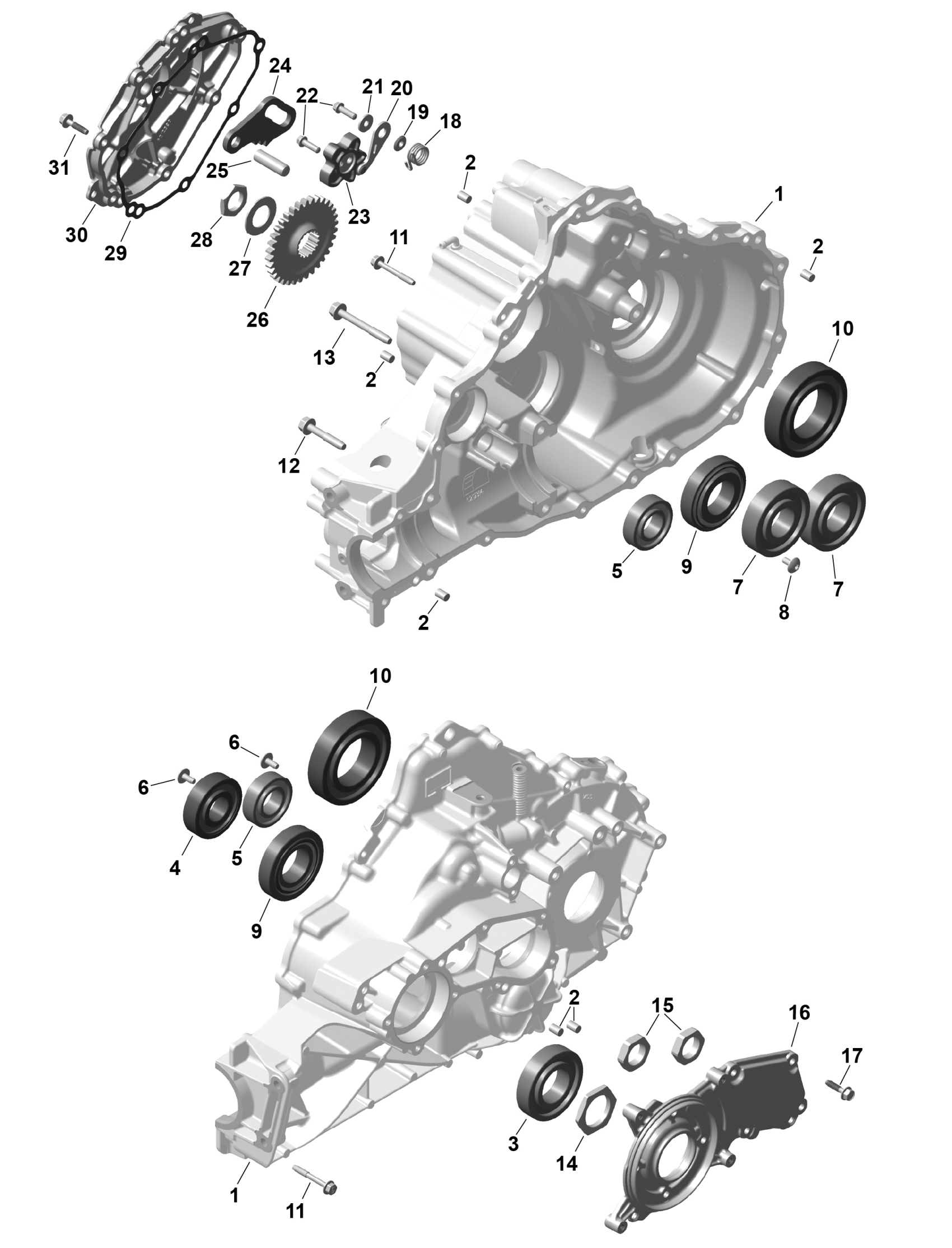

Can-Am Defender PRO - HD10 - LTD CAB - 9HTA - Dusty Navy Satin - 65" Width, 2026 ROTAX - GearBox 1 Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Ball Bearing

420632745

$25.99

4

Ball Bearing

420832098

$28.49

5

Ball Bearing

420232771

$13.99

6

Torx Screw M6X13

420240051

$0.90

7

BALL BEARING

420932593

$36.99

8

Hex Flat Head Screw M6 X 13 T30

420241537

$3.17

9

Not Available As Spare Parts

XXX

Unavailable

10

Ball Bearing

420632871

$56.99

11

Torx Flange Screw M6 X 45 | Included in gasket kit

420441922

$1.79

12

Torx Flange Screw M8 X 45

420441932

$1.79

13

Torx Flange Screw M8 X 65

420441942

$2.93

14

Hex Nut M34 X 1.5

420842606

$7.73

15

Hex. Nut M24

420242012

$16.33

16

Bearing Cover

420212381

$73.99

17

Torx Flange Screw M6 X 25

420441952

$1.79

18

Spring

420239566

$2.61

19

Step Ring

420227717

$12.12

20

Index Lever Ass'y

420248528

$46.99

21

Washer 6.2/18/2

420827303

$5.76

22

Torx Flange Screw M6 X 20

420441835

$3.17

23

Index Washer

420248024

$62.49

24

Parking Lock Lever

420657440

$78.99

25

Needle Pin

420249190

$14.81

26

Gear

420634938

$53.99

27

Spring Washer

420245860

$7.41

28

Nut

420242879

$7.65

29

Gasket | Included in gasket set gearbox

420450410

$12.16

30

Gear Box Cover

420212391

$56.99

31

Torx Flange Screw M6 X 25

420441952

$1.79
