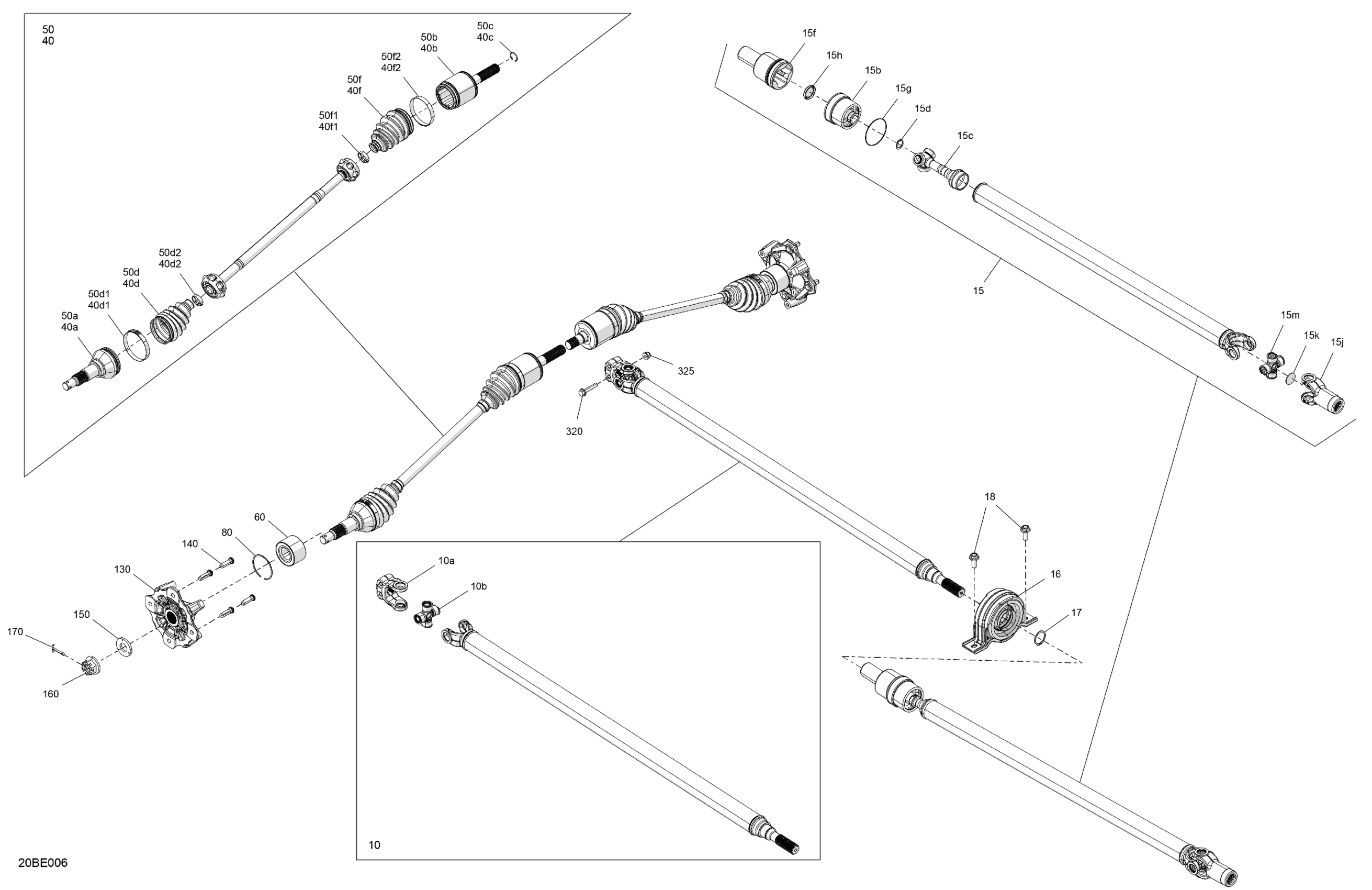

Can-Am Commander Max - 1000R EFI - XT - 6KSA - Fiery Red Metallic - 64" Width CALI, 2025 Drive - Front - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10c

705403684

$244.58

10a

Connecting Yoke 18Th

715900938

$23.05

10b

Universal Joint Ass'y

715900911

$46.12

10c

Snap Ring | Not Shown

715900945

$2.75

15

Drive Axle Ass'y | Includes 15 to 15m

705403685

$244.58

15a

Large Oetiker Clamp | Not Shown

715900950

$7.37

15b

Dust cover | Not shown

219800426

$27.66

15c

Three Pin Joint | Not shown

219800433

$32.28

15d

Circlip | Not shown

219800427

$1.26

15f

Joint

715900949

$59.97

15g

O-Ring | Not shown

219800429

$6.45

15h

Cover

715900948

$12.91

15j

Slip Yoke

715900947

$23.05

15k

Cover

715900946

$4.60

15m

Universal Joint Ass'y

715900911

$46.12

16

Ball Bearing Ass'y

705403522

$46.12

17

Snap Ring

293370098

$3.11

18

Hex. Flange Screw M10 X 20

207502046

$1.74

40

RH Front Half Shaft | Includes 40 to 40f2

705402717

$232.74

40a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

40b

RH Plunging Joint

715900441

Unavailable

40c

Circlip Joint | Not shown

705401349

$5.38

40d

Boot Kit, Wheel Side

705401345

$41.51

40d1

Oetiker Clamp

715900282

$4.39

40d2

Oetiker Clamp, Small

715900283

$4.39

40f

Boot Kit, Différential Side

705401355

$41.51

40f1

Oetiker Clamp, Small

715900261

$4.39

40f2

Oetiker Clamp, Large

715900262

$7.84

50

LH Front Half Shaft | Includes 50 to 50f2

705402718

$233.82

50a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

50b

LH Plunging Joint

715900442

Unavailable

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401345

$41.51

50d1

Oetiker Clamp

715900282

$4.39

50d2

Oetiker Clamp, Small

715900283

$4.39

50f

Boot Kit, Différential Side

705401355

$41.51

50f1

Oetiker Clamp, Small

715900261

$4.39

50f2

Oetiker Clamp, Large

715900262

$7.84

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

130

Wheel Hub

705502338

$115.35

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
