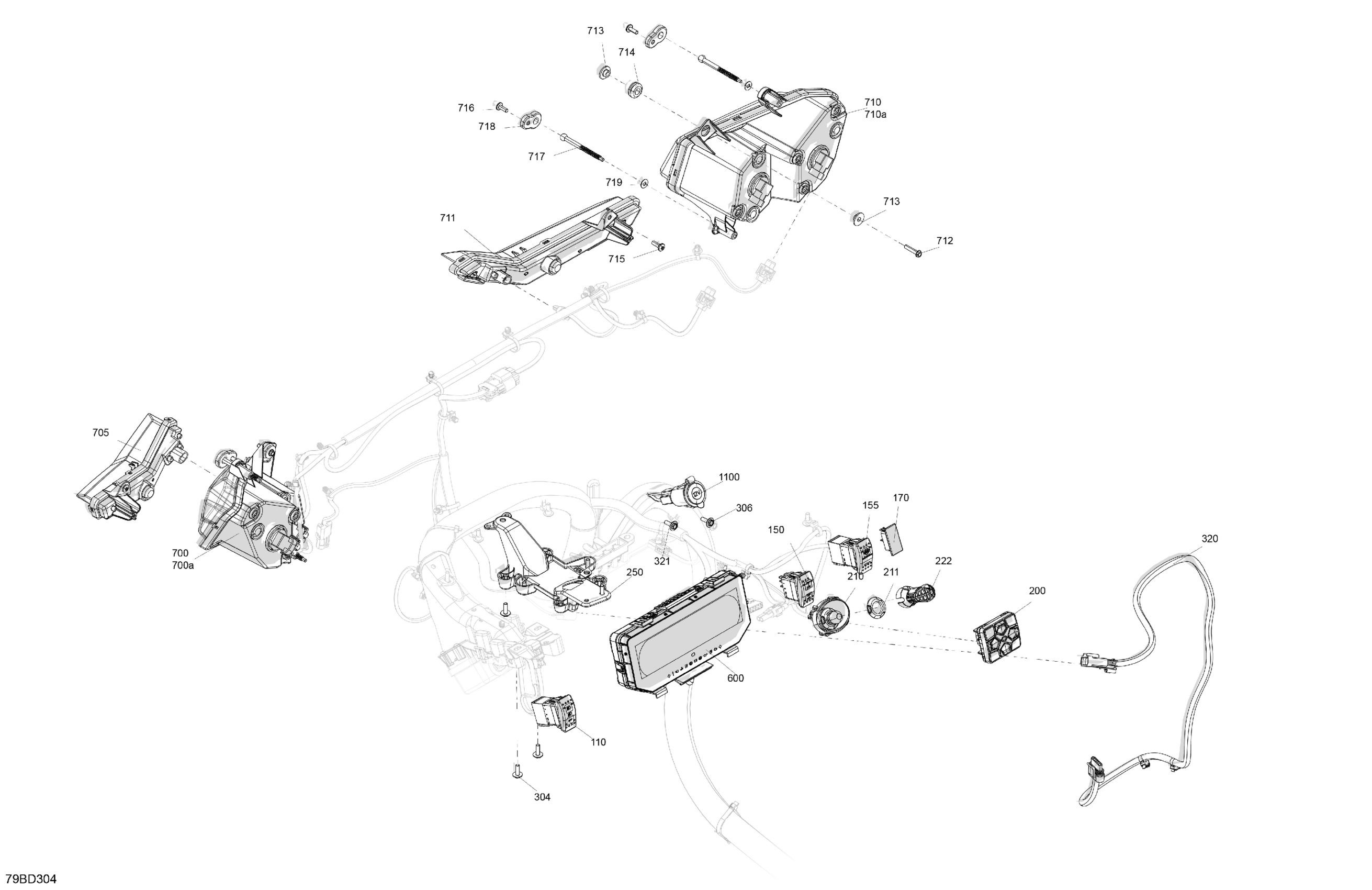

Can-Am Commander 1000R EFI - XT - 6GRA - Fiery Red Metallic - 64" Width CALI, 2024 Electric - Front Section Diagram

Description

Price

110

Light Switch

710004492

$47.49

150

Switch 2X4

710005489

$31.99

155

Differential Lock Switch

710005470

$46.49

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

200

Multifonction Switch

710006650

$87.99

210

Terminal DESS One Wire

515179305

$74.99

211

Specialized Nut

278004274

$3.28

214

Start-Stop Button | Not Shown

710005213

$60.49

222

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

250

Housing Support

710005672

$10.49

304

Screw PT Type K-50 X 16

250000959

$2.11

306

Screw PT Type K-50 X 16

250000959

$2.11

320

Trottle Pedal Harness

710005929

$239.99

321

Screw PT Type K-50 X 16

250000959

$2.11

600

MID Multifunction Gauge

710008295

$379.99

700

LH Headlamp | Includes 700 to 700a

710008230

$199.99

700a

Bulb 12V 55W

715900141

$41.49

705

LH Auxiliary LED Headlight

710006374

$194.99

710

RH Headlamp | Includes 710 to 710a

710008231

$199.99

710a

Bulb 12V 55W

715900141

$41.49

711

RH Auxiliary LED Headlight

710006375

$194.99

712

Torx Screw M5 X 20

250000724

$1.69

713

Shoulder Bushing

710004749

$2.69

714

Overmolded Grommet

293720130

$4.69

715

Screw PT Type K-50 X 16

250000959

$2.11

716

Hex. Flange Screw M5x10

207551056

$1.99

717

Ajustment Screw

710005837

$6.35

718

Ball Socket

293900157

$9.59

719

O-Ring

293300192

$4.92

1100

12V Power Outlet

710005374

$33.99
