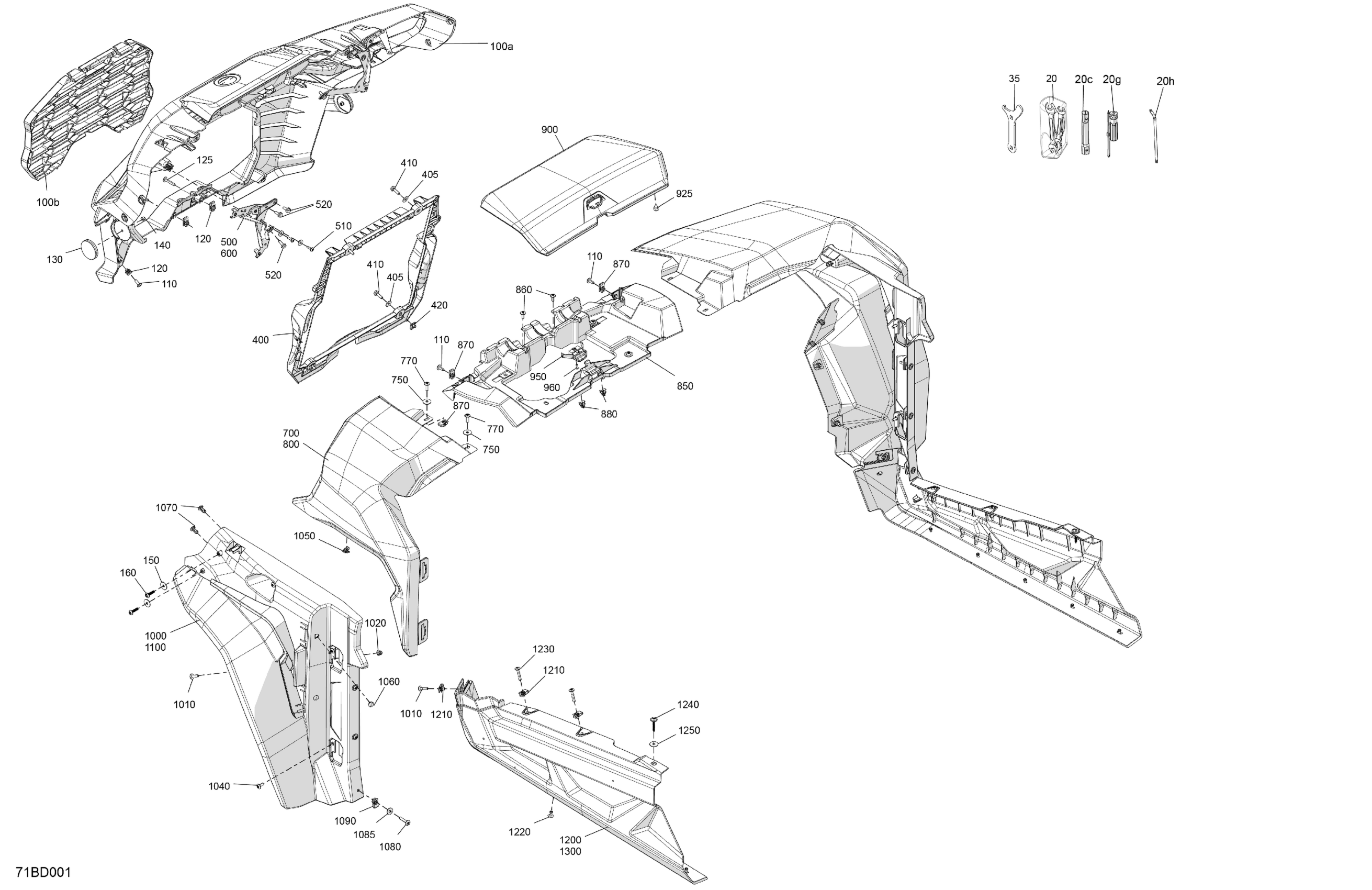

Can-Am Commander 700 EFI - XT - 9ARC - Timeless Black Metallic - 60" Width CALI, 2024 Body - Front Section Diagram

Description

Price

Tool Kit | Includes 20 to 20h

704700179

$70.99

20c

Socket Wrench 14/16MM

529000085

$6.55

20g

Screw Driver

529000021

$3.29

20h

Torx Key T30

708200340

$1.28

Adjustment Wrench

529000057

$4.29

100a

Front Fascia

705015069

$229.99

100b

Grille

705015071

$219.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

125

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

130

Amber Reflector

705017809

$14.49

140

Elastic Flange Nut M5

233251494

$2.11

150

Flat Washer M6.6 X 22

250200162

$2.32

160

Hex. Screw Pt K60 X 25

250000980

$2.11

400

Front Radiator Deflector

705015160

$52.99

405

Flat Washer 6 mm

234062410

$0.77

410

Hex. Flange Screw M6 X 20

207662044

$2.00

420

Panel Nut M6 X 1.0

250001173

$1.59

500

LH Headlight Support

705015072

$214.99

510

Screw PT Type K-50 X 16

250000959

$2.11

520

Hex. Flange Screw M6 X 16

207661644

$0.74

600

RH Headlight Support

705015073

$214.99

700

Timeless Black, LH Front Fender

705018854

$204.99

750

Flat Washer M6.6 X 22

250200162

$2.32

770

Torx Screw M6 X 20

250000722

$1.68

800

Timeless Black, RH Front Fender

705018856

$204.99

850

Front Multi Purpose Support

705015163

$43.99

860

Torx Truss Screw M6 X 16

250000721

$1.69

870

Panel Nut M6 X 1.0

250100198

$2.11

880

Clip

517306478

$1.09

900

Hood

705016440

$104.99

925

Rubber Bumper

293830005

$8.09

950

Glove Box Latch

264000133

$21.99

960

Screw K40 X 10

250001119

$2.40

1000

LH Front Mud Guard

705015060

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1050

Clip

517306478

$1.09

1060

Black, Dart 10 mm

293730060

$4.55

1070

Tuflok Plastic Rivet

293150230

$1.47

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1085

Stainless Steel Flat Washer

234062670

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mud Guard

705015061

$56.99

1200

LH Front Rocker Panel

705016938

$79.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

1220

Pop Rivet 3/16”

293150101

$2.09

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

1250

Flat Washer M6.6 X 22

250200162

$2.32

1300

RH Front Rocker Panel

705016939

$77.49
