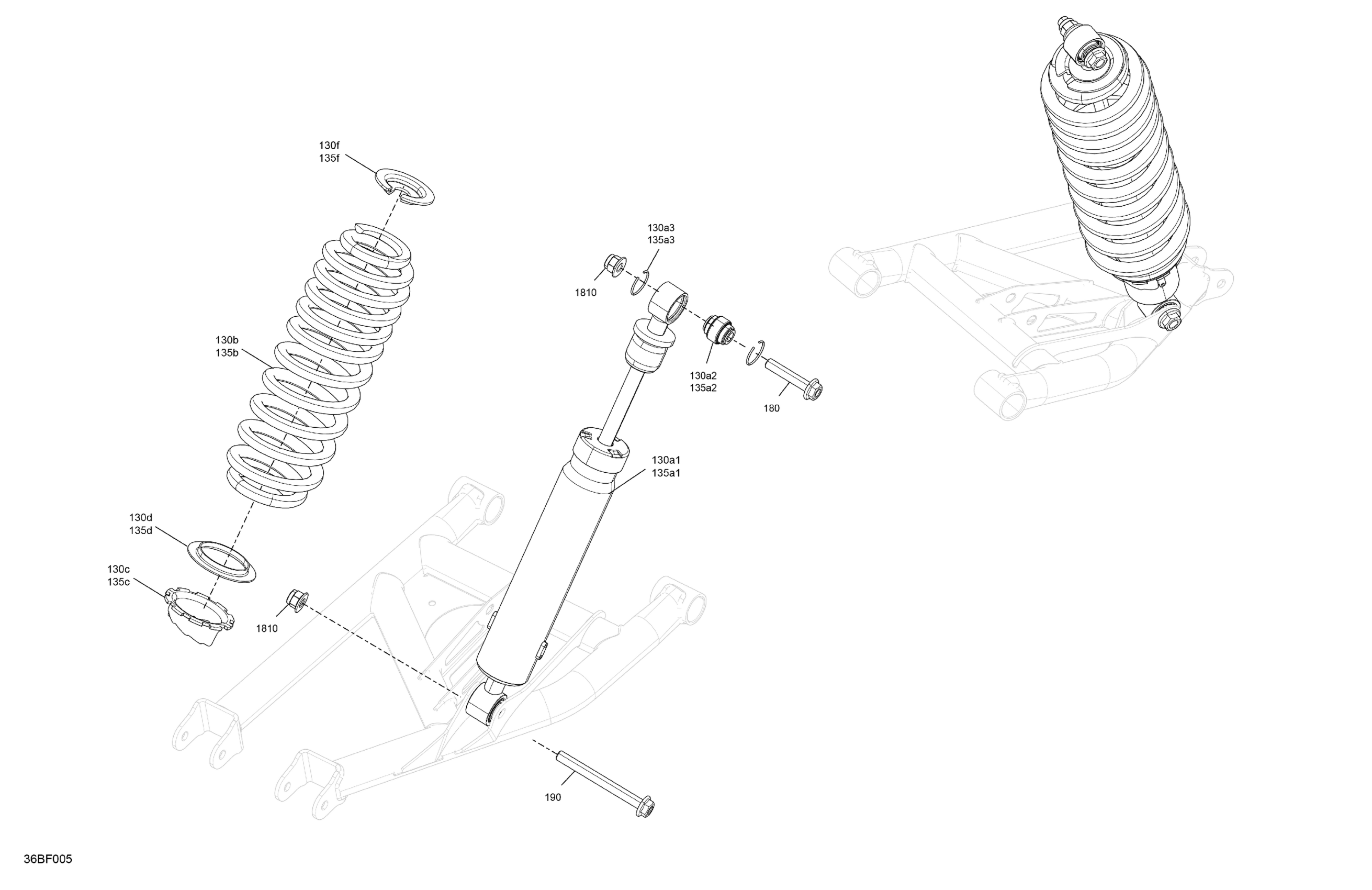

Can-Am Commander - 1000R EFI - DPS - 6PTB - Compass Green - 60" Width, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a1

Rear Shock Absorber

706004558

$188.78

130a2

Ball Joint

706004078

$44.00

130a3

Internal Retaining Ring

293370157

$1.89

130b

Deep Black, Compression Spring

706005169

$102.21

130c

Adjustment Ring

706000910

$13.45

130d

Wear Ring

706005387

$6.73

130f

Spring Cup

706001894

$13.78

135a1

Rear Shock Absorber

706004558

$188.78

135a2

Ball Joint

706004078

$44.00

135a3

Internal Retaining Ring

293370157

$1.89

135b

Deep Black, Compression Spring

706005169

$102.21

135c

Adjustment Ring

706000910

$13.45

135d

Wear Ring

706005387

$6.73

135f

Spring Cup

706001894

$13.78

180

Flange Screw M12 X 60

250000857

$6.99

190

Flange Screw M12 X 60

250000857

$6.99

1810

Elastic Flange Nut M12

250001195

$2.46
