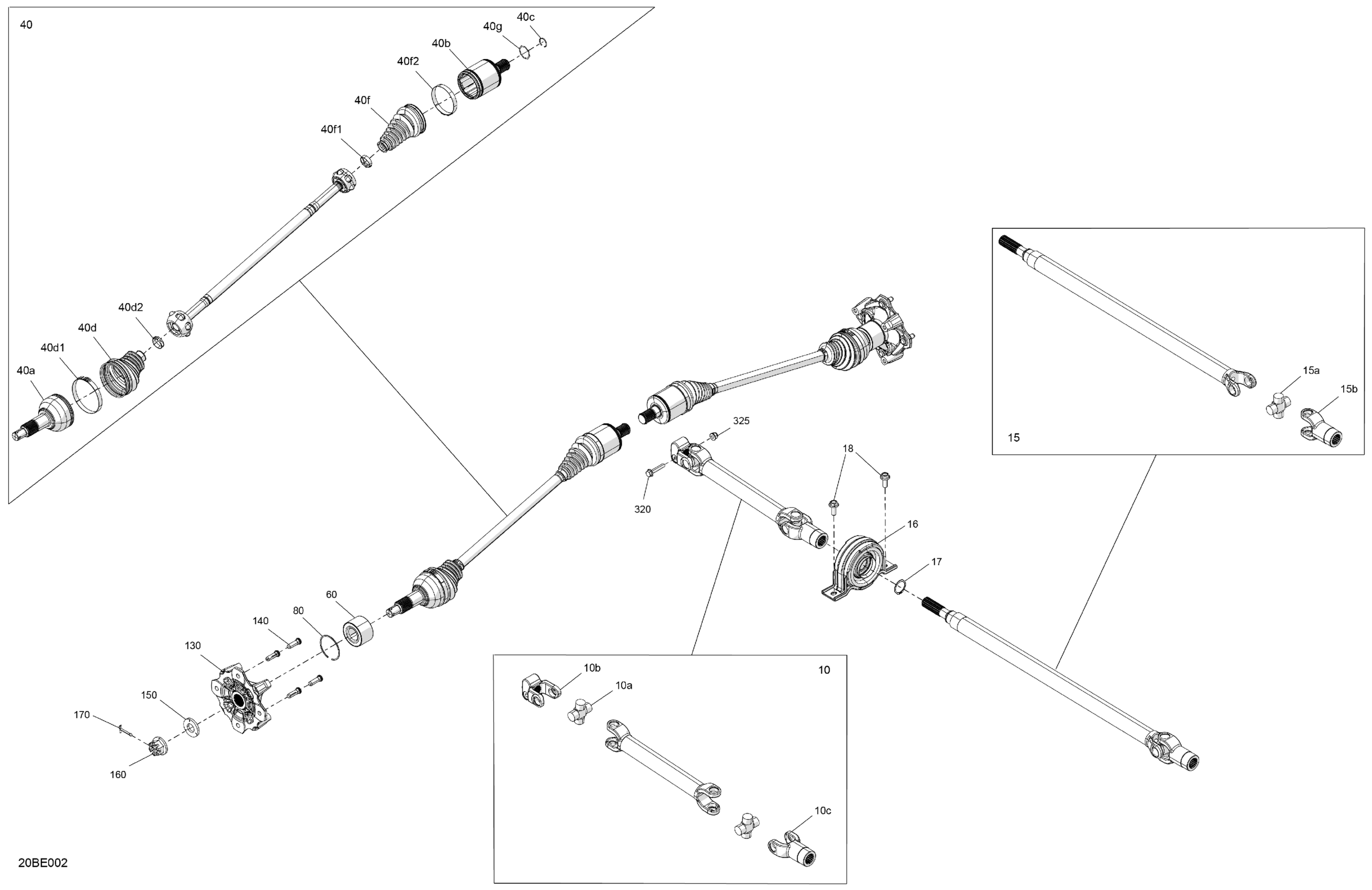

Can-Am Commander - 1000R EFI - XMR - 6SSA - Wildland Camo - 64" Width, 2025 Drive - Front - Common Parts Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10c

705403289

$254.49

10a

U-Joint Cross Kit

715900829

$78.49

10b

Fixed Yoke

715900400

$59.49

10c

Yoke

715900401

$35.99

Drive Axle Ass'y | Includes 15 to 15b

705403290

$254.49

15a

U-Joint Cross Kit

715900829

$78.49

15b

Yoke

715900401

$35.99

Ball Bearing Ass'y

705403522

$47.49

Snap Ring

293370098

$3.17

Hex. Flange Screw M10 X 20

207502046

$2.11

Performance CV Axle | Includes 40 to 40g

705402282

$243.99

40a

CV Joint

715900619

$259.49

40b

LH Plunging Joint

715900568

$275.49

40c

Circlip

715900569

$5.50

40d

Boot Kit, Wheel Side

705401354

$42.49

40d1

Oetiker Clamp, Large

715900260

$10.33

40d2

Oetiker Clamp, Small

715900261

$5.29

40f

Boot Kit, Différential Side

705401355

$42.49

40f1

Oetiker Clamp, Small

715900261

$5.29

40f2

Oetiker Clamp, Large

715900262

$10.33

40g

O-ring

715900580

$2.51

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

130

Wheel Hub

705502338

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
