Description

Price

12

Norma Spring Clamp

293650214

$15.89

20

Screw PT Type K-50 X 16

250000959

$2.11

80

Accelerator Pedal

707001166

$274.99

90

Bushing

707000848

$1.35

95

Push Nut

250100031

$7.29

100

Hex. Flange Nut

233081436

$2.00

105

Vibration Damper

707001169

$42.99

108

Vibration Damper

707003563

$154.99

109

Hex. Flange Screw M10 X 135

230603546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

111

Hex. Flange Screw M6 X 20

207662044

$2.00

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

115

Rubber Mount

707002590

$58.49

116

Hex. Flange Screw M6 X 20

207662044

$2.00

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

118

O-Ring

293300215

$0.90

119

Hex. Flange Screw, M8 X 65

207686544

$13.16

122

Flat Washer M8

250200158

$2.11

123

Flat Washer M8

250200180

$2.29

125

Hex. Flange Nut

233081436

$2.00

130

Rear Link Bracket

707002290

$30.99

140

LH Rear Engine Support

707003338

$15.49

145

RH Rear Engine Support

707003340

$18.99

146

Hex Flange Screw M8 X 20

207582046

$1.48

148

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex Flange Screw M8 X 20

207582046

$1.48

200

CVT Cooling Duct

706600350

$58.99

203

Norma Clamp

514052924

$14.22

205

Adapter

706600349

$24.49

206

Acoustic Insulation

706600364

$77.99

210

Norma Clamp

514052924

$14.22

220

Adapter

706600352

$42.49

223

Acoustic Insulation

706600363

$77.99

224

CVT Cooling Duct

706600351

$58.99

225

Adapter

706600353

$42.49

226

Adapter

706600386

$36.99

227

Norma Clamp

514052924

$14.22

228

Norma Clamp

514052924

$14.22

229

Norma Clamp

514052924

$14.22

230

Norma Clamp

514052924

$14.22

231

Tuflok Plastic Rivet

293150230

$1.47

240

CVT Filter

706600417

$44.99

241

Gasket

706600191

$41.99

243

Gasket

706600231

$12.16

245

Hex. Screw Pt K60 X 25

250000980

$2.11

250

Tuflok Plastic Rivet

293150230

$1.47

265

CVT Cooling Duct Out

706600192

$33.99

275

Norma Gear Clamp

514052983

$15.89

280

Norma Clamp

514052924

$14.22

310

Air Inlet Box

706600360

$43.99

320

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

340

Baffle

706600286

$26.49

350

Torx Screw K50 X 16

250000720

$1.69

360

Support

706600237

$6.49

370

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

470

Shifting Cable

707002000

$68.99

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

500

LH Bracket

707002099

$24.99

501

RH Bracket

707002100

$24.99

502

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

503

Hex. Elastic Flange Nut M8

233281416

$1.48

505

Cable Support

707002098

$16.87

506

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

510

Lower Lever Arm

707002093

$18.49

513

Bushing

707001376

$5.24

514

Flat Washer 6 mm

234062410

$0.77

515

Hex. Flange Screw M6 X 50

207665044

$4.12

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

520

Upper Lever Arm

707000711

$39.99

521

Flanged Bushing

707000869

$2.89

522

Bushing

707001376

$5.24

523

Hex. Flange Screw M6 X 50

207665044

$4.12

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$8.49

541

Hex. Jam Nut M8

232180491

$7.51

650

Hose 6.35MM ID

219704534

$25.99

650a

Not Available As Spare Parts

XXX

Unavailable

652

Tubing 16 Mm 1000Mm Long

219704408

$7.49

660

Oetiker Clamp

293650042

$3.09

700

Hose Support

707002116

$13.49

1410

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1415

Insulator Pad

710000073

$11.12

1420

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.11

1500

Lever Indicator

707900603

$26.99

1505

Torx Head Screw M6 X 16

250000717

$2.11

1510

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1520

Panel Nut M6 X 1.0

250100198

$2.11

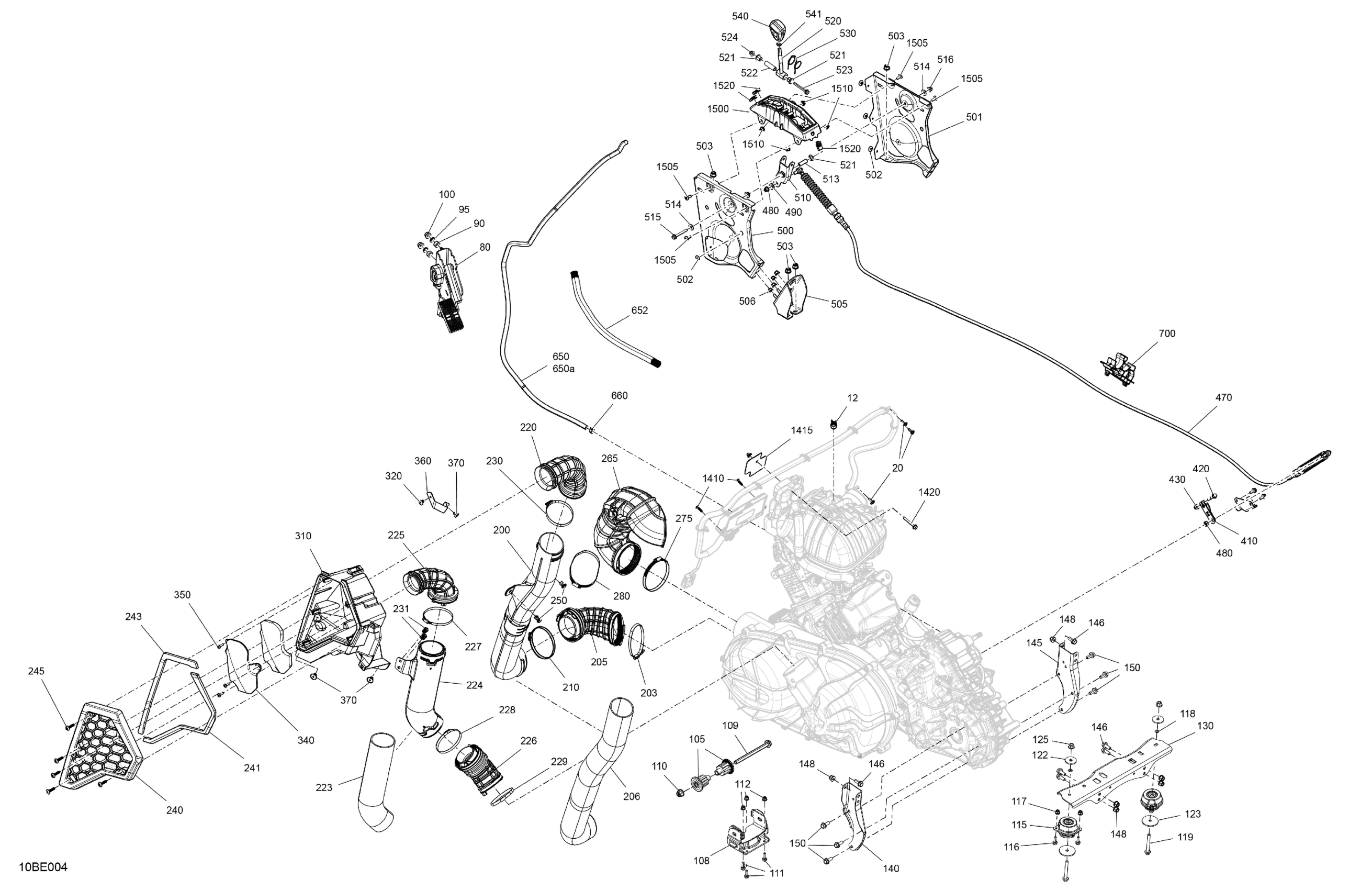

Can-Am Commander - 1000R EFI - DPS - 6PSA - Compass Green - 60" Width CALI, 2025 Engine - System Diagram

Norma Spring Clamp

Screw PT Type K-50 X 16

Accelerator Pedal

Bushing

Push Nut

Hex. Flange Nut

Vibration Damper

Vibration Damper

Hex. Flange Screw M10 X 135

Hex. Flange Elastic Nut M10

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Rubber Mount

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

O-Ring

Hex. Flange Screw, M8 X 65

Flat Washer M8

Flat Washer M8

Hex. Flange Nut

Rear Link Bracket

LH Rear Engine Support

RH Rear Engine Support

Hex Flange Screw M8 X 20

Hex. Elastic Flange Nut M8

Hex Flange Screw M8 X 20

CVT Cooling Duct

Norma Clamp

Adapter

Acoustic Insulation

Norma Clamp

Adapter

Acoustic Insulation

CVT Cooling Duct

Adapter

Adapter

Norma Clamp

Norma Clamp

Norma Clamp

Norma Clamp

Tuflok Plastic Rivet

CVT Filter

Gasket

Gasket

Hex. Screw Pt K60 X 25

Tuflok Plastic Rivet

CVT Cooling Duct Out

Norma Gear Clamp

Norma Clamp

Air Inlet Box

Black, Pop Rivet 3/16 X ,550

Baffle

Torx Screw K50 X 16

Support

Black, Pop Rivet 3/16 X ,550

Lever

Hex. Flange Screw M6 X 35

Hex. Flange Elastic Nut M6 x 1.0

Shifting Cable

Hex. Elastic Stop Nut M8

Flat Washer 10 mm

LH Bracket

RH Bracket

Black, Pop Rivet 3/16 X ,425

Hex. Elastic Flange Nut M8

Cable Support

Hex. Flange Elastic Nut M6 x 1.0

Lower Lever Arm

Bushing

Flat Washer 6 mm

Hex. Flange Screw M6 X 50

Hex. Flange Elastic Nut M6 x 1.0

Upper Lever Arm

Flanged Bushing

Bushing

Hex. Flange Screw M6 X 50

Hex. Flange Elastic Nut M6 x 1.0

Lever Arm Spring

Lever Trim
