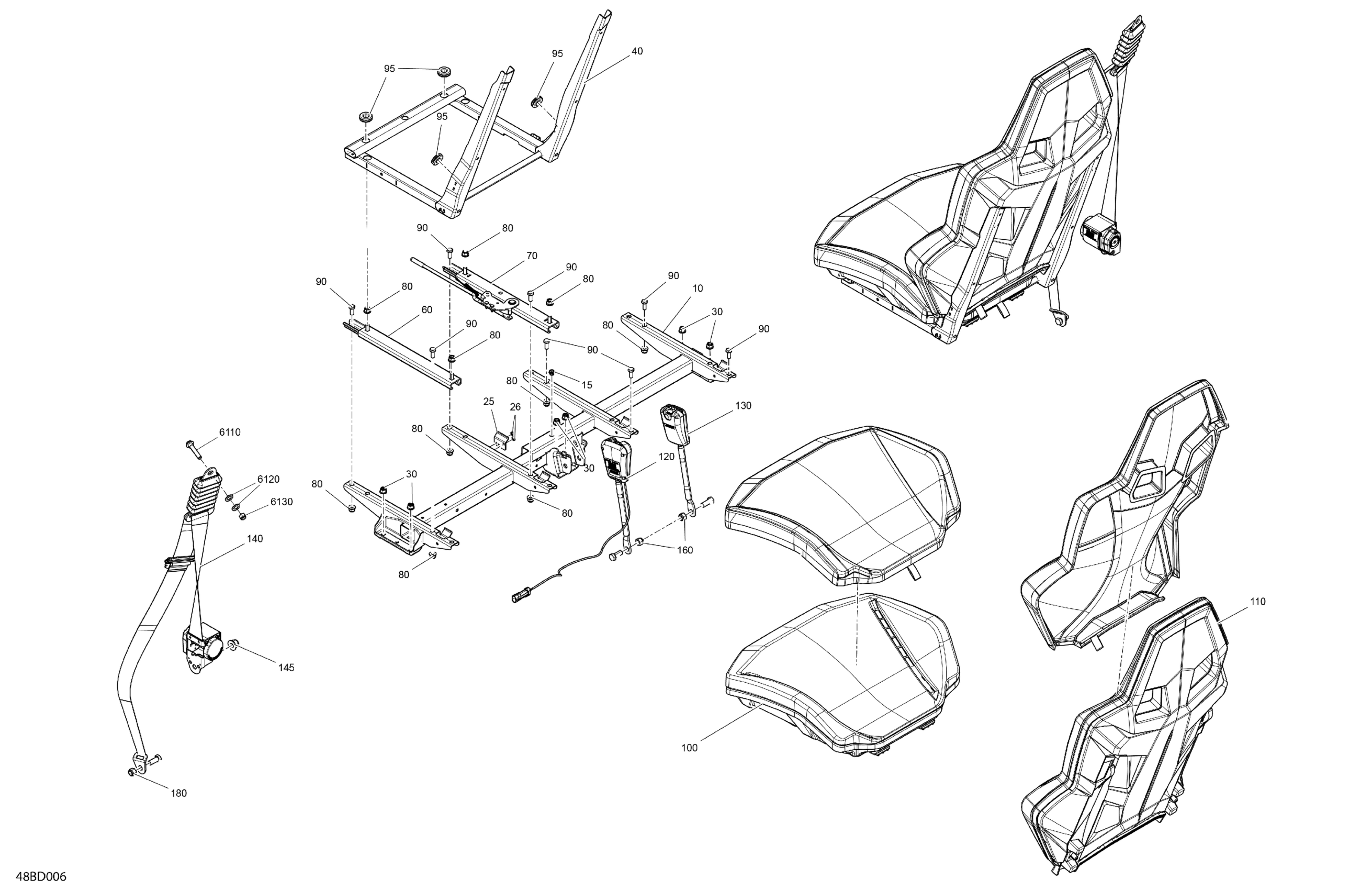

Can-Am Commander 1000R EFI - XTP - 6YRA - Macchiato Satin - 64" Width CALI, 2024 Body - Seat Diagram

Description

Price

Seat Member

708003469

$124.99

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Seat Stopper

708003672

$2.59

Pop Rivet 3/16"

390402200

$0.30

Hex. Flange Elastic Nut M8

233281414

$1.31

Seat Frame

708002423

$296.24

LH Seat Rail

708003314

$52.99

RH Slide

708003316

$34.99

Hex. Flange Elastic Nut M8

233281414

$1.31

Hex. Screw M8 X 20

207182044

$0.70

Grommet

517303756

$3.61

100

Cushion Ass'y

708003426

$249.99

110

Backrest Ass'y

708003693

$349.99

120

Driver Buckle

708002331

$70.99

130

Passenger Buckle

708002329

$60.42

140

Safety Belt

708003378

$220.87

145

Elastic Flange Nut M12

233221416

$2.67

160

Lock Nut Nylon 7/16

250100183

$1.88

180

Lock Nut Nylon 7/16

250100183

$1.88

6110

Safet Belt Screw

708002443

$16.39

6120

Position Washer

708000891

$0.97

6130

Lock Nut Nylon 7/16

250100183

$1.88
