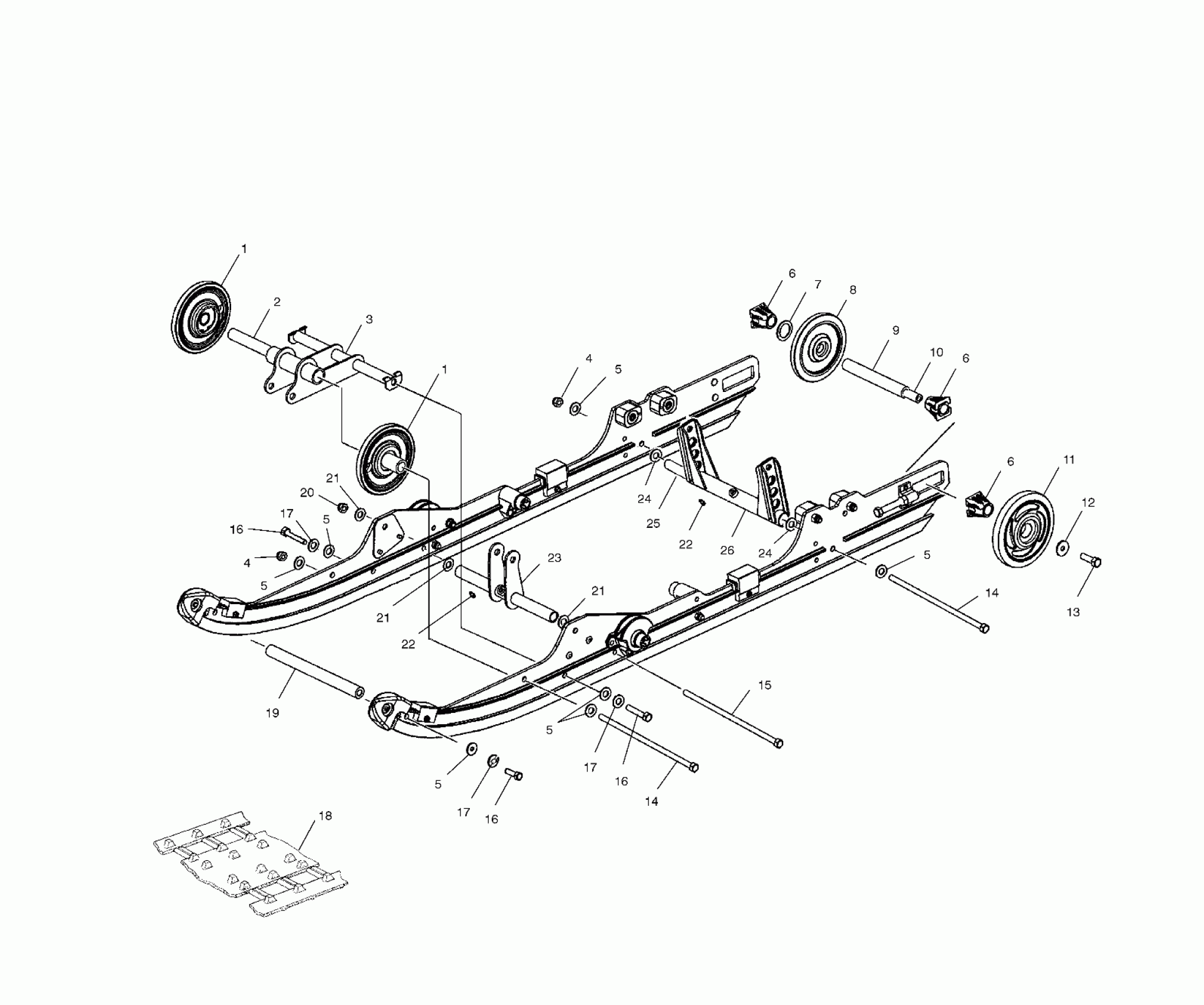

Polaris INDY FRONTIER - S02NT7DS SUSPENSION - S02NT7DS (4970727072B11) Diagram

#

Description
Price

1

Asm., Wheel

1590344

$52.60

1

Asm., Wheel

1590344

$52.60

2

Shaft

5132490

Unavailable

3

Mount, Shock

1541780-067

Unavailable

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

ASM., WHEEL

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT, IDLER

5020744

$59.99

11

BEARING

3514384

$19.84

11

RING-RETAINING

7710444

$8.79

11

Asm., Idler Wheel, Blue

1590303-244

Unavailable

12

WASHER

7556130

$6.39

13

BOLT

7517731

$1.49

14

SCREW

7517921

$23.99

14

SCREW

7517921

$23.99

15

Screw

7517207

Unavailable

16

Screw

7517247

$3.19

16

Screw

7517247

$3.19

16

Screw

7517247

$3.19

17

Washer, Spring Lock

7552603

$1.49

17

Washer, Spring Lock

7552603

$1.49

17

Washer, Spring Lock

7552603

$1.49

18

Clip, Slide

5241473

$8.79

18

Clip, Guide

5241474

Unavailable

18

Track

5411797

Unavailable

19

Shaft, Pivot Arm

5020723

$29.99

20

Nut, Nylok

7547064

Unavailable

21

Washer, Flat

7555958

$4.99

21

Washer, Flat

7555958

$4.99

21

Washer, Flat

7555958

$4.99

22

FITTING-LUBRICATION 1/4-28

7080424

$4.79

22

FITTING-LUBRICATION 1/4-28

7080424

$4.79

23

Arm, Pivot, Shock

1541687-067

Unavailable

24

Washer, Flat

7555893

$1.49

24

Washer, Flat

7555893

$1.49

25

SHAFT

5334026

$28.32

26

Arm, Pivot, Rear

1541707-067

$32.95
