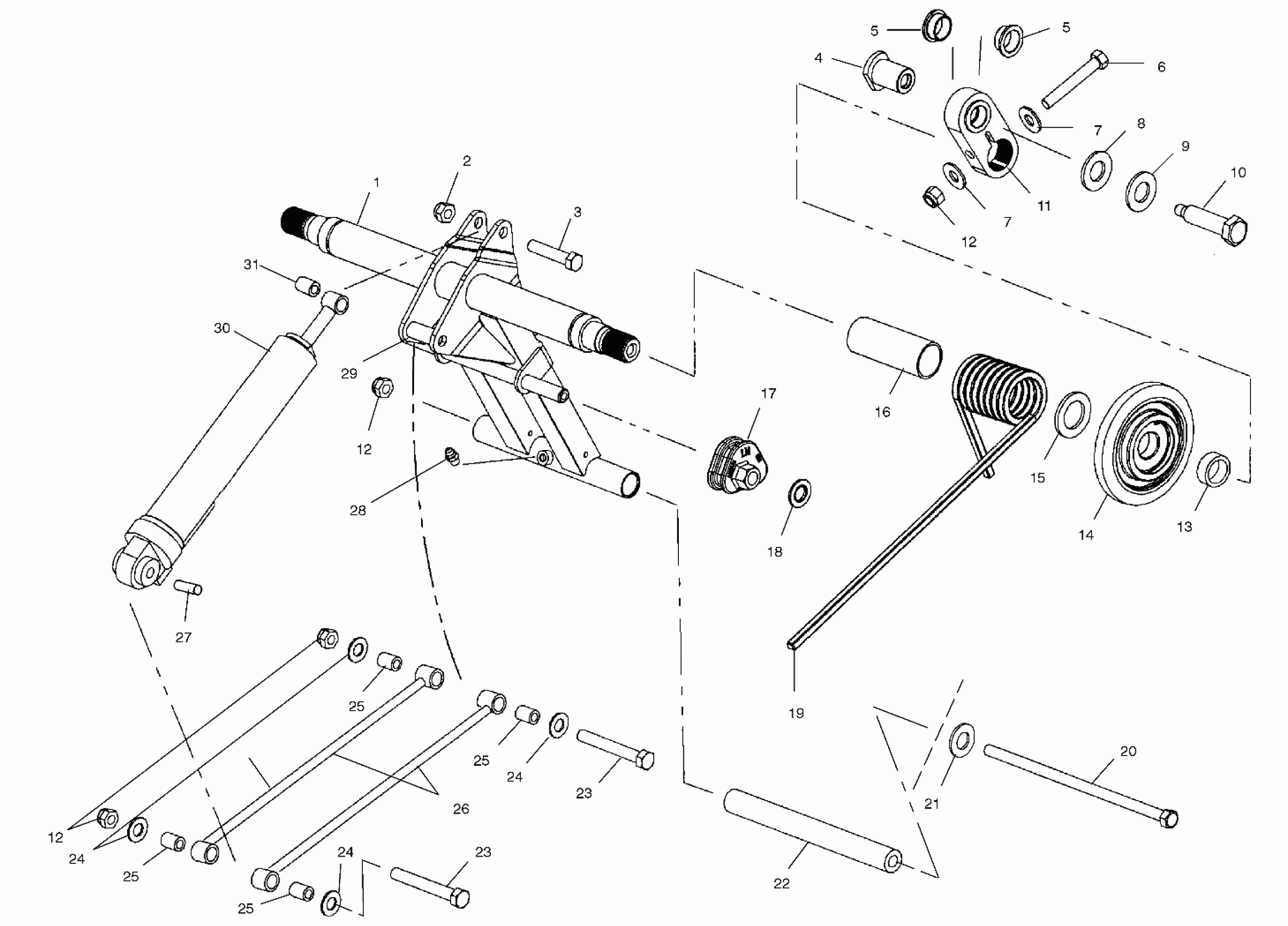

Polaris INDY FRONTIER - S02NT7DS REAR TORQUE ARM - S02NT7DS (4970727072B13) Diagram

#

Description
Price

1

Arm, Torque, Rear

1541561-067

$254.99

2

Nut, FLEXLOC

7542411

$3.19

3

SCREW

7512410

Unavailable

4

Shaft, Arm

5333758

Unavailable

5

BUSHING

3514331

$19.99

5

BUSHING

3514331

$19.99

6

Screw

7515415

$1.49

7

WASHER, FLAT

7556188

$3.19

7

WASHER, FLAT

7556188

$3.19

8

Washer, Flat

7555893

$1.49

9

Washer, Spring Lock

7552603

$1.49

10

Screw

7517435

$14.99

11

Asm., Rear Torque Arm [Incl. 5]

1541461

$119.99

12

Nut, Nylok

7542439

$1.49

12

Nut, Nylok

7542439

$1.49

12

Nut, Nylok

7542439

$1.49

13

Spacer, Wheel

5132388

Unavailable

14

ASM., CARRIER WHEEL

1590343

$72.84

15

WASHER, THRUST

7555787

Unavailable

16

Sleeve, Torsion Spring

5431923

$6.39

17

ROLLER-SPRING,TRI-ADJ,RH

5434590

$28.32

17

ROLLER-SPRING,TRI-ADJ,LH

5434589

$32.37

18

CLIP-PUSH ON

7080394

$2.39

19

Spring, Torsion, LH [Opt.][.375/77]

7041942-067

Unavailable

19

Spring, Torsion, RH [Opt.][.375/77]

7041943-067

Unavailable

19

SPRING-TORS,.405SQ/77, LH, BLK [Std.][.405/77]

7041940-067

$113.32

19

SPRING-TORS,.405SQ/77, RH, BLK [Std.][.405/77]

7041941-067

$113.32

20

Screw

7517232

$19.99

21

Washer, Flat

7555806

$1.49

22

Shaft

5334025

$48.56

23

Bolt

7515514

$7.19

23

Bolt

7515514

$7.19

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

Bushing

5132391

$7.99

25

Bushing

5132391

$7.99

25

Bushing

5132391

$7.99

25

Bushing

5132391

$7.99

26

Rod, Shock

1541479-067

$44.51

27

SLEEVE

5333905

$15.99

28

FITTING-LUBRICATION 1/4-28

7080424

$4.79

29

Spacer

5333904

Unavailable

30

Shock, ARVIN

7042138

$319.99

31

BUSHING

5010422

$11.99
