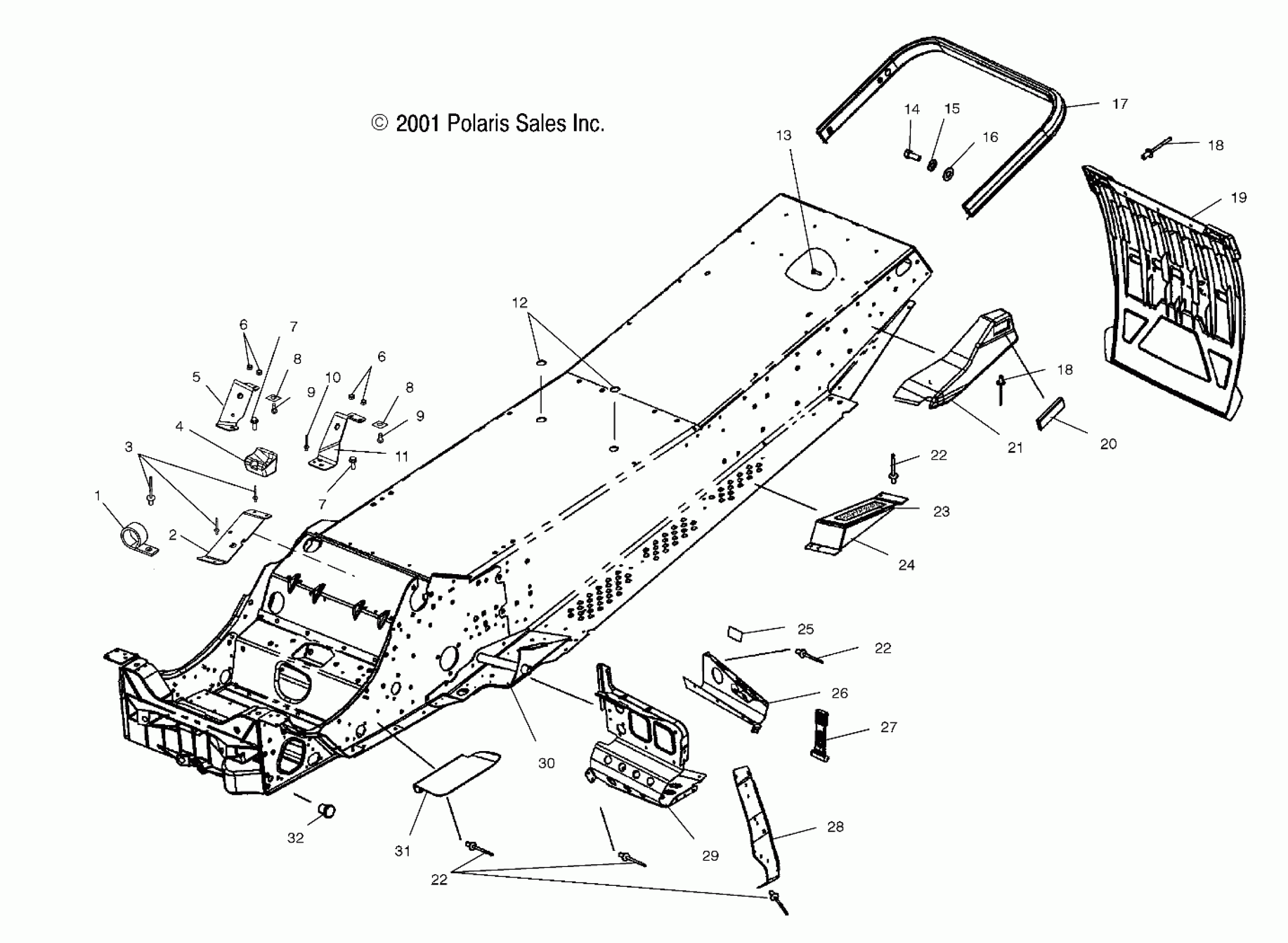

Polaris INDY FRONTIER - S02NT7DS CHASSIS - S02NT7DS (4970727072A03) Diagram

#

Description
Price

-

Asm., Chassis

1013563-309

Unavailable

1

CLAMP, HOSE

7080693

$5.59

2

Asm., Bracket, Coil w/Nuts

1013786

$41.59

3

Rivet

7621432

$1.49

4

Stop, Torque

5412224

$20.63

5

Mount, Engine, Rear, LH

1013542

$42.39

6

Nut, Nylok

7542122

$1.49

6

Nut, Nylok

7542122

$1.49

7

Screw

7517854

$5.59

7

Screw

7517854

$5.59

8

Nut, Speed

7670021

$6.99

8

Nut, Speed

7670021

$6.99

9

BOLT

7515203

$3.99

9

BOLT

7515203

$3.99

10

RIVET-3/16-.090-.290

7661637

$1.49

11

Mount, Engine, Rear, RH

1013543

$42.39

12

Caplug

7080592

Unavailable

13

Screw

7517441

$2.39

14

BOLT

7512240

$3.99

15

WASHER, SPRING LOCK

7552801

$1.59

16

Washer, Flat

7558301

$1.49

17

Bumper, Rear

2670169-309

Unavailable

18

RIVET

7621472

$1.49

18

RIVET

7621472

$1.49

19

Flap, Snow

5434356-1106

Unavailable

20

Reflector, Red

2670133

$5.75

21

Skirt, Snow, LH [Incl. 20]

5434383-070

$37.11

21

Skirt, Snow, RH [Incl. 20]

5434384-070

$35.51

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

23

Pad, Footrest Grip

5830230

$35.51

24

Asm., Footrest, LH [Incl. 23]

1013812

$58.39

24

Asm., Footrest, RH [Incl. 23]

1013813

$58.39

25

EXTRUSION, CLUTCH GUARD

5521238

$6.46

26

Mount, Console, Toe Clip, LH

5245457

Unavailable

26

Mount, Console, Toe Clip, RH

5245458

Unavailable

27

STRAP-AIRBOX TOP

5433150

$24.27

28

Support, Footrest, LH

5246310

$19.83

28

Support, Footrest, RH

5246311

$32.37

29

Footrest, LH

5245288

Unavailable

29

Footrest, RH

5242740

Unavailable

30

Mount, Trailing Arm, LH

1013436

Unavailable

30

Mount, Trailing Arm, RH

1013650

Unavailable

31

Guard, Adapter Drive

5221583

$11.59

32

PLUG, HOLE

7080416

$5.65
