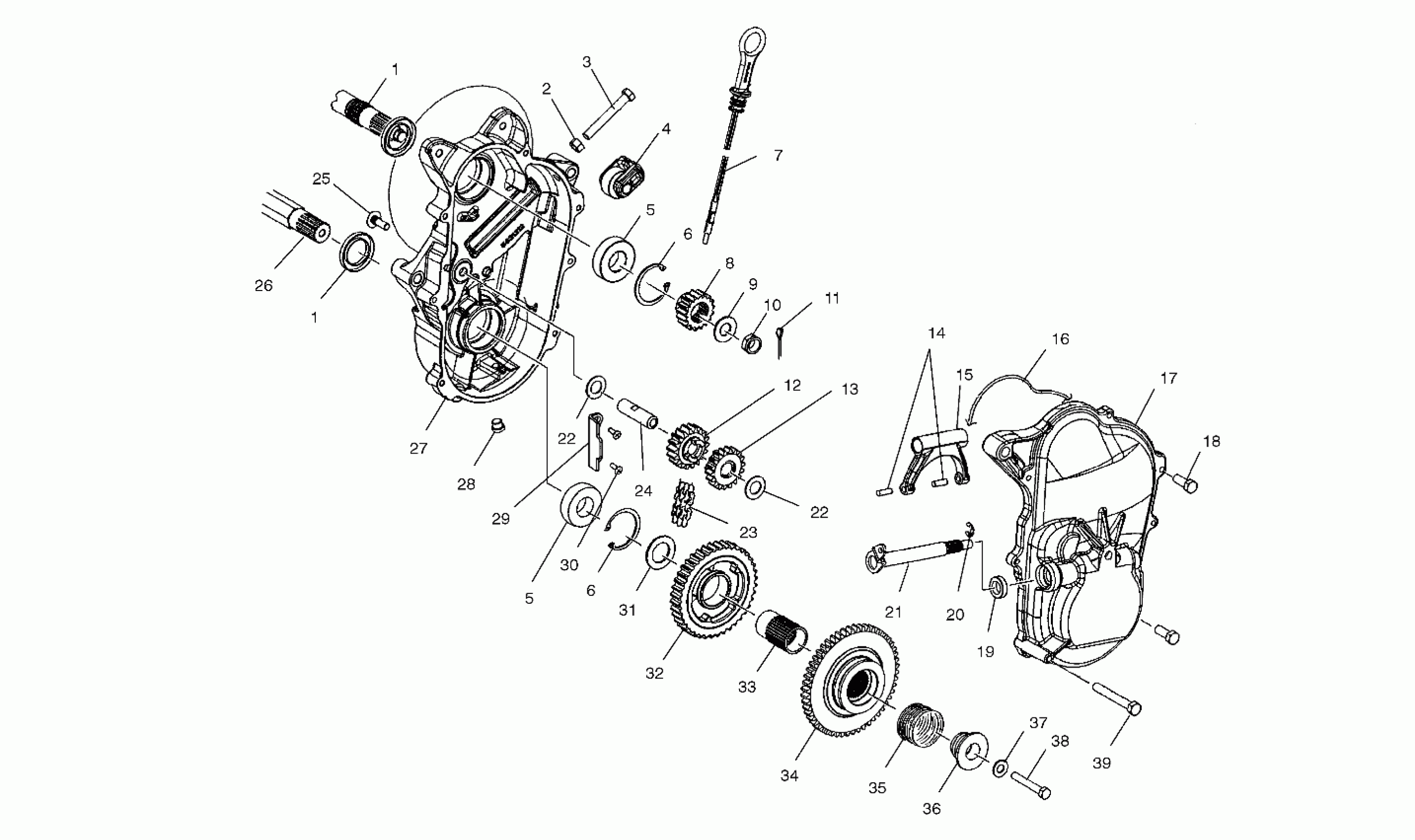

Polaris INDY FRONTIER - S02NT7DS CHAINCASE - S02NT7DS (4970727072B08) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

Bearing, Chaincase Idler

3553002

$11.99

4

Wheel, Idler

5630123

Unavailable

4

WASHER, THRUST

7558702

$1.59

4

Asm., Tightener

1332257

$114.99

4

Pin, Chain Tightener

5133002

Unavailable

5

BEARING, BALL

3514309

$15.87

5

BEARING, BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

Dipstick

1332143

$54.99

8

Sprocket, 17T, 3/4W

3221093

$44.99

9

Washer, Spring

7571620

$7.19

10

Nut, Nylok

7547202

$5.59

11

PIN, COTTER

7661401

$1.49

12

Sprocket, Pinion, 18T, 3/4W

1341241

Unavailable

12

Bearing, Needle

3554508

$16.99

13

Gear, Pinion, Spur

1341075

$149.99

13

Bearing, Needle

3554508

$16.99

14

Pin, Dowel

7661826

$5.65

15

Kit - Shift Fork/Shaft [Incl. 21,14]

2200363

Unavailable

15

Fork, Shift

5130805

Unavailable

16

Gasket, Chaincase

5411497

$20.22

17

Cover, Chaincase

5133316

$298.99

18

SCREW

7512242

$2.39

19

Seal, Oil

3610029

$8.89

20

Ring, Retaining

7710415

$3.99

21

Shaft, Shift

1341388-067

Unavailable

22

WASHER, THRUST

7555877

$3.99

22

WASHER, THRUST

7555877

$3.99

23

CHAIN, 72P, 3/4W

3221110

$164.99

24

Shaft, Pinion

5131770

Unavailable

25

Screw

7515477

$34.99

26

ASM., JACKSHAFT [See Drive Train Pg. B9, Ref. 18]

-------

Unavailable

27

Chaincase

5133179

$113.32

28

PLUG

7052115

$5.65

29

Bracket, Chain Retention

5246421

$36.41

30

Screw

7512019

$3.99

31

Washer

7555871

$5.59

32

Sprocket, 40T, 3/4W

1341227

Unavailable

33

Coupler, Drive

5130720

Unavailable

34

Gear, Reverse

1341410

$559.99

35

Spring, Compression

7041887

$44.99

36

Retainer, Drive Coupler

5130727

Unavailable

37

WASHER, SPRING LOCK

7552901

$1.49

38

SCREW

7517581

$1.59

39

SCREW

7518052

$7.19
