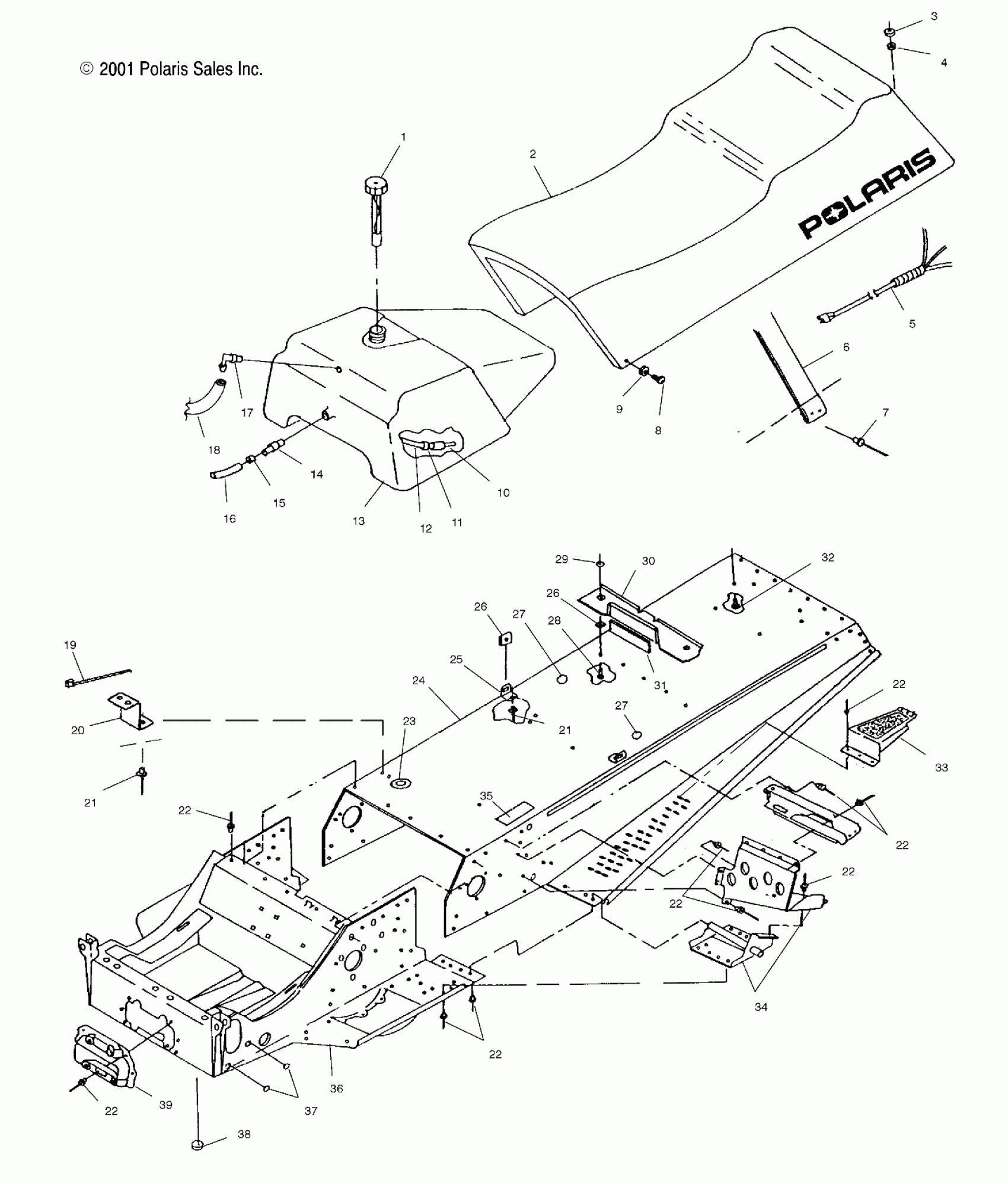

Polaris INDY 340 TOURING - S02LT3AS TUNNEL and SEAT - S02LT3AS (4968436843A03) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

Cap w/Gauge, Gas

2511245

Unavailable

2

Asm., Seat Cushion (Incl. 5)

2682636

Unavailable

2

Cover, Seat, 2-up

2682637

$212.57

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

Washer

7558403

$4.79

5

Harness, Taillight

2460237

Unavailable

6

Belt, Seat

7080434

$14.40

7

RIVET

7621472

$1.49

8

Screw

7515111

$7.19

9

Washer, Nylon

7555798

$1.49

10

Fuel Pick-Up w/Filter

7052243

Unavailable

11

RING, COMPRESSION

7080402

$1.60

12

LINE, FUEL

8350019-600

Unavailable

13

Asm., Fuel Tank (Incl. 10-14,17,18)

2520179

Unavailable

14

FITTING, OUTLET, DOUBLE

7052023

$24.99

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

Line, Fuel

8350018-600

Unavailable

17

Fitting, 90 Degree

7052095

$4.79

18

LINE, FUEL

8450061-600

Unavailable

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

Bracket, Stand

5220520-067

$4.13

21

Rivet

7621453

$3.19

21

Rivet

7621453

$3.19

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

23

Grommet

5410021

Unavailable

24

Asm., Tunnel (Incl. 26)

1013572

$420.41

25

Bracket, Console/Seat Mount

5222452-067

$25.59

26

Nut, Speed

7670021

$6.99

26

Nut, Speed

7670021

$6.99

27

Caplug

7080592

Unavailable

27

Caplug

7080592

Unavailable

28

BOLT

7512193

$2.39

29

Nut, Nylok

7542122

$1.49

30

Strap, Gas Tank

5222330-067

Unavailable

31

Cushion, Tank Hold Down

5420126

Unavailable

32

Bolt

7512331

$3.99

33

Footrest, LH

5220893

Unavailable

33

Footrest, RH

5220894

$32.15

33

Foot Pad, Safety, LH

5830007

$7.89

33

Foot Pad, Safety, RH

5830008

$4.92

34

Footrest, LH

1011830

$140.79

34

Footrest, RH

1011826

Unavailable

35

Pad, Air Box

5810502

Unavailable

36

Bulkhead

1012587-067

$649.99

37

PLUG, HOLE

7080416

$5.65

38

PLUG-HOLE

7080398

$4.84

39

Mount, Radius Rod

5630924

Unavailable
