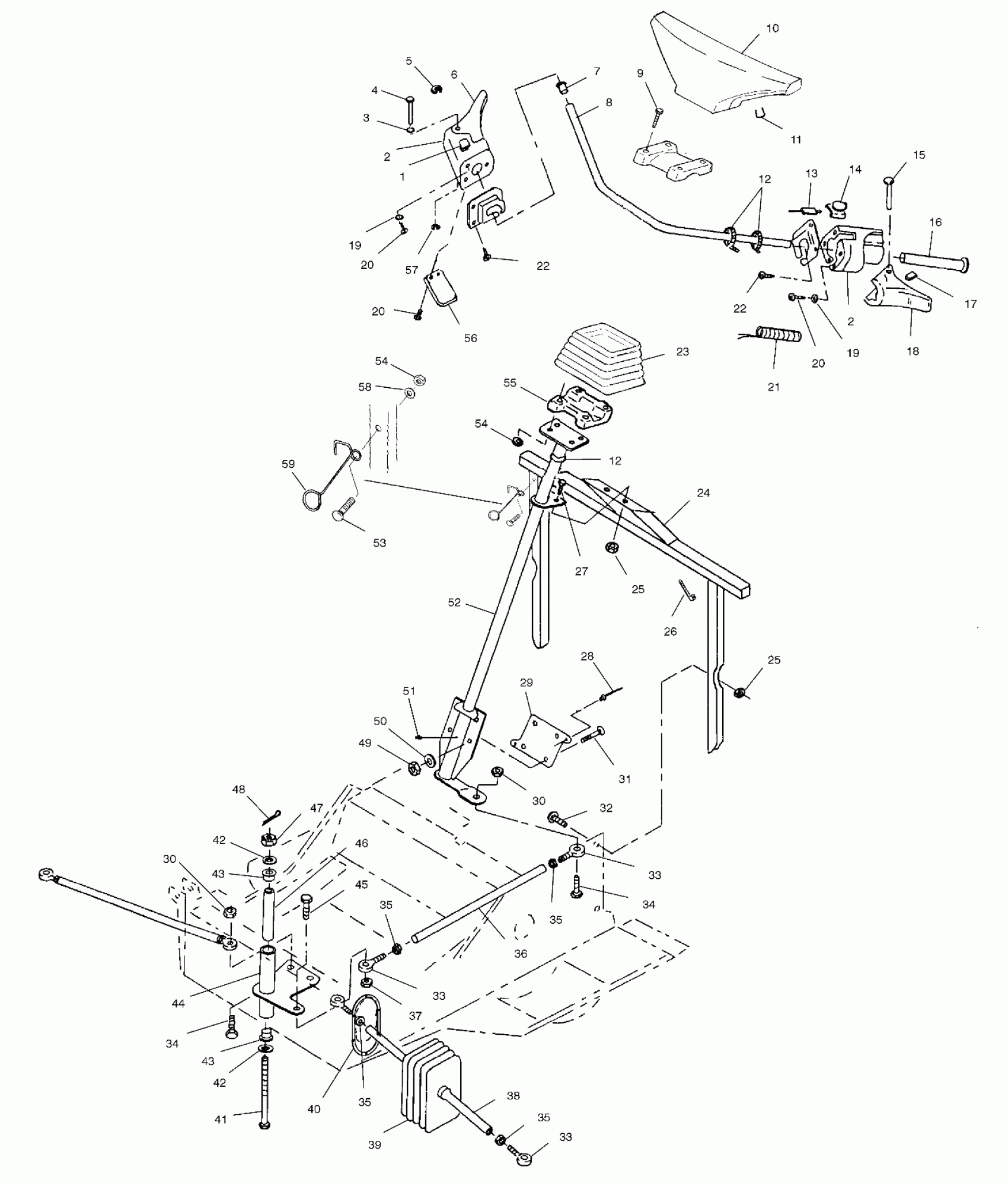

Polaris INDY 340 TOURING - S02LT3AS STEERING - S02LT3AS (4968436843A13) Diagram

#

Description
Price

1

Switch, Auxiliary Shut-Off

4110106

$94.99

2

BLOCK, THROTTLE/BRAKE

5431592

$49.99

2

BLOCK, THROTTLE/BRAKE

5431592

$49.99

3

WASHER

7555730

$3.99

4

PIN-RETAINING .186X1.780-AL

7661624

$12.79

5

RING-RETAINING EXTERNAL

7710401

$3.99

6

Lever, Throttle

5430601

Unavailable

6

Lever w/Heater

2010147

Unavailable

7

PLUG, OVERFLOW

5431096

$2.02

8

Handlebar

5224841-067

$43.75

9

SCREW

7517238

$4.79

10

Pad, Handlebar

5432903

Unavailable

11

Clip, Handlebar Pad

7080799

Unavailable

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

Switch, Brakelight

4110105

Unavailable

14

Switch, Dimmer

4110104

Unavailable

15

Rivet

7661617

$4.03

16

Grip, Handlebar

5432634

$24.27

17

Clip, Speed, U-Type

7670044

$4.79

18

Lever, Brake

5430602

$36.41

19

WASHER

7555727

$1.49

19

WASHER

7555727

$1.49

20

Screw

7511848

$3.99

20

Screw

7511848

$3.99

20

Screw

7511848

$3.99

21

Heater, Grip

2460313

Unavailable

22

Screw, Socket/Set

7512465

$3.99

22

Screw, Socket/Set

7512465

$3.99

23

Boot, Steering Post

5432827

Unavailable

24

Hoop, Steering

1011863-067

$38.71

25

Nut, FLEXLOC

7542103

$5.59

25

Nut, FLEXLOC

7542103

$5.59

26

Cable Tie

7080804

$3.22

27

Bolt

7515101

Unavailable

28

RIVET-3/16-.090-.290

7661637

$1.49

29

Bracket, Bolt Retainer

5222421

$5.52

30

Nut, Nylok

7542439

$1.49

30

Nut, Nylok

7542439

$1.49

31

Bolt

7512377

$4.79

32

BOLT

7512298

$3.99

33

ROD END, LH

7060166

$48.56

33

ROD END, RH

7060167

$48.56

33

ROD END, LH

7060166

$48.56

33

ROD END, RH

7060167

$48.56

33

ROD END, LH

7060166

$48.56

33

ROD END, RH

7060167

$48.56

34

SCREW

7515528

$8.79

34

SCREW

7515528

$8.79

35

NUT

7542401

$2.39

35

NUT, LH

7542424

$1.49

35

NUT

7542401

$2.39

35

NUT, LH

7542424

$1.49

35

NUT

7542401

$2.39

35

NUT, LH

7542424

$1.49

35

NUT

7542401

$2.39

35

NUT, LH

7542424

$1.49

36

Rod, Drag Link

5333816-067

$45.59

37

Nut, FLEXLOC

7542411

$3.19

38

Tie Rod

5132136-067

Unavailable

39

Boot, Tie Rod

5411652

Unavailable

40

Retainer, Tie Rod Boot

5243497

$19.84

41

Bolt

7512572

$13.19

42

Washer

7555817

Unavailable

42

Washer

7555817

Unavailable

43

Bushing, Steering, Center

5630371

$5.03

43

Bushing, Steering, Center

5630371

$5.03

44

Steering, Center, LH

1820776-067

$49.59

45

Bolt

7515434

Unavailable

46

Spacer

5333009

$11.99

47

Nut

7542503

$10.39

48

Pin, Cotter

7661203

$1.49

49

Nut, FLEXLOC

7542303

$6.39

50

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

51

Fitting, Lubrication

7080433

$1.49

52

Post, Steering

1822589-067

Unavailable

53

BOLT

7512193

$2.39

54

Nut, Nylok

7542122

$1.49

54

Nut, Nylok

7542122

$1.49

55

Block, Handlebar

5630187-067

$44.99

56

HOLDER, WIRE

5432261

$24.27

57

RING-RETAINING EXTERNAL

7710401

$3.99

58

WASHER

7558302

$1.59

59

Ring, Mount, Recoil

5224442-067

$21.43
