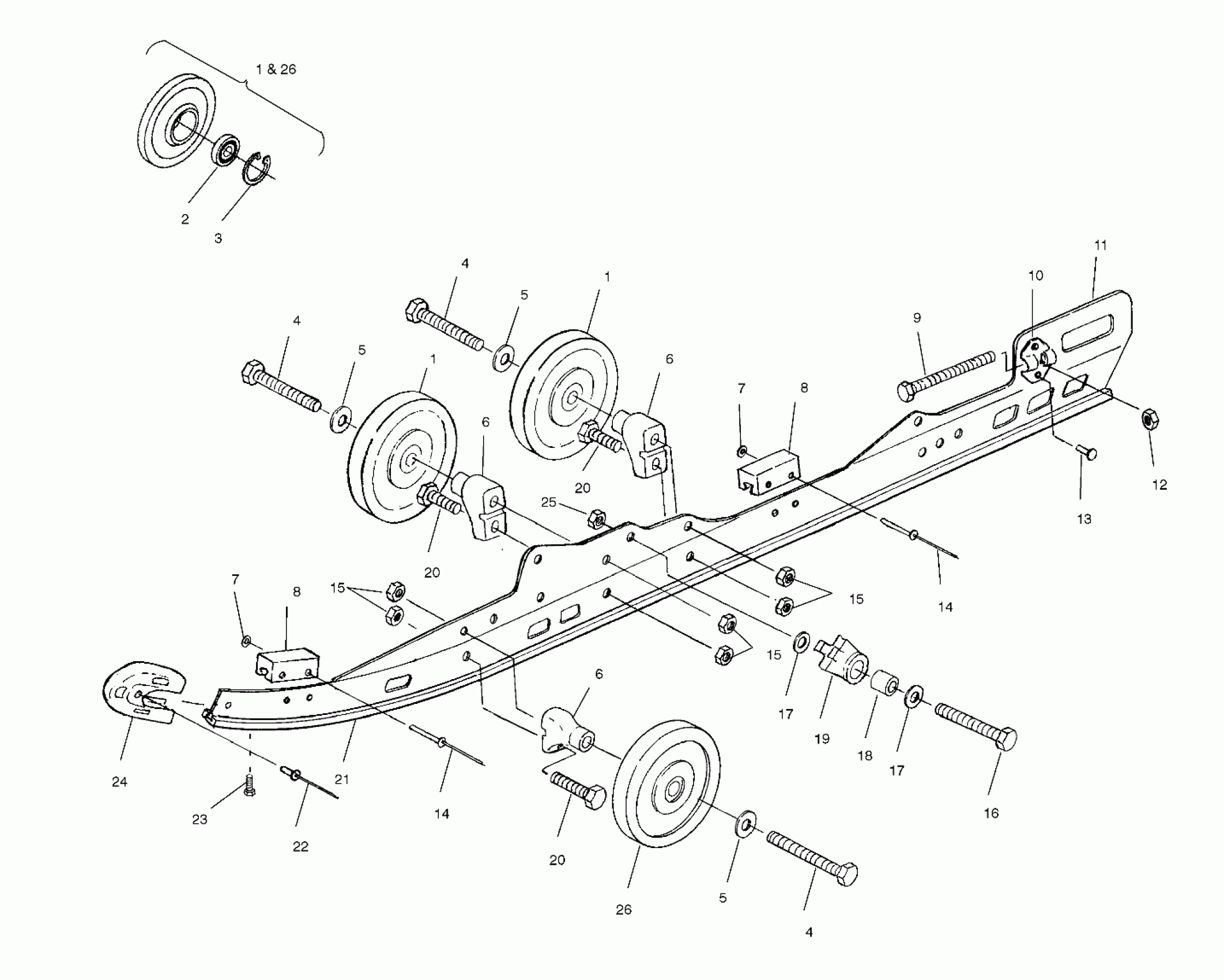

Polaris INDY 340 TOURING - S02LT3AS RAIL MOUNTING (SUSPENSION) - S02LT3AS (4968436843B04) Diagram

#

Description
Price

1

Bogie Wheel (Incl. 2-3)

1594070

$54.99

1

Bogie Wheel (Incl. 2-3)

1594070

$54.99

1

Bogie Wheel (Incl. 2-3)

1594070

$54.99

2

Bearing, Roller (1 Per Wheel)

3514305

$19.99

3

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

Screw

7515346

$5.59

4

Screw

7515346

$5.59

4

Screw

7515346

$5.59

5

Washer, Spring

7556179

$7.99

5

Washer, Spring

7556179

$7.99

5

Washer, Spring

7556179

$7.99

6

Mount, Wheel

5631065

$28.32

6

Mount, Wheel

5631065

$28.32

6

Mount, Wheel

5631065

$28.32

7

Nut, Push On

7670068

$2.39

7

Nut, Push On

7670068

$2.39

8

Bumper, Jounce

5811282

Unavailable

8

Bumper, Jounce

5811282

Unavailable

9

SCREW

7517227

$7.19

10

Bracket, Idler Adjust

5241628

$39.99

11

Rail, X-Lite, LH (Incl. 7, 8,10,13,14,22,24)

1541175

$319.99

11

Rail, X-Lite, RH (Incl. 7, 8,10,13,14,22,24)

1541176

$254.99

12

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

13

Rivet

7621512

$1.49

14

Rivet

7661621

$3.99

14

Rivet

7661621

$3.99

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

Screw

7515433

$1.59

17

Washer, Flat

7555893

$1.49

17

Washer, Flat

7555893

$1.49

18

Bushing

5010332

$11.99

19

Block, Spring Slider

5431924

$10.65

20

BOLT

7515317

$4.79

20

BOLT

7515317

$4.79

20

BOLT

7515317

$4.79

21

Hi-fax, White

5521450

$36.41

22

RIVET

7621435

$1.49

23

Screw

7515199

$1.49

24

Cap, Rail Tip

5432364

$6.63

25

Nut, FLEXLOC

7542411

$3.19

26

Asm. Wheel, Red (Incl. 2-3)

1590275-256

Unavailable

26

Asm. Wheel, Red (Incl. 2-3)

1590275-256

Unavailable
