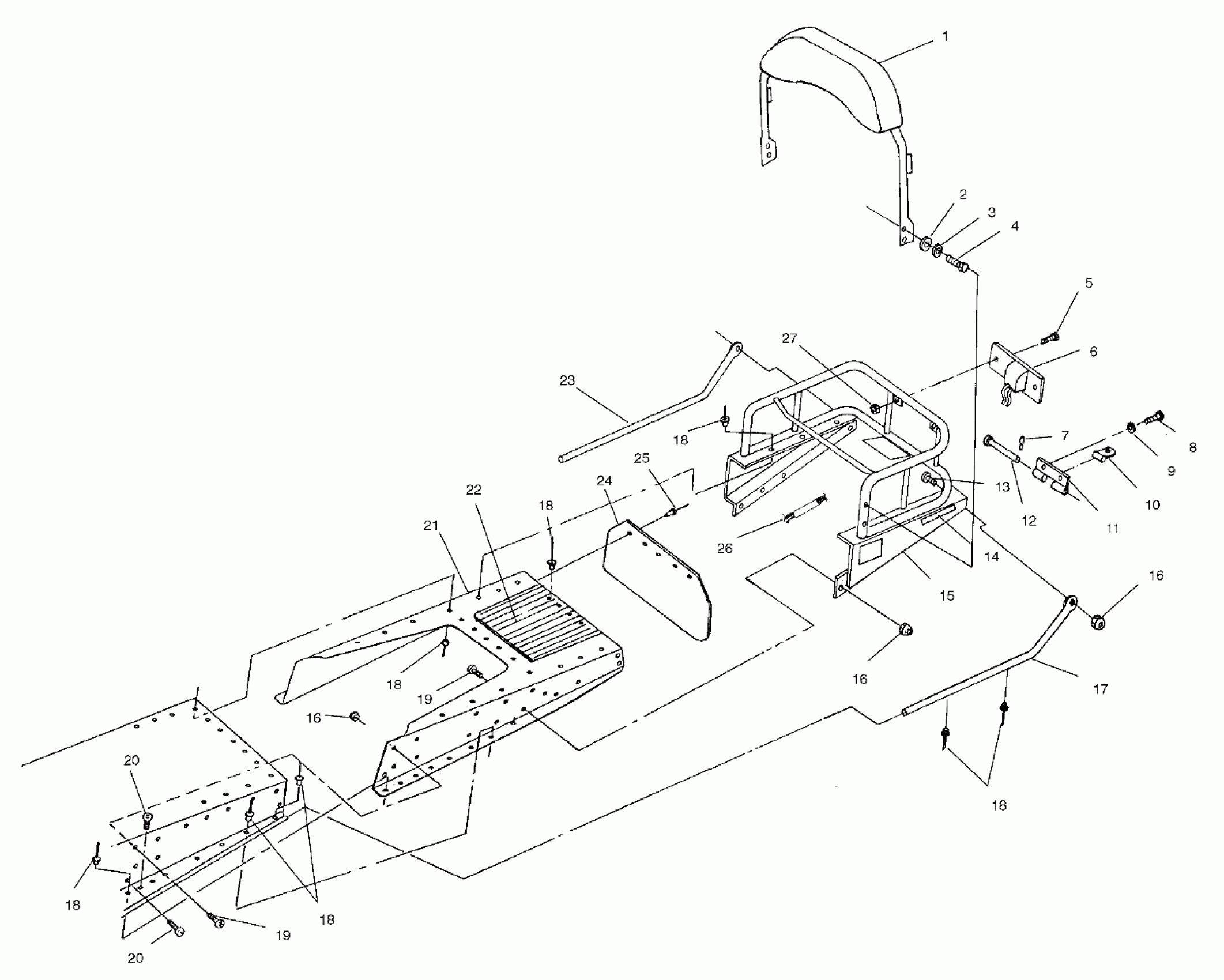

Polaris INDY 340 TOURING - S02LT3AS RACK and TUNNEL EXTENSION - S02LT3AS (4968436843A10) Diagram

#

Description
Price

1

COVER, BACKREST

2681265

$257.13

1

Asm., Backrest (Incl. Cover)

2681356

$284.75

2

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

3

Washer, Split

7552606

$4.79

4

Screw

7515341

Unavailable

5

Bolt

7511989

Unavailable

6

Bulb, Taillight

4030063

$24.99

6

Asm., Taillight (Incl. Bulb, Lens, Gasket)

4030041

$91.19

6

Gasket, Lens

4032015

Unavailable

6

Lens, Red

4032014

$36.41

7

PIN, COTTER

7661401

$1.49

8

Screw

7512490

$3.99

9

Washer, Spring Lock

7552603

$1.49

10

Hitch

1011518-067

$31.75

11

Mount, Hitch

1011624-067

Unavailable

12

PIN, CLEVIS

7662209

$9.59

13

Bolt

7512282

$1.49

14

Reflector, Red

2670133

$5.75

15

Rack, Rear

2670129-067

Unavailable

16

Nut

7542101

$3.99

16

Nut

7542101

$3.99

16

Nut

7542101

$3.99

17

Tube, Tunnel Reinforcement, LH

5224461-067

Unavailable

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

19

Screw

7515107

Unavailable

19

Screw

7515107

Unavailable

20

Bolt

7515106

$2.39

20

Bolt

7515106

$2.39

21

Close-Off, Rear

1012612-067

$81.17

22

Protector, Bed

5410619

$22.06

23

Tube, Tunnel Reinforcement, RH

5224466-067

$28.95

24

Snowflap, Silver

5410394-1106

$121.02

25

RIVET

7621418

$1.49

26

Protector, Harness

5521246

$3.05

27

Nut, Nylok

7541925

$1.49
