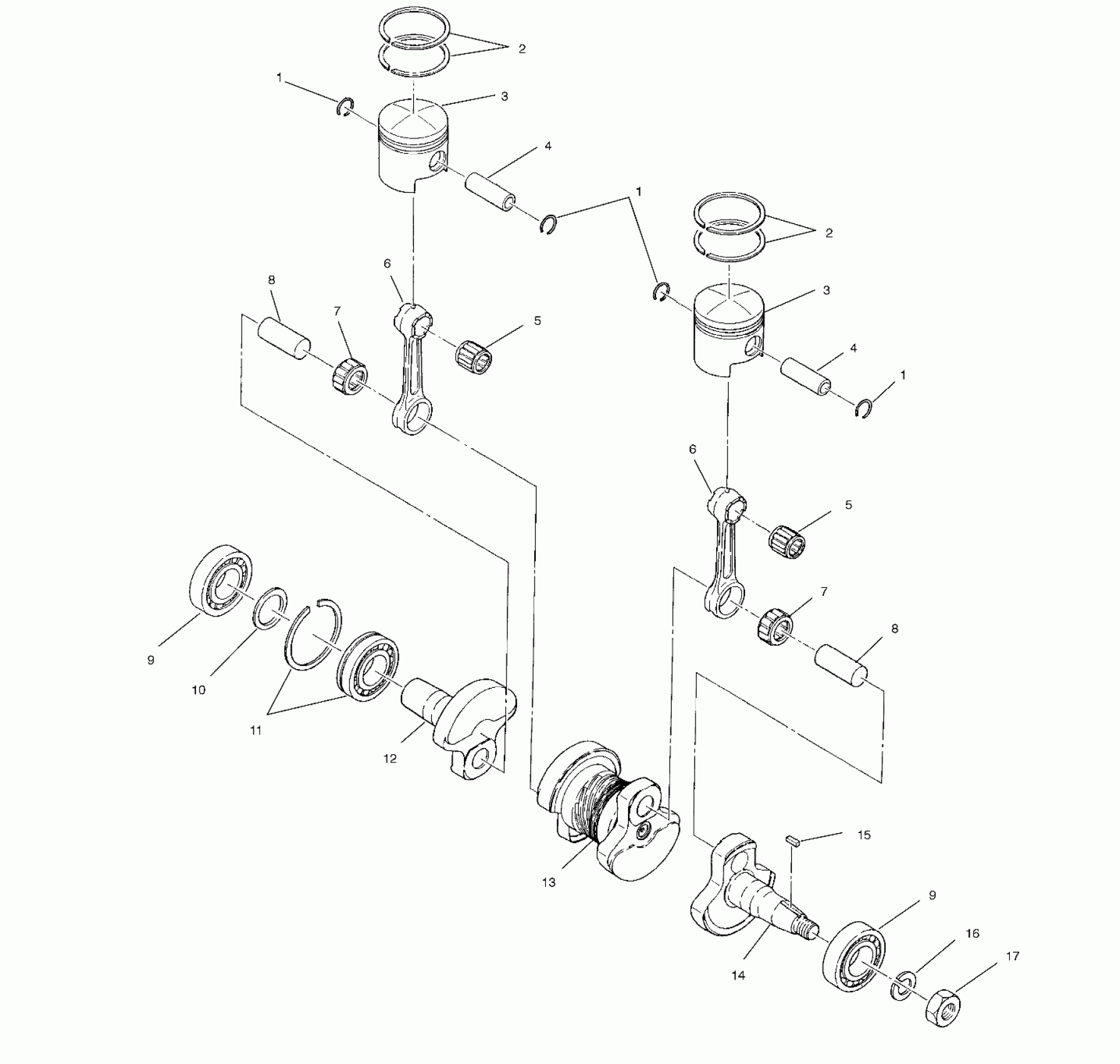

Polaris INDY 340 TOURING - S02LT3AS PISTON and CRANKSHAFT - S02LT3AS (4968436843C01) Diagram

#

Description
Price

1

Clip, Piston Pin

3084456

Unavailable

1

Clip, Piston Pin

3084456

Unavailable

1

Clip, Piston Pin

3084456

Unavailable

2

Ring, Piston (Standard)

3083587

Unavailable

2

Ring, Piston (.25mm/.010" Oversize)

3084319

$33.32

2

Ring, Piston (.50mm/.020" Oversize)

3083719

$31.41

2

Ring, Piston (Standard)

3083587

Unavailable

2

Ring, Piston (.25mm/.010" Oversize)

3084319

$33.32

2

Ring, Piston (.50mm/.020" Oversize)

3083719

$31.41

3

Piston (Standard)(Incl. 1)

3085840

Unavailable

3

Piston (.25mm/.010" Oversize)(Incl. 1)

3085841

$152.37

3

Piston (.50mm/.020" Oversize)(Incl. 1)

3085842

Unavailable

3

Piston (Standard)(Incl. 1)

3085840

Unavailable

3

Piston (.25mm/.010" Oversize)(Incl. 1)

3085841

$152.37

3

Piston (.50mm/.020" Oversize)(Incl. 1)

3085842

Unavailable

4

Pin, Piston

3084455

Unavailable

4

Pin, Piston

3084455

Unavailable

5

Bearing, Needle

3080998

Unavailable

5

Bearing, Needle

3080998

Unavailable

6

Rod, Connecting

3083581

Unavailable

6

Rod, Connecting

3083581

Unavailable

7

Bearing, End, Large

3083583

$23.19

7

Bearing, End, Large

3083583

$23.19

8

Pin, Crank

3083582

$16.47

8

Pin, Crank

3083582

$16.47

9

Bearing, Ball

3084580

$31.99

9

Bearing, Ball

3084580

$31.99

10

Spacer

3083399

$1.49

11

Bearing, Ball

3084602

Unavailable

12

Crankshaft 3, PTO Side

3083580

$236.99

13

Crankshaft 2, Center (Incl. 8)

3083579

$400.79

14

Asm., Crankshaft (Incl. 6-14)

3083577

$969.99

14

Crankshaft 1, MAG Side

3083578

$354.99

15

KEY

3081447

Unavailable

16

WASHER, SPRING

3083094

$3.17

17

NUT

3083093

$19.99
