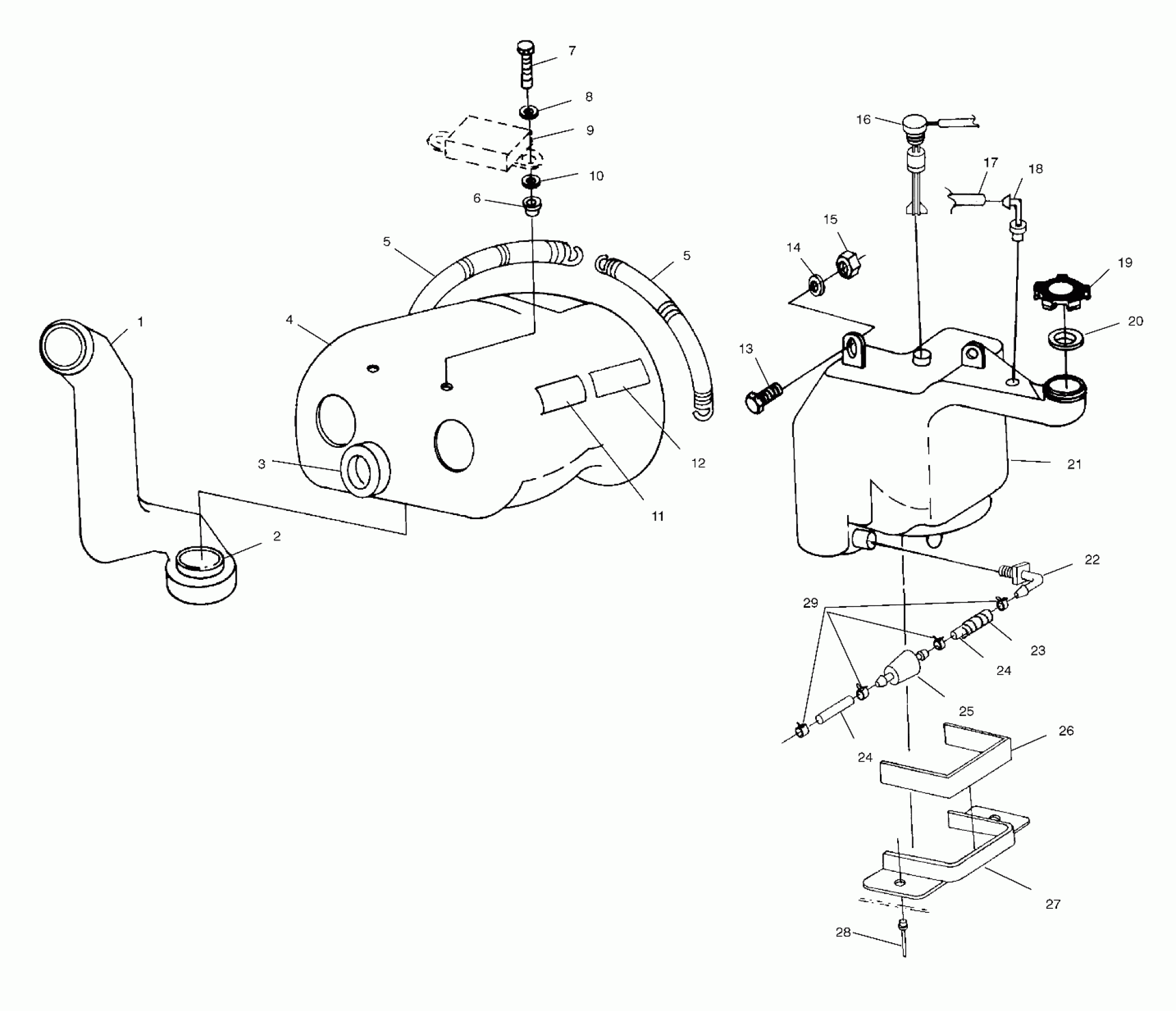

Polaris INDY 340 TOURING - S02LT3AS OIL TANK/AIR BOX - S02LT3AS (4968436843B11) Diagram

#

Description
Price

1

Duct, Intake Silencer

5431354

Unavailable

2

Seal, Intake

5410374

$1.83

3

Boot

5410311

Unavailable

4

Silencer, Intake, Drilled

5431521

Unavailable

5

Spring, Intake Hold-Down

7041244

$11.79

5

Spring, Intake Hold-Down

7041244

$11.79

6

Nut, Well

7541923

$5.59

7

Screw

7512222

$2.39

8

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

9

Asm., Fuel Pump (See Fuel Pump Pg. C3, Ref. 3)

-------

Unavailable

10

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

11

Decal, Intake

7075348

Unavailable

12

Decal, Greasing

7073426

$7.27

13

BOLT

7512240

$3.99

14

WASHER

7558302

$1.59

15

Nut, Nylok

7542122

$1.49

16

Sensor, Oil Level

4110134

$72.84

17

LINE, FUEL

8450061-600

Unavailable

18

Fitting, 90 Degree

7052095

$4.79

19

Cap, Oil Tank

5430779

$14.56

20

Gasket, Oil Cap

5810141

$2.39

21

Tank, Oil, Drilled

5431488

$115.99

22

Fitting, Outlet, Double, 90 Degree

7052056

$6.23

23

Tubing, Convoluted

4010051-30

Unavailable

24

Line, Fuel

8450003-1525

Unavailable

24

Line, Fuel

8450003-1525

Unavailable

25

FILTER

2530009

$5.65

26

Pad, Oil Tank

5810522

$1.35

27

Bracket, Oil Tank, Lower

5222673

Unavailable

28

Rivet

7621453

$3.19

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49
