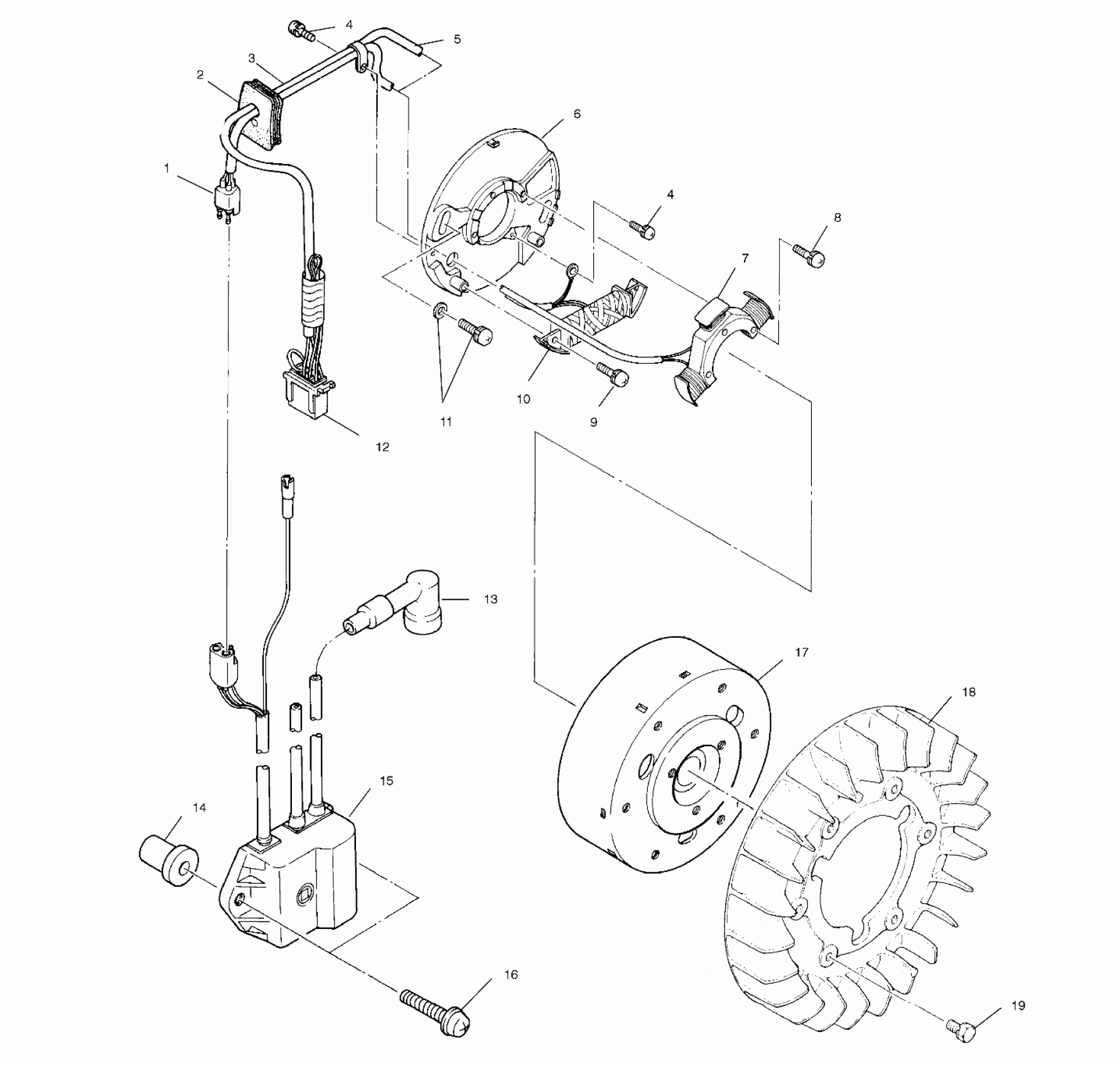

Polaris INDY 340 TOURING - S02LT3AS MAGNETO - S02LT3AS (4968436843C05) Diagram

#

Description
Price

1

3P Coupler

3083150

$10.63

2

Grommet

3082969

Unavailable

3

Harness, Wire (Incl. 1-3,12)

3084259

$82.39

4

Screw and Washer

3081260

$3.19

4

Screw and Washer

3081260

$3.19

5

Clamp

3081296

Unavailable

6

Plate

3083987

$364.99

6

Asm., Plate (Incl. 1-10,12)

3085658

Unavailable

7

Stator

3085659

Unavailable

8

Screw and Washer

3083736

$1.49

9

Screw and Washer

3083423

$3.19

10

Coil, Exciter

3083984

$89.03

11

Screw and Washer

3082175

Unavailable

12

Coupler, 6P Male

3081513

$19.99

13

Cap, Spark Plug

4020129

$9.70

14

Nut, Rubber

3083240

Unavailable

15

Coil, Ignition

3083723

Unavailable

16

Screw and Washer

3083784

$2.39

17

Asm., Flywheel (Incl. 17-19)

3085661

$484.99

18

Blower

3083152

$99.19

19

Bolt and Washer

3085660

$1.49
