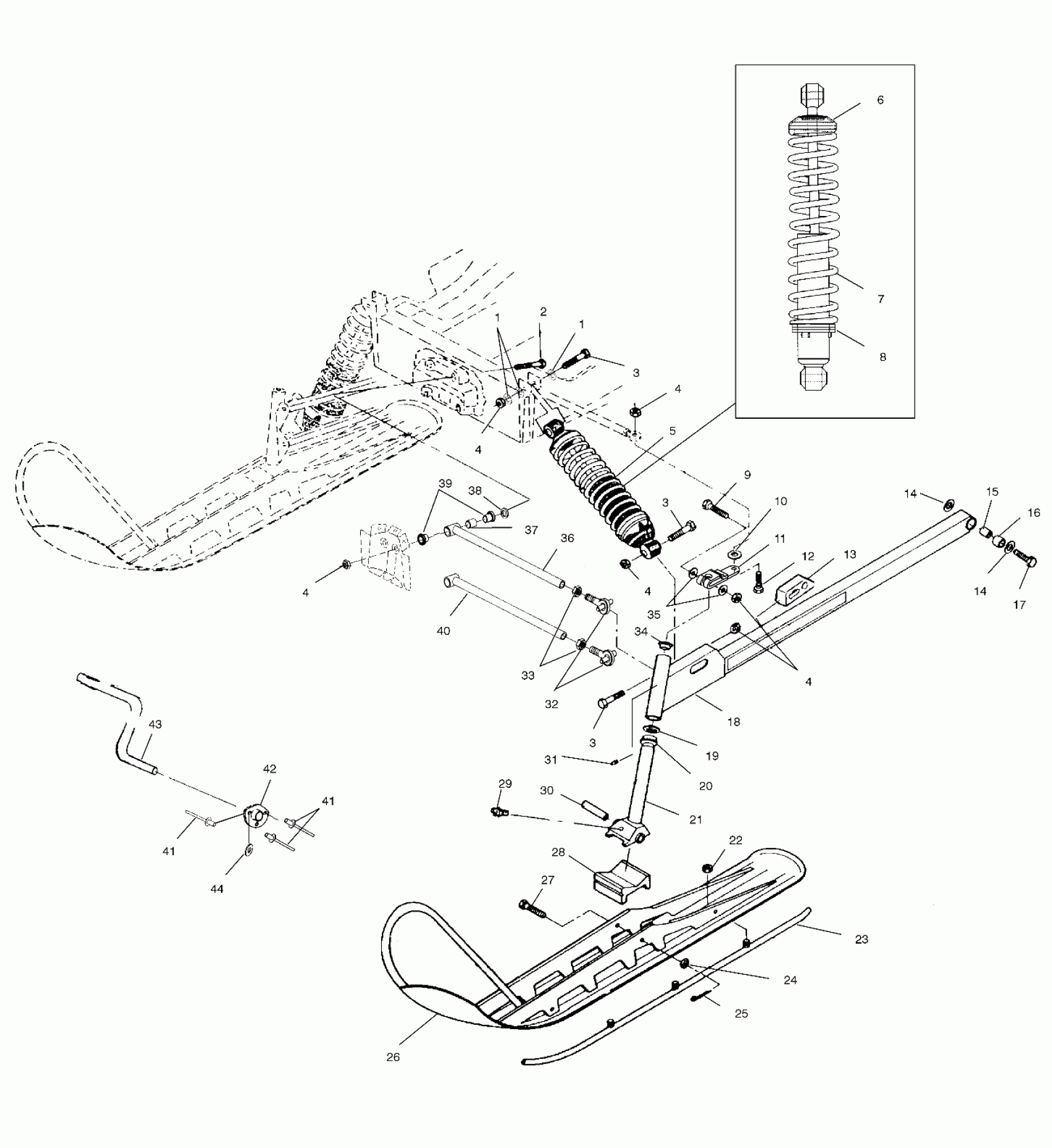

Polaris INDY 340 TOURING - S02LT3AS FRONT SUSPENSION and SKI - S02LT3AS (4968436843A11) Diagram

#

Description
Price

1

Washer, Flat

7555806

$1.49

1

Washer, Flat

7555806

$1.49

2

SCREW

7515417

$4.79

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

5

Shock, Front Suspension

7041788

Unavailable

6

Retainer, Spring, Top

5220225

$10.39

7

Spring, Compression

7041261-067

$164.99

8

Retainer, Spring, Bottom

5210953

$6.39

9

SCREW

7517583

$4.35

10

Washer, Flat

7555976

$3.99

11

Arm, Steering

5220326-067

Unavailable

12

SCREW

7515528

$8.79

13

Slide

5410384

Unavailable

14

WASHER

7555721

$1.49

14

WASHER

7555721

$1.49

15

Bushing

5010187

Unavailable

16

Pivot, Rubber, Trailing Arm

5410382

Unavailable

17

Screw

7512557

$7.60

18

Arm, Trailing, LH

1823136-067

Unavailable

18

Arm, Trailing, RH

1823137-067

$266.49

19

Bushing

7556509

$1.59

20

BUSHING, FLANGED

3574208

$3.19

21

Spindle

6230073-067

Unavailable

22

NUT-5/16-18 NYLOK-Y

7542324

$1.49

23

Skag, Ski

1820267

$23.99

24

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

25

Pin, Cotter

7661209

Unavailable

26

Ski

1820333-067

Unavailable

27

Screw

7515462

$8.79

28

Stop, Rubber

5521231

Unavailable

29

Fitting w/Ball, Lubrication

7080306

$3.19

30

Bushing

5010158

$19.99

31

Fitting, Lubrication

7080433

$1.49

32

Rod End, Wide Bore, RH

7061069

Unavailable

33

Nut, Jam

7542520

$2.39

34

BUSHING, FLANGE

3573909

$2.39

35

WSHR-.813X.406X.105-Y

7555832

$2.39

36

Rod, Radius, Upper

1820658-067

Unavailable

37

Bushing

5010252

$1.59

38

Washer, Flat

7555797

$3.99

39

Bushing, Pivot, Radius Rod

5431486

$3.19

40

Rod, Radius, Lower

1820660-067

Unavailable

41

Rivet

7621477

$1.19

41

Rivet

7621477

$1.19

42

Bushing

5410383

Unavailable

43

Bar, Sway

5243397-067

$53.59

44

Washer

7555904

$1.49
