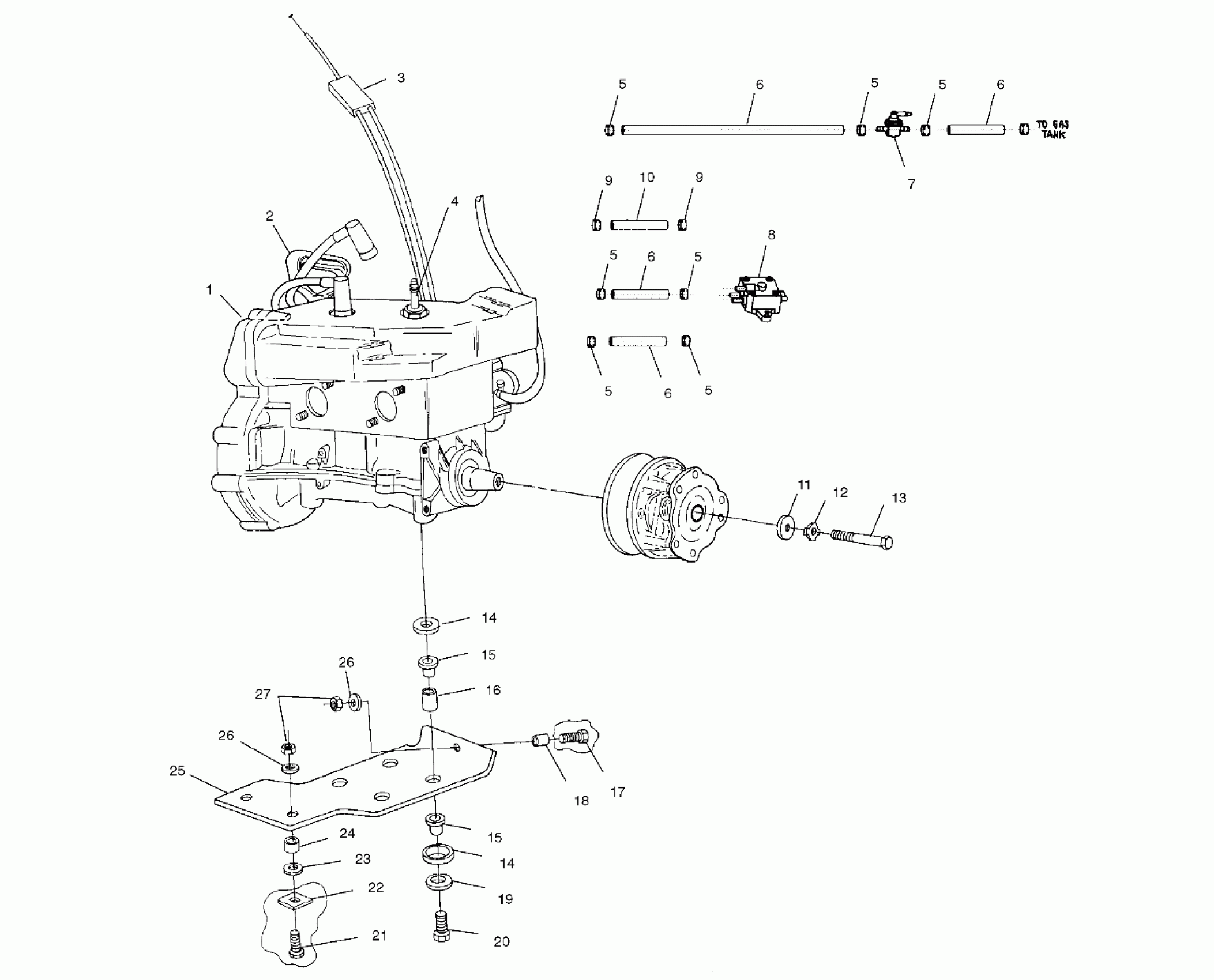

Polaris INDY 340 TOURING - S02LT3AS ENGINE MOUNTING - S02LT3AS (4968436843B09) Diagram

#

Description
Price

1

Engine, EC34-2PM-02/04 Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization is requi

3084620

Unavailable

2

Handle, Recoil

5431499

Unavailable

3

Cable, Throttle Control

7080557

$154.99

4

Plug, Spark, NGK BR8ES

3070156

$3.99

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

Line, Fuel

8350018-600

Unavailable

6

Line, Fuel

8350018-600

Unavailable

6

Line, Fuel

8350018-600

Unavailable

6

Line, Fuel

8350018-600

Unavailable

7

VALVE, FUEL

7052248

$24.27

8

Asm., Fuel Pump (See Fuel Pump Pg. C3, Ref. 3)

-------

Unavailable

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

10

Line, Fuel

8450040-600

Unavailable

11

Washer, Clutch Retainer

5010278

Unavailable

12

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

13

BOLT

7512566

$30.79

14

Cap, Dampener, Vibration

5221901

Unavailable

14

Cap, Dampener, Vibration

5221901

Unavailable

15

Dampener, Vibration

5410320

Unavailable

15

Dampener, Vibration

5410320

Unavailable

16

Bushing, Motor Mount

5010163

Unavailable

17

Bolt, Carriage

7515503

$5.43

18

Bushing, Threaded

5020840

$9.03

19

Washer, Spring Lock

7553101

$3.99

20

Bolt

7512515

$3.19

21

Bolt

7515510

$3.59

22

Plate, Spacer

5211201

$4.95

23

WASHER

7555823

$3.99

24

Bushing, Threaded

5020562

$3.83

25

Plate w/Hole, Motor Mount

5224836

Unavailable

26

Washer, Flat

7555761

$2.39

26

Washer, Flat

7555761

$2.39

27

Nut, FLEXLOC

7542403

$3.99
