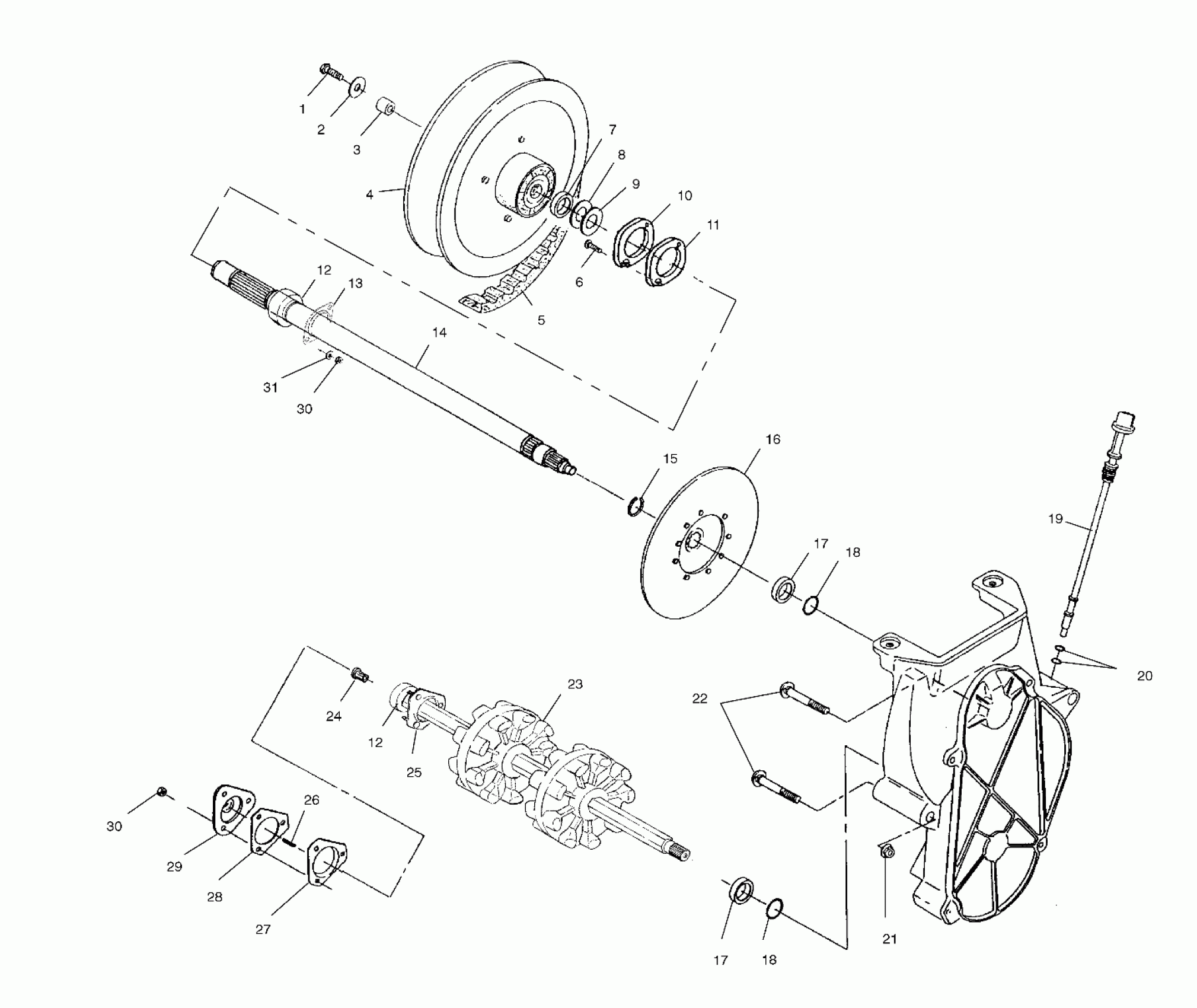

Polaris INDY 340 TOURING - S02LT3AS DRIVE TRAIN - S02LT3AS (4968436843B02) Diagram

#

Description
Price

1

SCREW

7517581

$1.59

2

Washer

7555701

$3.99

3

Spacer, Driven Clutch

5020645

Unavailable

4

Asm., Driven Clutch (See Driven Clutch Pg. B8, Ref. 10)

-------

Unavailable

5

Belt, Drive

3211058

$79.99

6

Bolt

7512377

$4.79

7

Spacer

5020596

Unavailable

8

WASHER

7555864

$2.39

9

Bushing

7556509

Unavailable

10

Flangette, 2-Bolt

5222647

$24.27

11

Gasket

5830135

$2.83

12

BEARING

3514525

$31.99

12

BEARING

3514525

$31.99

13

Flangette, 2-Bolt

5222393

Unavailable

14

Asm., Jackshaft (Incl. 15)

1332172

$161.89

15

RING, RETAINING

7710422

$3.99

16

Disc, Brake

1910403

Unavailable

17

SLEEVE, SEAL

5020588

$23.99

17

SLEEVE, SEAL

5020588

$23.99

18

O-RING

5410613

$1.99

18

O-RING

5410613

$1.99

19

Dipstick

5431419

Unavailable

20

O-RING

5410675

$1.60

21

Nut, Flange

7542423

$3.99

22

Bolt

7515428

$4.79

23

Asm., Drive Shaft (Incl. 24,25)

1590283

Unavailable

24

Bushing, Metal, Speedometer

3280019

$11.99

25

Flangette w/Screws

1012945

$114.99

26

Key, Square, Speedometer

3280017

$13.75

27

Flangette

5243529

$13.75

28

Gasket, Drive Adaptor

5830012

$2.41

29

Adaptor w/Zerk, Drive

3280116

$101.17

30

NUT-5/16-18 NYLOK-Y

7542324

$1.49

30

NUT-5/16-18 NYLOK-Y

7542324

$1.49

31

WASHER-.344X.688X.063 FL-Y

7558402

$1.49
