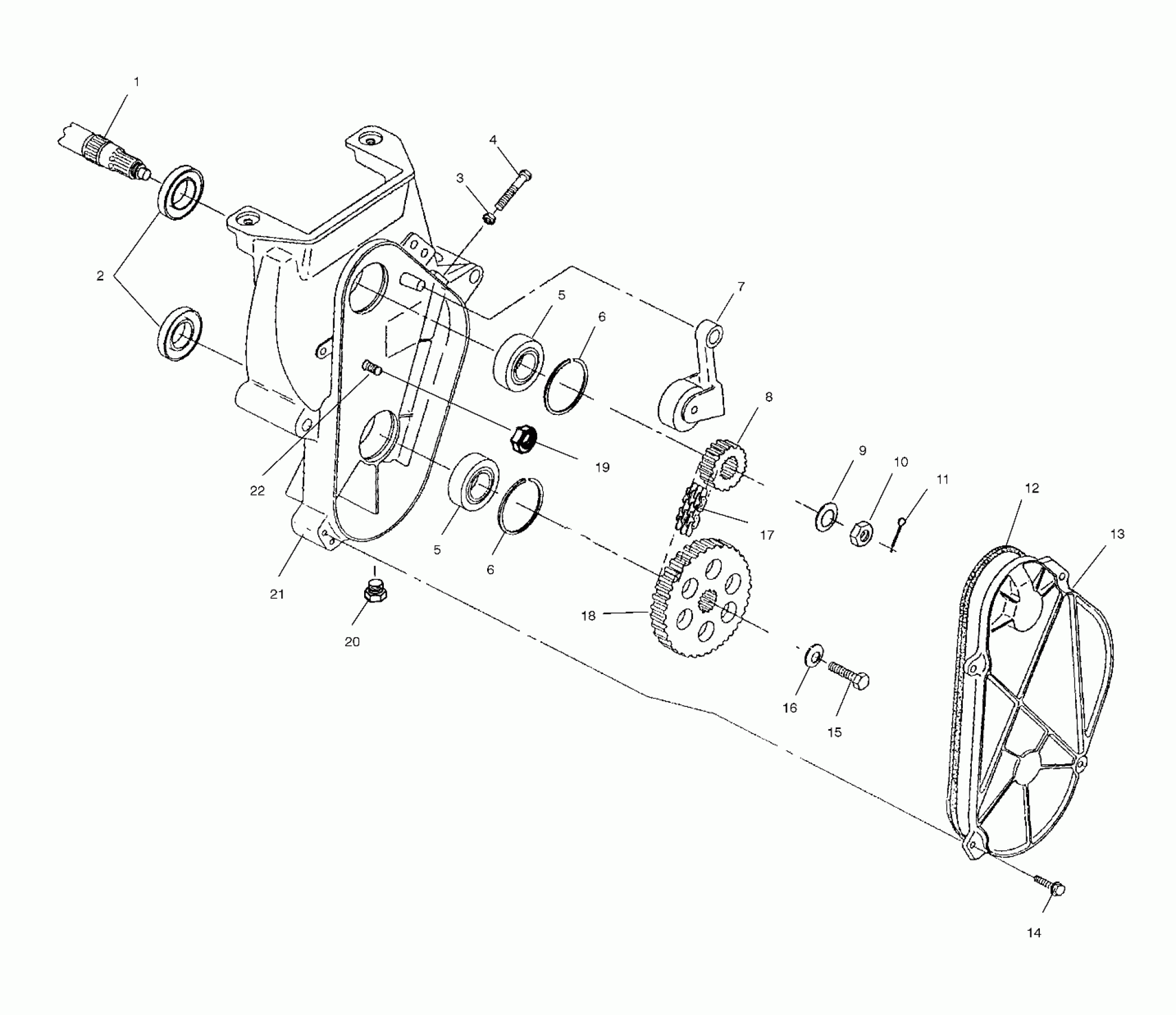

Polaris INDY 340 TOURING - S02LT3AS CHAINCASE - S02LT3AS (4968436843B01) Diagram

#

Description
Price

1

Asm., Jackshaft (See Drive Train Pg. B2, Ref. 14)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

NUT

7542404

$1.59

4

Screw

7515551

$6.39

5

Bearing

3514309

$15.87

5

Bearing

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

Pin, Chain Tightener

7662210

Unavailable

7

Bearing, Chaincase Idler

3553002

$11.99

7

Wheel, Idler

5630123

Unavailable

7

WASHER, THRUST

7558702

$1.59

7

Asm., Tightener, Gearcase

1332213

$159.99

7

Block, Tighterer w/Angle

5630958

$159.99

8

Sprocket, 17T, 3/4W

3221093

$44.99

9

Washer, Spring

7571620

$7.19

10

Nut, FLEXLOC

7542811

Unavailable

11

PIN, COTTER

7661401

$1.49

12

Gasket, Chaincase

5410277

$24.99

13

Cover, Chaincase

5630968

Unavailable

14

SCREW

7512242

$2.39

15

Bolt

7517979

$3.99

16

Washer, Spring

7571618

$6.39

17

Chain, Hyvo, 66P, 3/4W

3221113

$124.99

18

Sprocket, 41T, 3/4W

3222101

$40.46

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG

7052115

$5.65

21

Chaincase

5132158

Unavailable

22

Screw

7515477

$34.99
