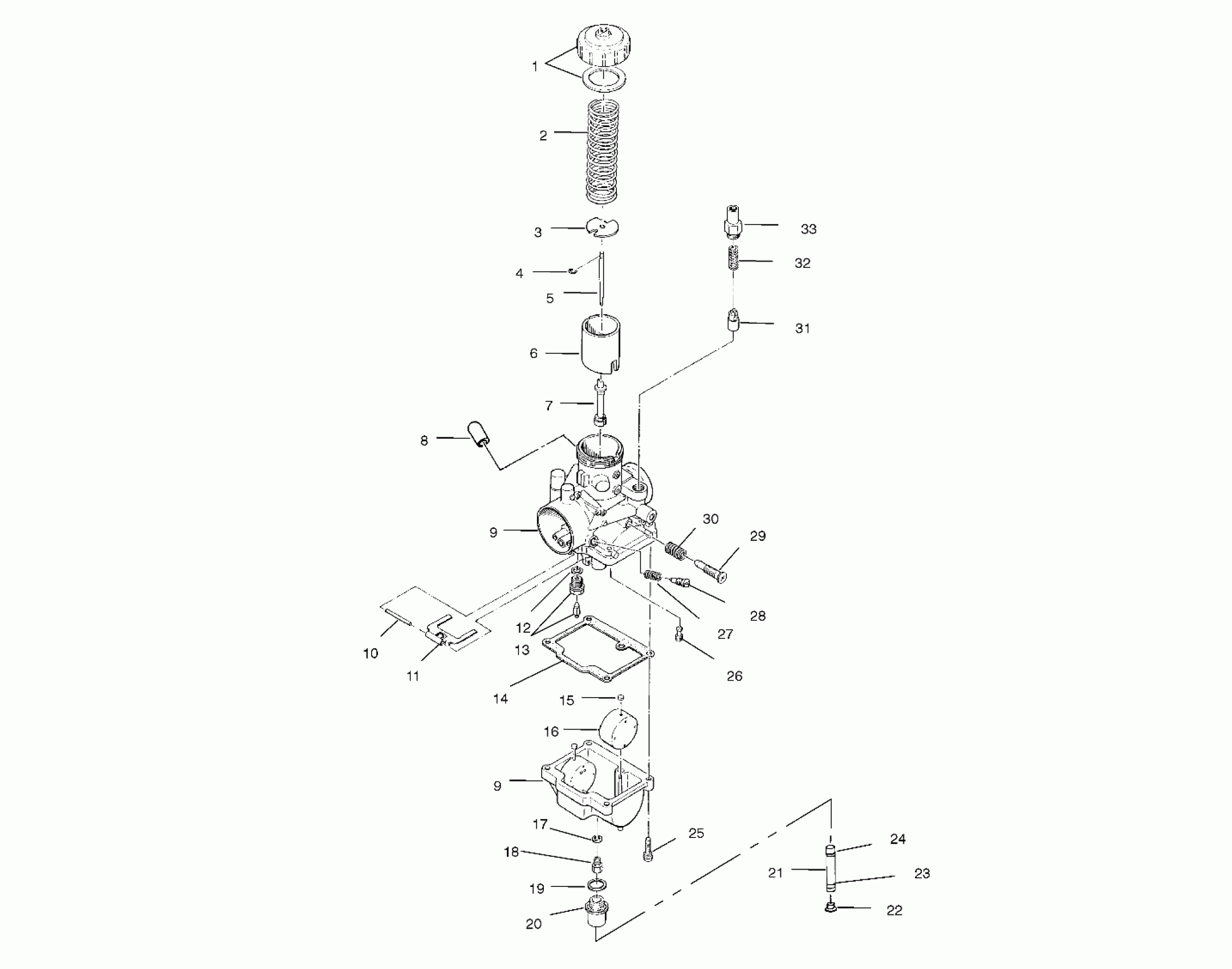

Polaris INDY 340 TOURING - S02LT3AS CARBURETOR - S02LT3AS (4968436843C06) Diagram

#

Description
Price

1

Asm., Mixing Chamber Top (Incl. Gasket)

3130060

Unavailable

2

Spring, Throttle

3130354

$28.32

3

Plate, Throttle

3130002

$20.22

4

E-RING

3130508

$6.46

5

Jet Needle (5DP7-2)

3130356

$24.27

6

Throttle Valve (2.5)

3130468

$36.41

7

Needle Jet 0-6 (169)

3130469

$32.37

8

CAP

3130479

$14.56

9

Asm., Carburetor (Incl. 1-20,25-33)

3130688

Unavailable

9

Asm., Carburetor (Incl. 1-20,25-33)

3130688

Unavailable

10

PIN, FLOAT

3130361

$8.89

11

Arm, Float

3130018

$24.27

12

Packing, Needle Valve

3130017

$4.03

13

Needle Valve (1.5)

3131146

$48.56

14

Gasket, Float Chamber

3130020

$16.17

15

Cap

3130237

$4.03

16

Float

3130021

$40.46

17

WASHER

3130014

$1.59

18

Main Jet (#150)

3130113

Unavailable

19

O-RING

3130239

Unavailable

20

Fitting, Sediment

5020476

$10.63

21

Line, Fuel

8450045-153

$99.99

22

Plug, Trap

5431893

$12.94

23

Clamp, Hose

7080544

Unavailable

24

Clamp, Hose

7080534

$1.59

25

Screw and Washer

3130025

$3.19

26

Pilot Jet (#35)

3130066

$8.89

27

Spring, Air Adjuster

3130012

$8.89

28

Screw, Air

3130011

$19.99

29

Screw, Throttle Stop

3130324

$19.84

30

SPRING, THROTTLE ADJUSTER

3130010

$8.89

31

Plunger

3130328

$32.37

32

Spring, Plunger

3130006

$8.89

33

Cap, Plunger

3130359

$14.56
