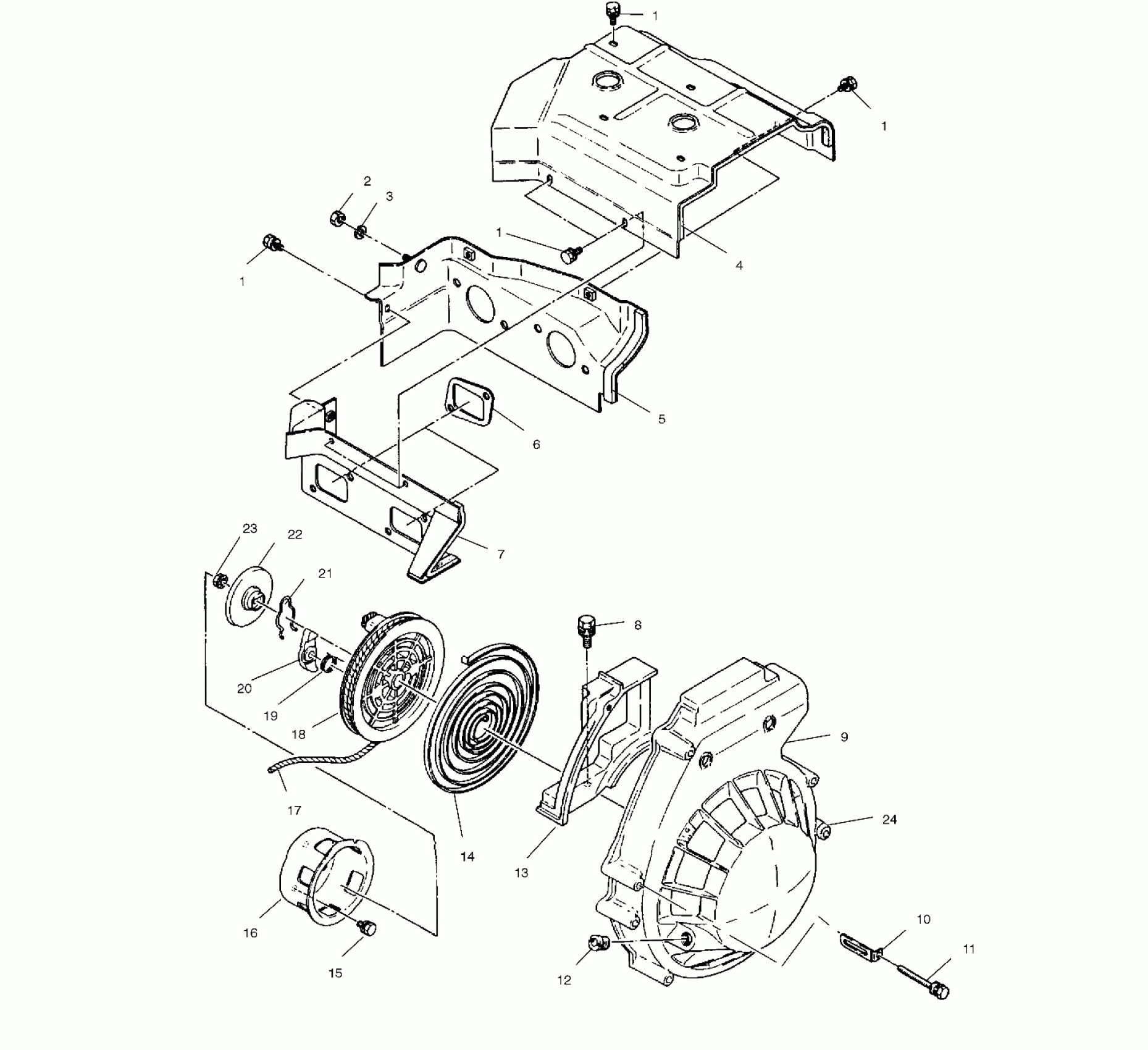

Polaris INDY 340 TOURING - S02LT3AS BLOWER HOUSING and RECOIL - S02LT3AS (4968436843C02) Diagram

#

Description
Price

1

Bolt and Washer

3083715

$0.63

1

Bolt and Washer

3083715

$0.63

1

Bolt and Washer

3083715

$0.63

1

Bolt and Washer

3083715

$0.63

2

Nut

3084375

$2.99

3

Washer, Spring

3080077

$2.39

4

Cylinder Baffle No. 1

3084420

Unavailable

5

Cylinder Baffle No. 2

3084421

$79.03

6

Gasket, Intake

3085846

Unavailable

7

Cylinder Baffle No. 3 (Incl. 6-7)

3085847

$81.17

8

Bolt and Washer

3081663

$1.49

9

Starter Case No. 2

3083589

$148.79

9

Asm., Recoil Starter (Incl. 9,12,14,17-23)

3083588

Unavailable

10

Clamp

3083590

$3.99

11

Bolt and Washer

3083729

$3.49

12

Guide, Rope

3083107

Unavailable

13

Blower Housing

3083591

$17.43

14

Spring, Spiral

3083376

$179.11

15

Bolt and Washer

3081665

$3.19

16

Pulley, Starting

3083108

$29.52

17

Rope, Starter (Bulk, Cut to Fit)

2870621

$34.99

18

Reel

3083377

$56.65

19

Spring, Return

3083463

$4.03

20

Ratchet

3083378

$20.22

21

Spring, Friction

3083379

$24.27

22

Plate, Friction

3083464

$28.32

23

Nut, Flange

3083381

$2.99

24

CLAMP-CABLE

7080367

$2.39
