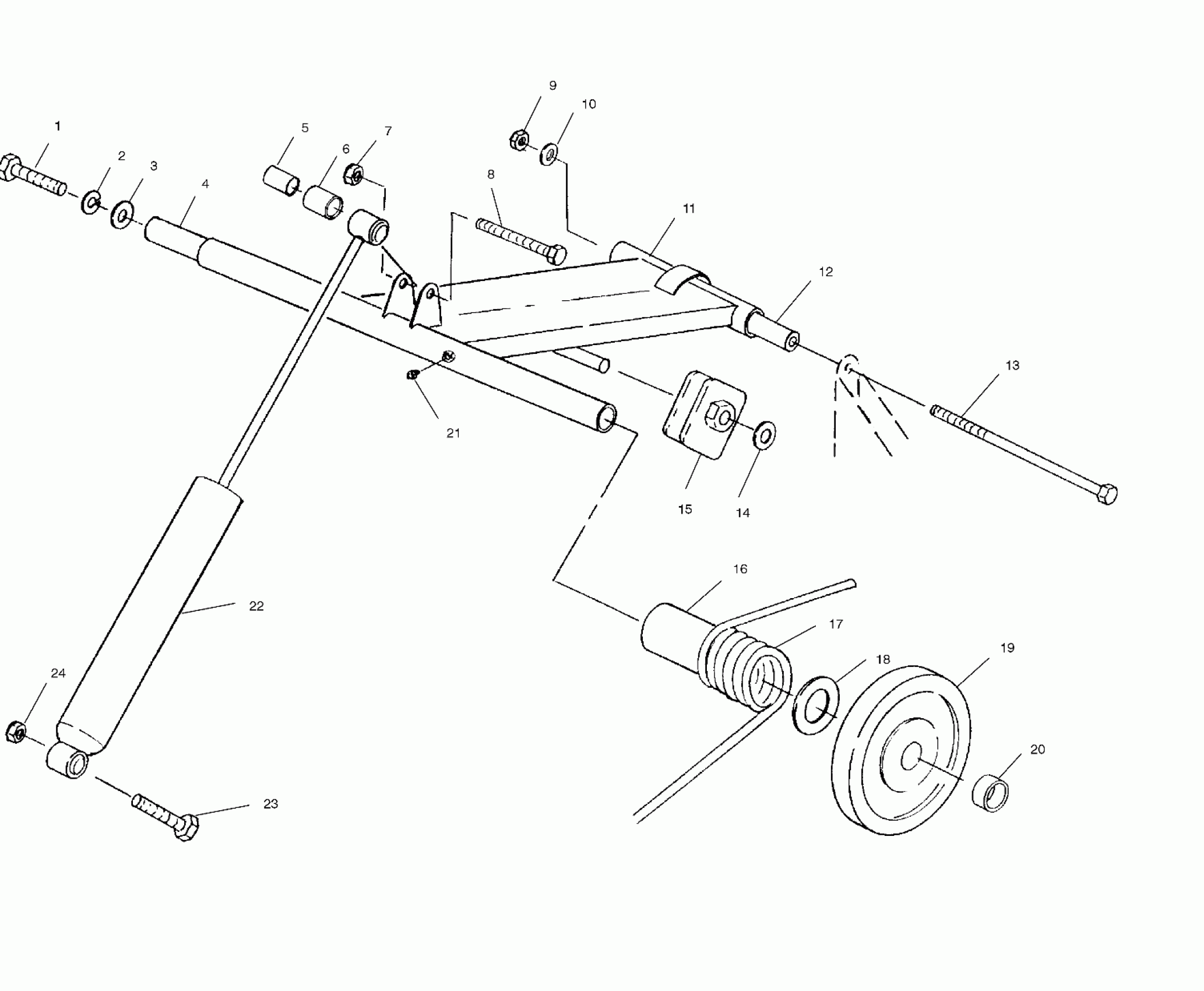

Polaris INDY 340 TOURING - S00LT3AS REAR TORQUE ARM - S00LT3AS (4958075807b008) Diagram

#

Description
Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

SHAFT,MTG,REAR

5131996

$56.65

5

BUSHING

5430537

$3.99

6

BUSHING,R.SHOCK

5333030

Unavailable

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

BOLT(10)

7512329

$3.99

9

NUT FLEX LOC,(10)

7542319

$4.39

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

ARM,RR TORQ ARM,XL,BLK

1541105-067

$186.65

12

Tube

5333483

$11.59

13

SCR,5/16-24X5.00

7517757

$3.99

14

CLIP-PUSH ON

7080394

$2.39

15

ROLLER-SPRING,ADJ,SQ,RMK,SKS

5433211

Unavailable

16

Tube, Spring

5521234

Unavailable

17

SPRING-TORSION.359SQ85�,LH,BLK (.359/85 Degree)

7041856-067

Unavailable

17

SPRING-TORSION.359SQ85�,RH,BLK (.359/85 Degree)

7041857-067

Unavailable

18

WASHER,THRUST(10)

7555877

$3.99

19

WHEEL,CARRIER,ASM

1543022

$69.99

19

BEARING-5/8I.D. (1 Per)

3513504

$9.59

19

RETAINER(10) (1 Per)

7710403

$2.63

20

SPACER-CARR.WHEEL

5332730

$14.99

21

FITTING-LUBRICATION 1/4-28

7080424

$4.79

22

SHOCK,REAR TRACK

7041740

Unavailable

23

BOLT(10) Substituted by 7515492

7512410

Unavailable

24

NUT LOCK(10)

7542411

$3.19
