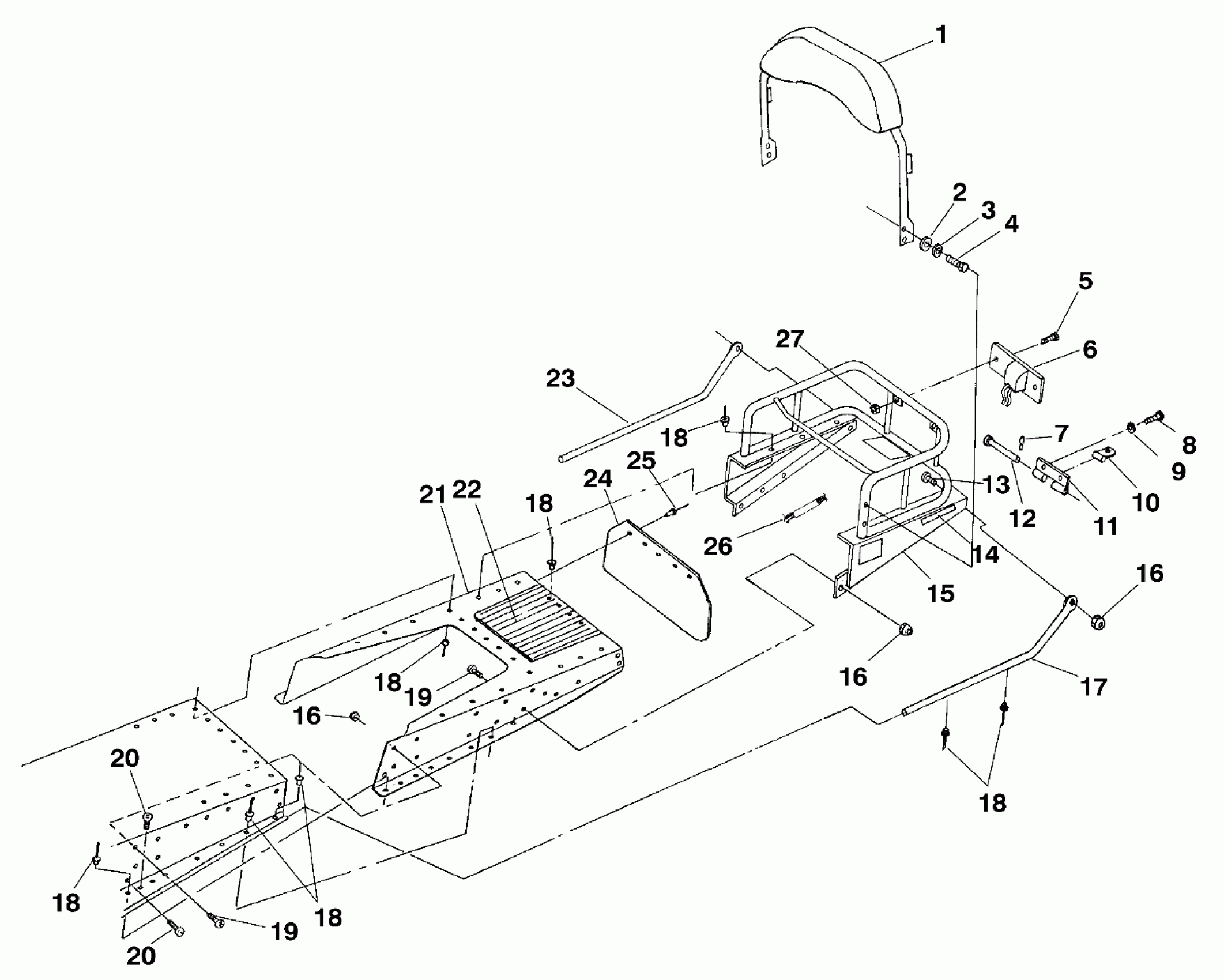

Polaris INDY 340 TOURING - S00LT3AS RACK and TUNNEL EXTENSION - S00LT3AS (4958075807a012) Diagram

#

Description
Price

1

COVER, BACKREST

2681265

$257.13

1

BACKREST ASM. (Incl. Cover)

2681356

$284.75

2

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

3

WASHER(10)

7552606

$4.79

4

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

5

SCREW(10)

7511989

Unavailable

6

BULB,T/L,EXT.DUTY

4030063

$24.99

6

TAILLIGHT ASM. (Incl. Bulb, Lens & Gasket)

4030041

$91.19

6

Gasket

4032015

Unavailable

6

LENS-TAIL-LIGHT

4032014

$36.41

7

COTTER PIN(10)

7661401

$1.49

8

SCREW(10)

7512490

$3.99

9

WASHER(10)

7552603

$1.49

10

HITCH WELD,BLK.(U.S.)

1011518-067

$31.75

11

HITCH WELD, BLK. Substituted by 2871178

1011624-067

Unavailable

12

CLEVIS PIN(10)

7662209

$9.59

13

BOLT, BLACK(10)

7512282

$1.49

14

REFLECTOR RED

2670070

$9.91

15

RACK,REAR,BLK.

2670129-067

Unavailable

16

NUT HEX-LOCK(10)

7542101

$3.99

16

NUT HEX-LOCK(10)

7542101

$3.99

16

NUT HEX-LOCK(10)

7542101

$3.99

17

TUBE,LH TUNNEL,BLK.

5224461-067

Unavailable

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

19

BOLT(10)

7515107

Unavailable

19

BOLT(10)

7515107

Unavailable

20

BOLT(10)

7515106

$2.39

20

BOLT(10)

7515106

$2.39

21

CLOSEOFF WELD,BLK

1012612-067

$81.17

22

Protector, Bed

5410619

$22.06

23

TUBE,RH TUNNEL,BLK.

5224466-067

$28.95

24

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

25

POP RIVET(50)

7621418

$1.49

26

Protector, Harness

5521246

$3.05

27

NUT(10)

7541925

$1.49
