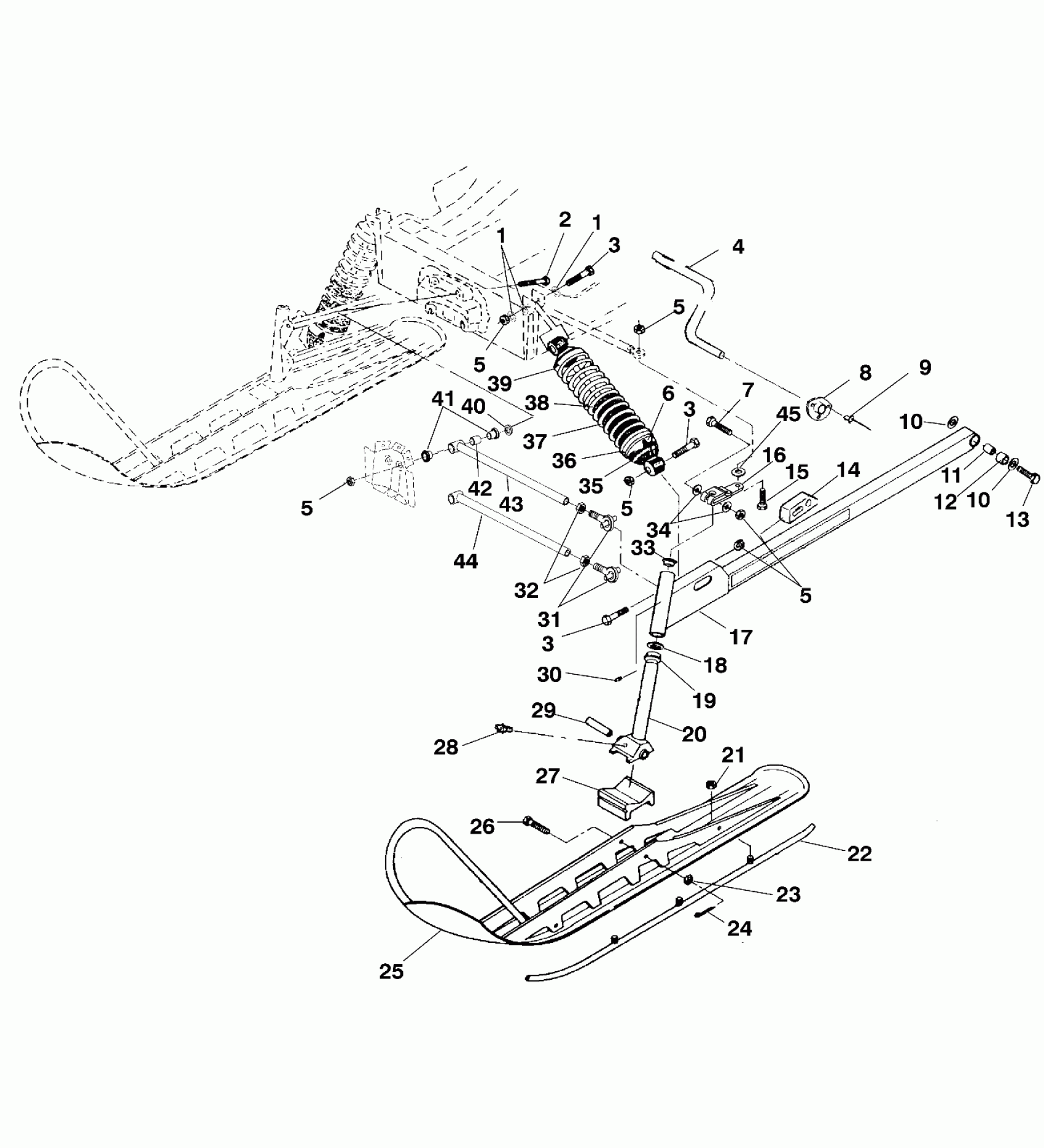

Polaris INDY 340 TOURING - S00LT3AS FRONT SUSPENSION and SKI - S00LT3AS (4958075807a013) Diagram

#

Description
Price

1

WASHER(10)

7555806

$1.49

1

WASHER(10)

7555806

$1.49

2

BOLT(10)

7515417

$4.79

3

BOLT(10)

7515415

$1.49

3

BOLT(10)

7515415

$1.49

3

BOLT(10)

7515415

$1.49

4

SWAY BAR,9/16,BLK

5243397-067

$53.59

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

SHOCK-IFS,NITREX

7041788

Unavailable

7

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

8

BUSHING-SWAYBAR

5410383

Unavailable

9

RIVET,(50)

7621477

$1.19

10

WASHER(10)

7555721

$1.49

10

WASHER(10)

7555721

$1.49

11

TUBE,TRAILING ARM

5010187

Unavailable

12

PIVOT-TRAILING ARM

5410382

Unavailable

13

BOLT(10)

7512557

$7.60

14

SLIDE-SWAYBAR

5410384

Unavailable

15

BOLT(10)

7515528

$8.79

16

Arm, Steering

5220326-067

Unavailable

17

ARM,LH TRLG,BLK.

1823136-067

Unavailable

17

ARM,RH TRLG,BLK.

1823137-067

$266.49

18

WASHER SPECIAL(10)

7556509

$1.59

19

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

20

SPINDLE, BLK.

6230073-067

Unavailable

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

SKAG,SHORT(20) (340)

1820267

$23.99

23

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

24

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

25

SKI, BLK.

1820333-067

Unavailable

26

BOLT(10)

7515462

$8.79

27

Stop, Rubber

5521231

Unavailable

28

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

29

BUSHING,PIVOT,(10)

5010158

$19.99

30

ZERK,FITTING,THREADED(10)

7080433

$1.49

31

ROD END,RH,WIDEBORE Substituted by 7061069

7060157

Unavailable

32

NUT JAM(10)

7542520

$2.39

33

BUSHING-FLANGE

3573909

$2.39

34

WSHR-.813X.406X.105-Y

7555832

$2.39

35

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

36

RING,SPRING PRELOAD ADJ.

5431734

$52.60

37

SPACER,SHOCK RETAINER(10)

5210953

$6.39

38

SPRING,COMP.,BLK.

7041261-067

$164.99

39

RETAINER-TOP

5220225

$10.39

40

WASHER(10)

7555797

$3.99

41

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

42

Bushing

5010252

$1.59

43

RADIUS ROD,UPPER,BLK

1820658-067

Unavailable

44

RADIUS ROD,LOWER,BLK

1820660-067

Unavailable

45

WASHER ,(10)

7555976

$3.99
