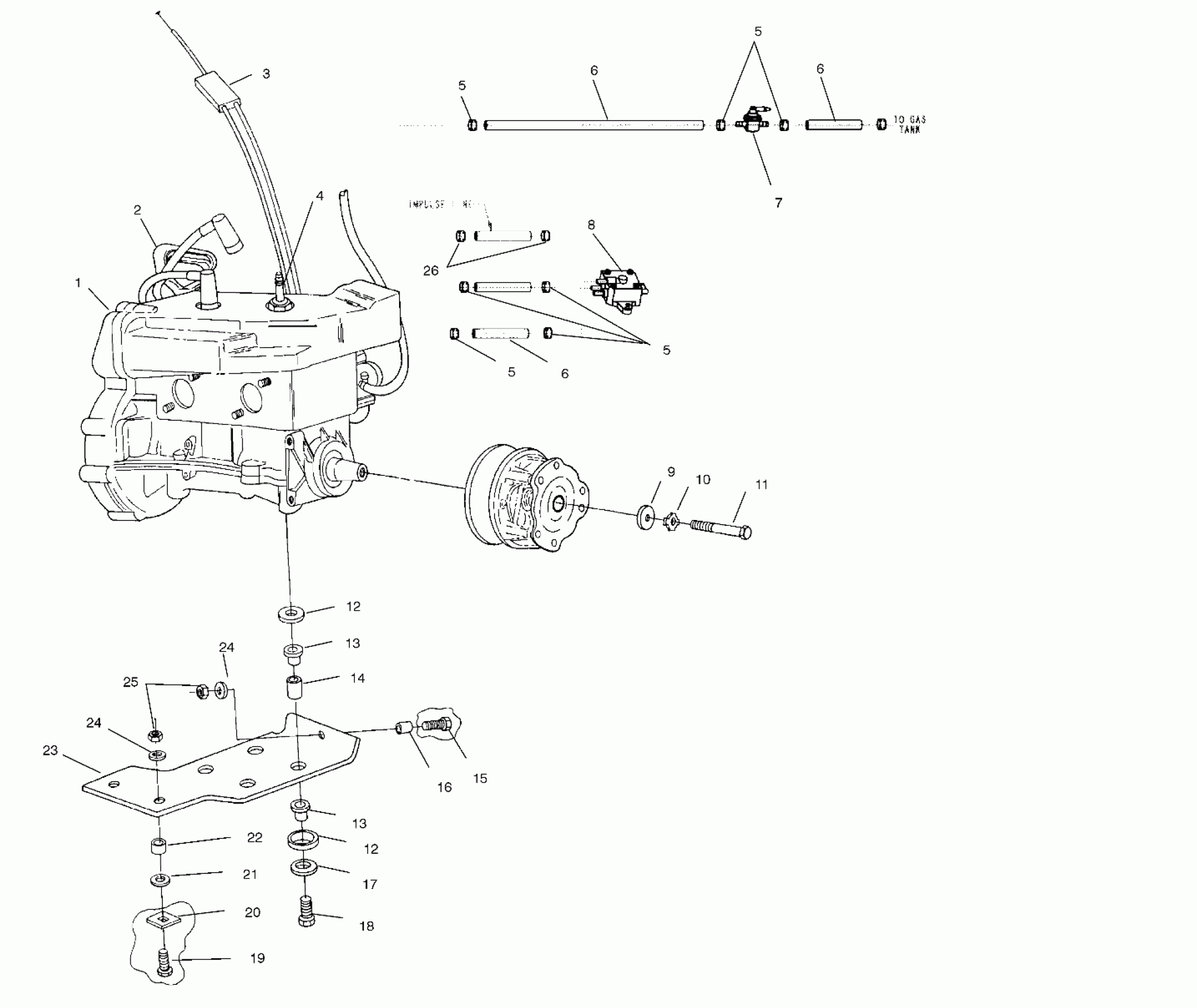

Polaris INDY 340 TOURING - S00LT3AS ENGINE MOUNTING - S00LT3AS (4958075807b011) Diagram

#

Description
Price

1

ENG.(S.B.)EC34-2PM-02/04 (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization is

3084620

Unavailable

2

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

3

CABLE, THROTTLE

7080557

$154.99

4

SPARKPLUG (10)

3070156

$3.99

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

6

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

6

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

7

VALVE,FUEL SHUT-OFF

7052060

Unavailable

8

Asm., Fuel Pump (See Fuel Pump Pg. C5, Ref. 3)

-------

Unavailable

9

WASHER,CLUTCH RETAINER

5010278

Unavailable

10

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

11

BOLT(10)

7512566

$30.79

12

CAP

5221901

Unavailable

12

CAP

5221901

Unavailable

13

DAMPNER-VIB.

5410320

Unavailable

13

DAMPNER-VIB.

5410320

Unavailable

14

BUSHING-MOTOR MT.

5010163

Unavailable

15

BOLT(10)

7515503

$5.43

16

BUSHING,THREADED

5020840

$9.03

17

WASHER LOCK(10)

7553101

$3.99

18

BOLT(10)

7512515

$3.19

19

BOLT(10)

7515510

$3.59

20

Plate, Spacer

5211201

$4.95

21

WASHER(10)

7555823

$3.99

22

BUSHING,THREADED

5020562

$3.83

23

PLATE,MOTOR MT,W/HOLE

5224836

Unavailable

24

WASHER(10)

7555761

$2.39

24

WASHER(10)

7555761

$2.39

25

NUT LOCK(10)

7542403

$3.99

26

HOSE CLAMP, RED

7080003

$1.49
