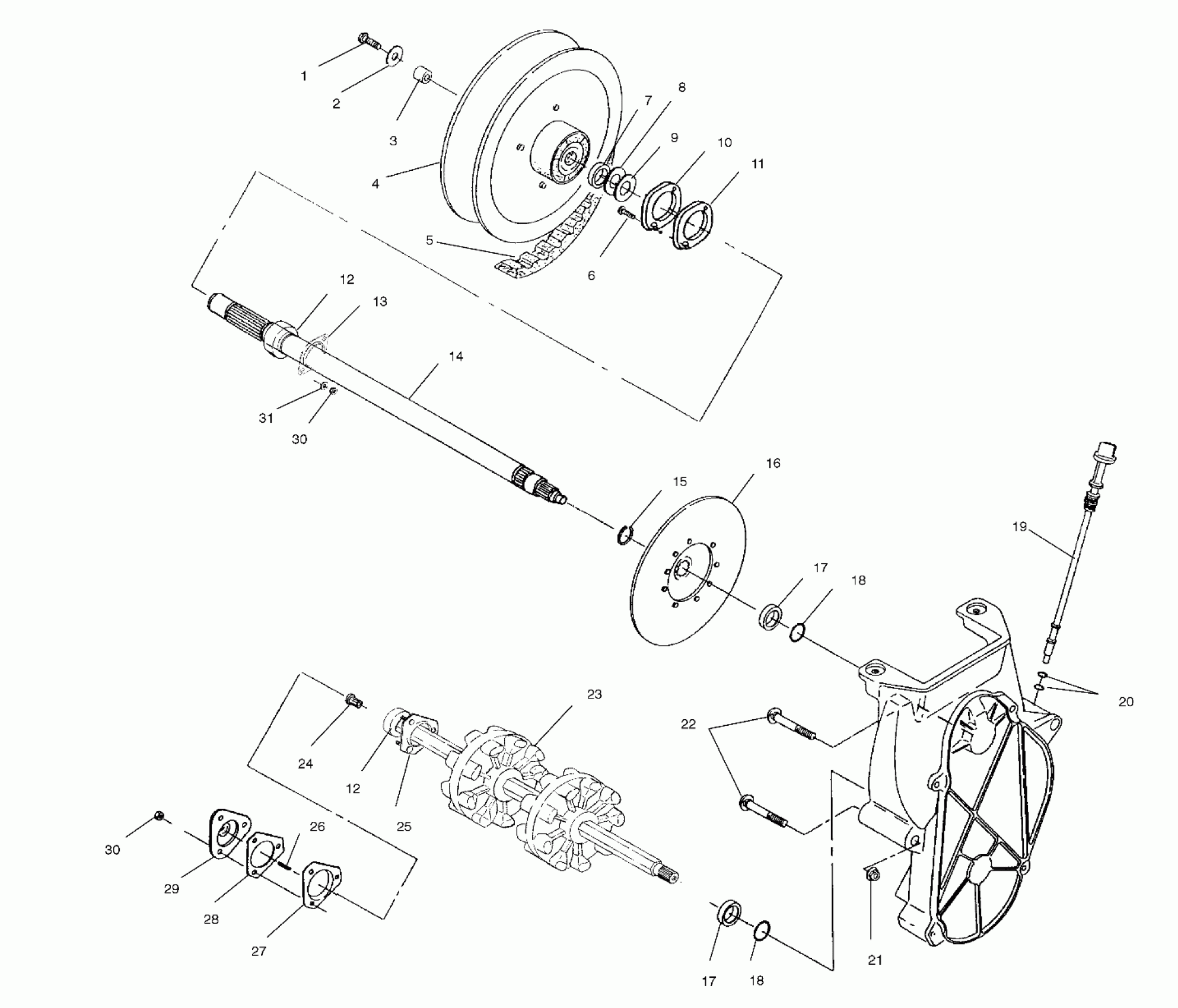

Polaris INDY 340 TOURING - S00LT3AS DRIVE TRAIN - S00LT3AS (4958075807b004) Diagram

#

Description
Price

1

SCREW(10)

7517581

$1.59

2

WASHER FLAT(10)

7555701

$3.99

3

SPACER,DRIVEN CLUTCH

5020645

Unavailable

4

Asm., Driven Clutch (See Footnote) (See Driven Clutch Pg. B10, Ref. 10)

-------

Unavailable

5

BELT, DRIVE(5)

3211058

$79.99

6

BOLT(10)

7512377

$4.79

7

SPACER, DRIVEN Substituted by 2200385

5020596

Unavailable

8

BUSHING(10)

7555864

$2.39

9

WASHER SPECIAL(10)

7556509

Unavailable

10

FLANGETTE,(GREASABLE)

5222647

$24.27

11

GASKET,JACKSHAFT,2-BOLT

5830135

$2.83

12

BEARING

3514525

$31.99

12

BEARING

3514525

$31.99

13

FLANGETTE, (2-BOLT)

5222393

Unavailable

14

JACKSHAFT,P-90,15T,W/BRG (Incl. 15)

1332172

$161.89

15

RING, RETAINING(10)

7710422

$3.99

16

BRAKE DISC,SNOW,6385 CR,ASM.

1910403

Unavailable

17

SLEEVE, SEAL

5020588

$23.99

17

SLEEVE, SEAL

5020588

$23.99

18

O RING,(10)

5410613

$1.99

18

O RING,(10)

5410613

$1.99

19

DIPSTICK Substituted by 1332143

5431419

Unavailable

20

O-RING

5410675

$1.60

21

NUT(10)

7542423

$3.99

22

BOLT(10)

7515428

$4.79

23

DRIVESHAFT ASM,2 DR,W/BRG,XHS (Incl. 24,25)

1590283

Unavailable

24

BUSHING METAL SPEEDO

3280019

$11.99

25

ASM.-FLANGETTE,W/SCREWS

1012945

$114.99

26

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

27

FLANGETTE-OFFSET,W/HOLE

5243529

$13.75

28

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

29

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

30

NUT-5/16-18 NYLOK-Y

7542324

$1.49

30

NUT-5/16-18 NYLOK-Y

7542324

$1.49

31

WASHER-.344X.688X.063 FL-Y

7558402

$1.49
