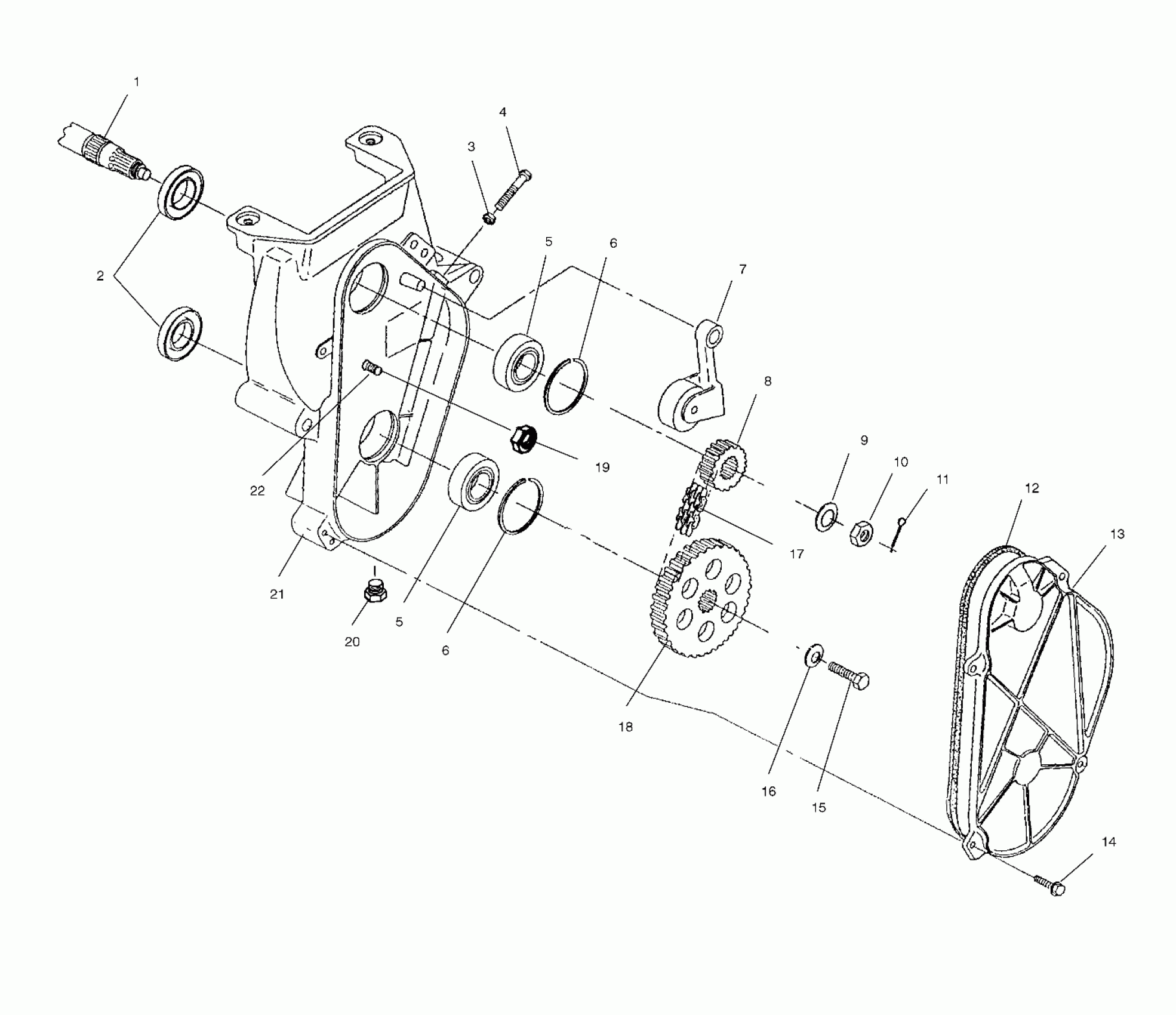

Polaris INDY 340 TOURING - S00LT3AS CHAINCASE - S00LT3AS (4958075807b003) Diagram

#

Description
Price

1

Asm., Jackshaft (See Footnote) (See Drive Train Pg. B4, Ref. 14)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

NUT(10)

7542404

$1.59

4

SCREW(10)

7515551

$6.39

5

BEARING,BALL

3514309

$15.87

5

BEARING,BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

PIN,CHAIN TIGHTENER

7662210

Unavailable

7

BEARING

3553002

$11.99

7

WHEEL,C/C IDLER

5630123

Unavailable

7

WASHER THRUST(10)

7558702

$1.59

7

TIGHTENER,CHAINCASE

1332213

$159.99

8

SPKT,17T,3/4W,15 SPL,HV,PM (3/4W)

3221093

$44.99

9

WASHER, SLOTTED(10)

7571620

$7.19

10

NUT

7542811

Unavailable

11

COTTER PIN(10)

7661401

$1.49

12

GASKET-CHAINCASE

5410277

$24.99

13

COVER-CHAINCASE,CAST,6.625

5630968

Unavailable

14

SCREW(10)

7512242

$2.39

15

SCREW(10)

7515350

$3.97

16

WASHER(10)

7571618

$6.39

17

CHAIN,HYVO 66 P,3/4W (3/4W)

3221113

$124.99

18

SPKT,41T,15T SPL,HYVO,PM (3/4W)

3222101

$40.46

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG(10)

7052115

$5.65

21

CHAINCASE-MACH,6.625 CD

5132158

Unavailable

22

BOLT(10)

7515477

$34.99
