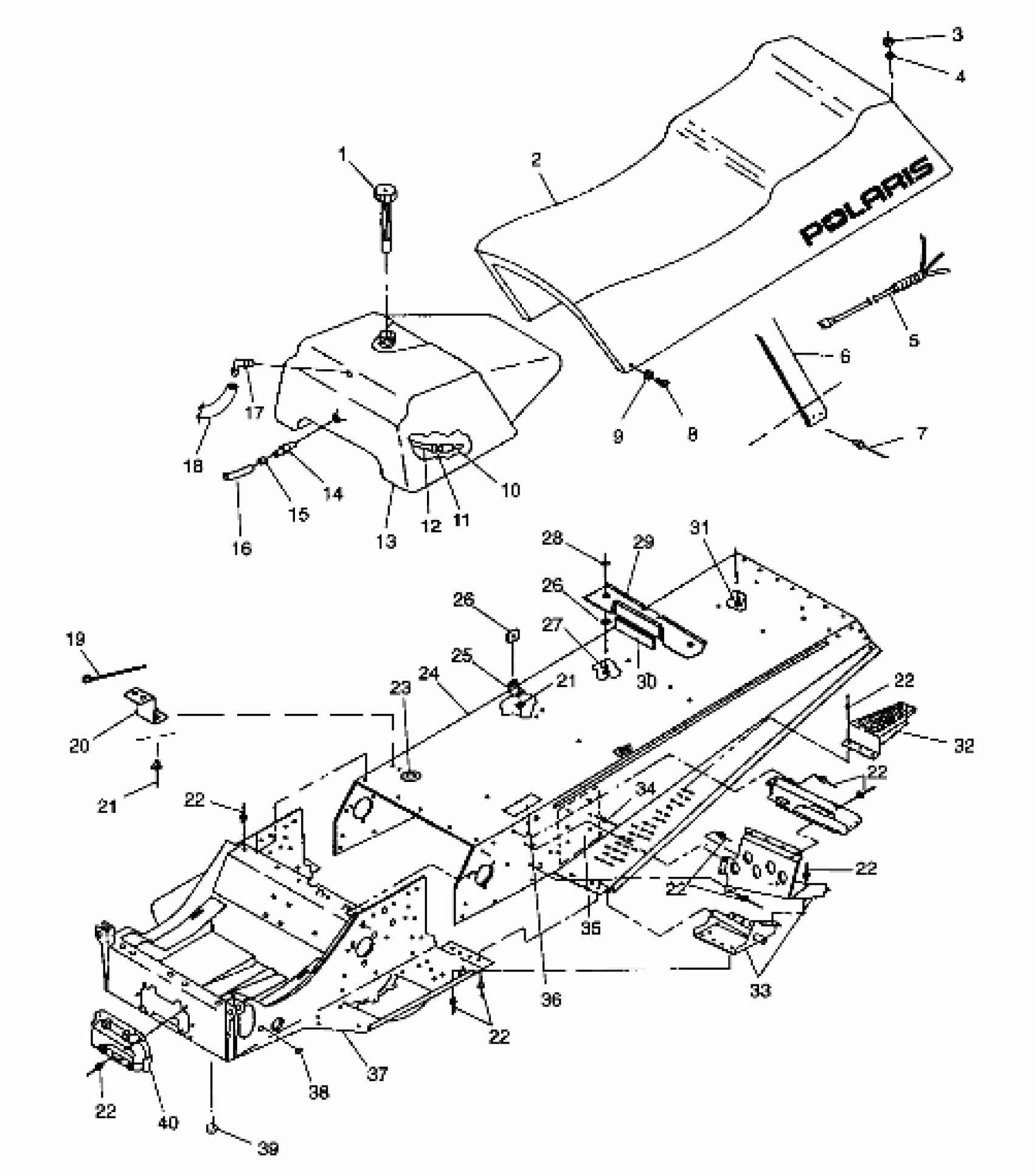

Polaris INDY 340 TOURING - 099LT3AS TUNNEL and SEAT - 099LT3AS (4946704670a005) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511245

Unavailable

2

SEAT ASM. (Incl. 5)

2682379

Unavailable

2

COVER ASM,SEAT,2-UP

2682380

Unavailable

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

WASHER WROUGHT(10)

7558403

$4.79

5

HARNESS-TAILLIGHT

2460237

Unavailable

6

Belt, Seat

7080434

$14.40

7

RIVET(50)

7621472

$1.49

8

SCREW(10)

7515111

$7.19

9

WASHER(10)

7555798

$1.49

10

FUELPICKUP,W/STRAINER

7052037

$12.94

11

RING, COMPRESSION(10)

7080402

$1.60

12

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

13

TANK,FUEL,(LITE GT) Substituted by 2520179 (Incl. 10-14,17,18)

2511214

Unavailable

14

FITTING - OUTLET(10)

7052023

$24.99

15

CLAMP-HOSE, (LARGE GREEN) (Green)

7080307

$1.49

16

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

17

FITTING,90 DEG,1/8,(10)

7052095

$4.79

18

FUELLINE,3MMX7MM

8450061-600

Unavailable

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

BRKT,STAND,BLK.

5220520-067

$4.13

21

RIVET(50)

7621453

$3.19

21

RIVET(50)

7621453

$3.19

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

23

GROMMET RUBBER

5410021

Unavailable

24

TUNNEL,X-LITE,133 (Incl. 26,34)

1012598

Unavailable

25

BRKT,CONSOLE/SEAT MT.

5222452-067

$25.59

26

SPEED NUT(10)

7670021

$6.99

26

SPEED NUT(10)

7670021

$6.99

27

BOLT(10)

7512193

$2.39

28

NUT-LOCK(10)

7542122

$1.49

29

STRAP,GASTANK,BLK.

5222330-067

Unavailable

30

CUSHION,TANK H.D.

5420126

Unavailable

31

BOLT(10)

7512331

$3.99

32

FOOTREST,LH REAR

5220893

Unavailable

32

FOOTREST,RH REAR

5220894

$32.15

32

PAD,LH FOOT SAFETY

5830007

$7.89

32

PAD,RH FOOT SAFETY

5830008

$4.92

33

FOOTREST ASM,LH

1011830

$140.79

33

FOOTREST ASM,RH,(STARLITE)

1011826

Unavailable

34

RIVET ,(50)

7661837

$1.49

35

PAD,FR.SUSP.MT,(XL)

5211705-067

$6.63

36

Pad, Air Box

5810502

Unavailable

37

BULKHEAD,BLK

1012587-067

$649.99

38

PLUG, HOLE(10)

7080416

$5.65

39

PLUG-HOLE

7080398

$4.84

40

MOUNT-RADIUS ROD

5630924

Unavailable
