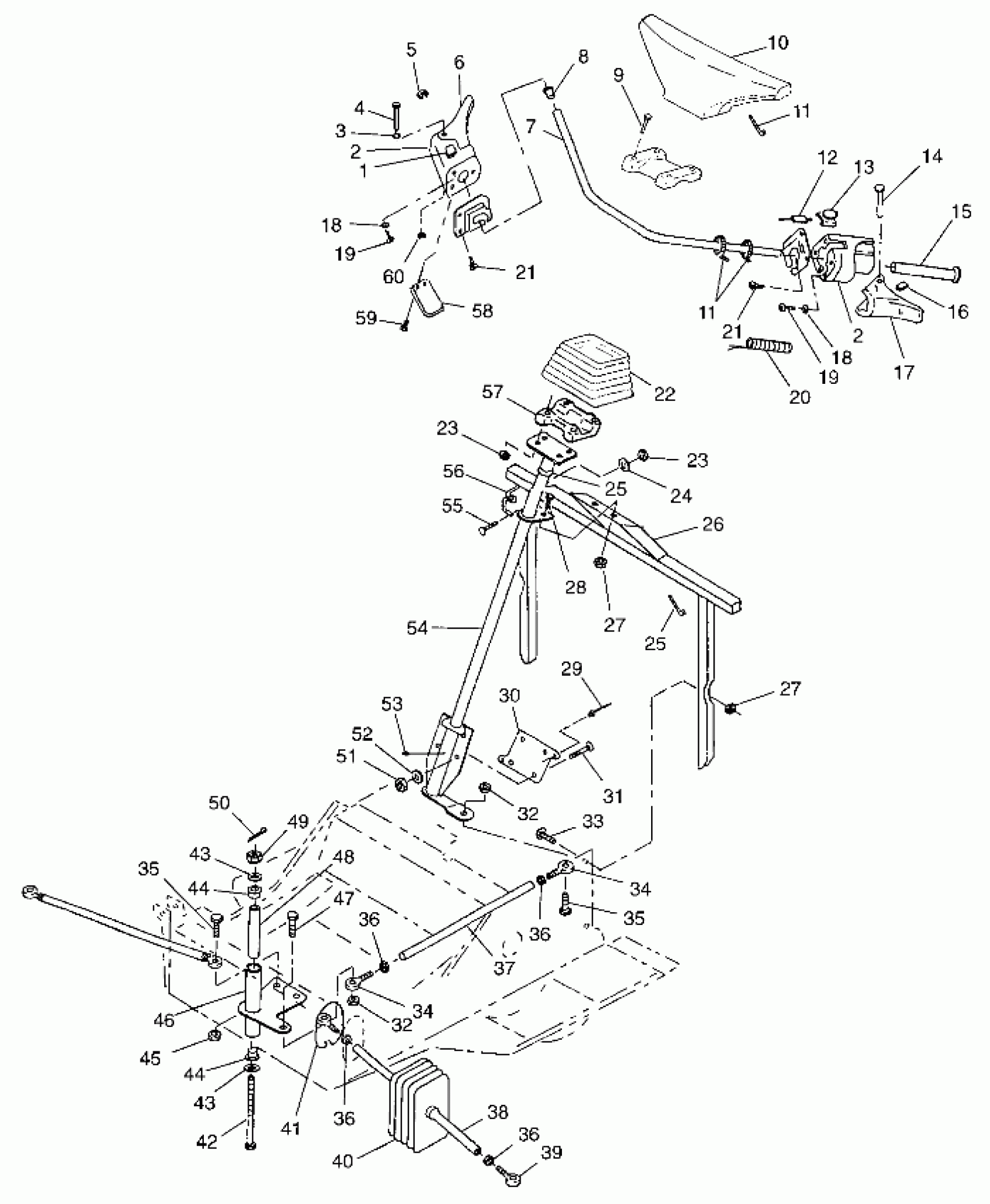

Polaris INDY 340 TOURING - 099LT3AS STEERING - 099LT3AS (4946704670b001) Diagram

#

Description
Price

1

SWITCH,AUX.SHUT-OFF

4110106

$94.99

2

BLOCK,THROTTLE/BRAKE

5431592

$49.99

2

BLOCK,THROTTLE/BRAKE

5431592

$49.99

3

WASHER(10)

7555730

$3.99

4

PIN-RETAINING .186X1.780-AL

7661624

$12.79

5

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

6

LEVER-THROTTLE

5430601

Unavailable

6

LEVER,30 MM,W/HTR.

2010147

Unavailable

7

HANDLEBAR,BLACK,(LITE)

5224841-067

$43.75

8

CAPLUG(10)

7080467

Unavailable

9

SCREW,(10)

7517238

$4.79

10

PAD,HANDLEBAR

5432903

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

Switch, Brake Light

4110105

Unavailable

13

Switch, Dimmer

4110104

Unavailable

14

RIVET,(50)

7661617

$4.03

15

GRIP,H'BAR,SNOW

5432634

$24.27

16

CLIP-SPEED.(10)

7670044

$4.79

17

LEVER-BRAKE

5430602

$36.41

18

RIVET BURR(50)

7555727

$1.49

18

RIVET BURR(50)

7555727

$1.49

19

SCREW-SEMS(10)

7511848

$3.99

19

SCREW-SEMS(10)

7511848

$3.99

20

HEATER GRIP ASM.

2460313

Unavailable

21

SCREW(10)

7512465

$3.99

21

SCREW(10)

7512465

$3.99

22

BOOT,STEERING POST

5432827

Unavailable

23

NUT-LOCK(10)

7542122

$1.49

23

NUT-LOCK(10)

7542122

$1.49

24

WASHER,WROUGHT(10)

7558302

$1.59

25

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

25

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

26

HOOP,STRG,BLK.

1011863-067

$38.71

27

NUT, LOCK(10)

7542103

$5.59

27

NUT, LOCK(10)

7542103

$5.59

28

BOLT(10) Substituted by 7512269

7515101

Unavailable

29

RIVET-3/16-.090-.290

7661637

$1.49

30

BRKT, BOLT RETAINER

5222421

$5.52

31

BOLT(10)

7512377

$4.79

32

NUT LOCK(10)

7542411

$3.19

32

NUT LOCK(10)

7542411

$3.19

33

BOLT(10)

7512298

$3.99

34

ROD END,LH

7060166

$48.56

34

ROD END,RH

7060167

$48.56

34

ROD END,LH

7060166

$48.56

34

ROD END,RH

7060167

$48.56

35

BOLT(10)

7512404

$3.99

35

BOLT(10)

7512404

$3.99

36

NUT HEX(10)

7542401

$2.39

36

NUT

7542424

$1.49

36

NUT HEX(10)

7542401

$2.39

36

NUT

7542424

$1.49

36

NUT HEX(10)

7542401

$2.39

36

NUT

7542424

$1.49

36

NUT HEX(10)

7542401

$2.39

36

NUT

7542424

$1.49

37

ROD, DRAG LINK

5333005

Unavailable

38

ROD,TIE,BLK

5020910-067

Unavailable

39

ROD END, RH.

7060165

$48.56

39

ROD END, LH.

7060164

$48.56

40

BOOT, TIE ROD Substituted by 5411652

5410639

$19.84

41

RETAINER, BOOT

5222283

Unavailable

42

BOLT(10)

7512572

$13.19

43

WASHER(10)

7555817

Unavailable

43

WASHER(10)

7555817

Unavailable

44

BUSHING

5630371

$5.03

44

BUSHING

5630371

$5.03

45

NUT LOCK(10)

7542403

$3.99

46

FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067

1823141-067

$49.21

47

SCREW(10)

7515434

Unavailable

48

BUSHING, SPACER

5333009

$11.99

49

NUT, LOCK,(10)

7542503

$10.39

50

PIN COTTER(10)

7661203

$1.49

51

NUT FLEX-LOC(10)

7542303

$6.39

52

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

53

ZERK,FITTING,THREADED(10)

7080433

$1.49

54

POST,STEERING,BLK

1822589-067

Unavailable

55

BOLT(10)

7512193

$2.39

56

RINGMOUNT,RECOIL,BLK.

5224442-067

$21.43

57

BLOCK,HANDLEBAR

5630187-067

$44.99

58

HOLDER-WIRE

5432261

$24.27

59

SCREW(10)

7511858

$3.99

60

RING-RETAINING EXTERNAL

7710401

$3.99
