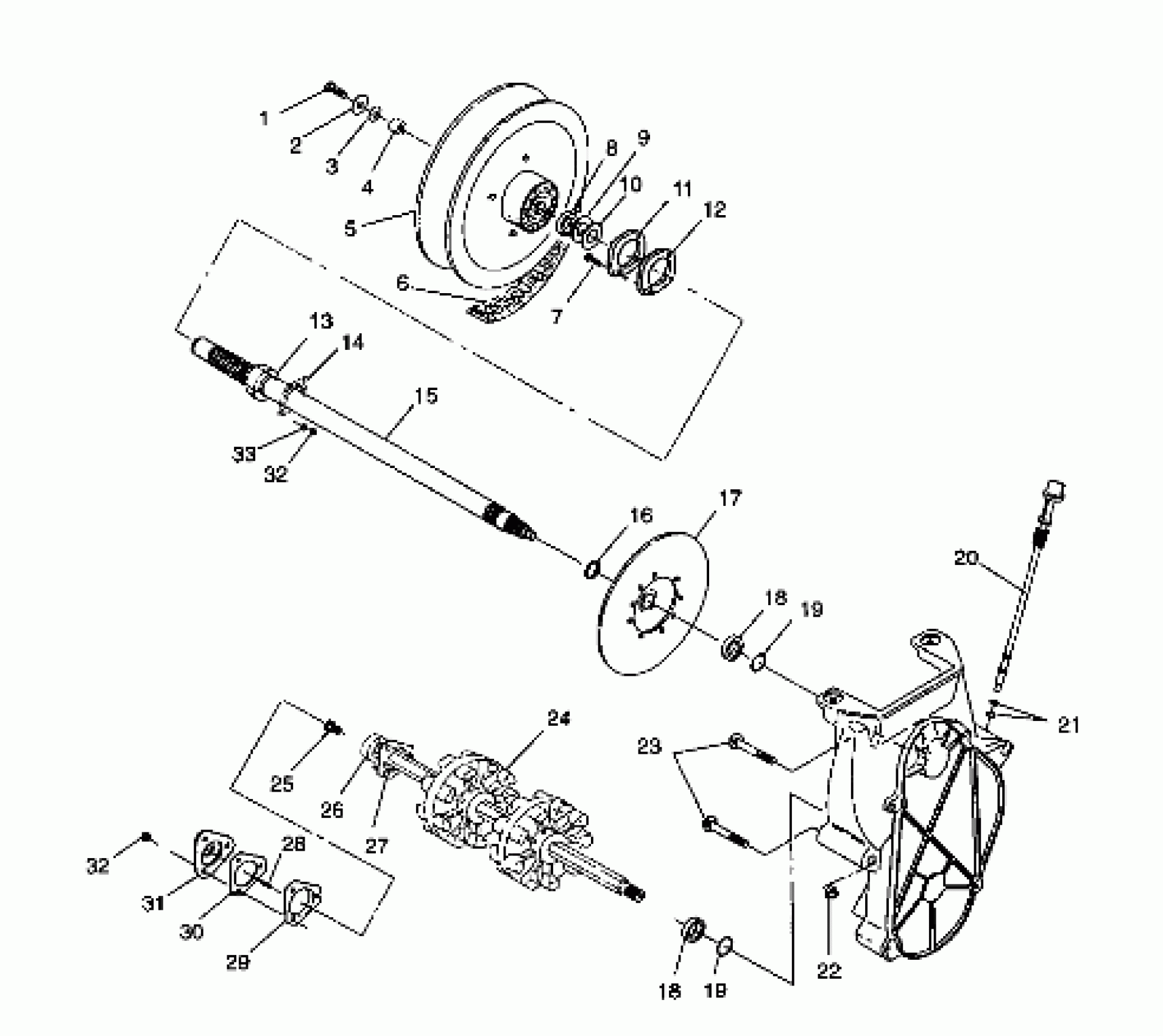

Polaris INDY 340 TOURING - 099LT3AS DRIVE TRAIN - 099LT3AS (4946704670b004) Diagram

#

Description
Price

1

SCREW(10)

7517581

$1.59

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER,DRIVEN CLUTCH

5020645

Unavailable

5

Asm., Driven Clutch (See Footnote) (See Driven Clutch Pg. B10, Ref. 10)

-------

Unavailable

6

BELT, DRIVE(5)

3211058

$79.99

7

BOLT(10)

7512377

$4.79

8

SPACER, DRIVEN Substituted by 2200385

5020596

Unavailable

9

BUSHING(10)

7555864

$2.39

10

WASHER SPECIAL(10)

7556509

Unavailable

11

FLANGETTE,(GREASABLE)

5222647

$24.27

12

GASKET,JACKSHAFT,2-BOLT

5830135

$2.83

13

BEARING

3514525

$31.99

14

FLANGETTE, (2-BOLT)

5222393

Unavailable

15

JACKSHAFT,P-90,15T,W/BRG (Incl. 16)

1332172

$161.89

16

RING, RETAINING(10)

7710422

$3.99

17

DISC ASM, BRAKE

1910086

Unavailable

18

SLEEVE, SEAL

5020588

$23.99

18

SLEEVE, SEAL

5020588

$23.99

19

O RING,(10)

5410613

$1.99

19

O RING,(10)

5410613

$1.99

20

DIPSTICK Substituted by 1332143

5431419

Unavailable

21

O-RING

5410675

$1.60

22

NUT(10)

7542423

$3.99

23

BOLT(10)

7515428

$4.79

24

DRIVESHAFT ASM,2 DR.W/BEARING Substituted by 1590283 (Incl. 25,26,27)

1590271

Unavailable

25

BUSHING METAL SPEEDO

3280019

$11.99

26

BEARING,LUBE. Substituted by 3514525

3514526

$31.75

27

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

28

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

29

FLANGETTE Substituted by 5243529

5241178

$13.75

30

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

31

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

32

NUT-5/16-18 NYLOK-Y

7542324

$1.49

32

NUT-5/16-18 NYLOK-Y

7542324

$1.49

33

WASHER-.344X.688X.063 FL-Y

7558402

$1.49
