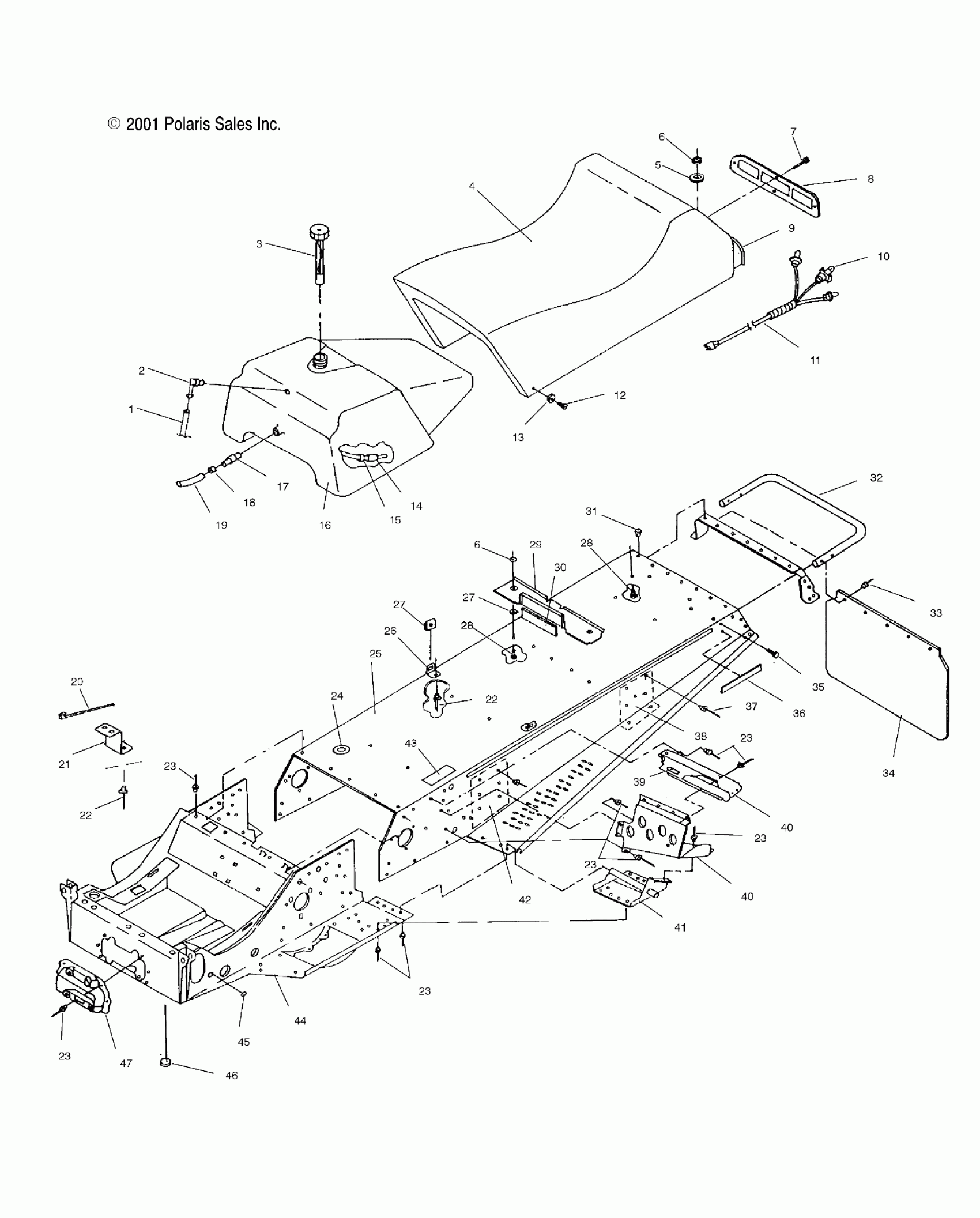

Polaris INDY 340 DELUXE - S02LD3AS TUNNEL and SEAT - S02LD3AS (4968406840A03) Diagram

#

Description
Price

1

Line

8450061-600

Unavailable

2

Fitting, 90 Degree

7052095

$4.79

3

Cap, Gas w/Gauge

2511245

Unavailable

4

Asm., Cushion, Seat (Incl. 7-11)

2682634

Unavailable

4

Cover, Seat

2682635

Unavailable

5

WASHER

7558302

$1.59

6

Nut, Nylok

7542122

$1.49

6

Nut, Nylok

7542122

$1.49

7

Screw

7511840

Unavailable

8

Lens

5430423

Unavailable

9

Housing, Taillight

5433341

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

10

Bulb, Taillight

4030024

$4.84

11

Harness, Taillight

2460399

Unavailable

12

Screw

7515111

$7.19

13

Washer, Nylon

7555798

$1.49

14

Pick-Up, Fuel w/Filter

7052243

Unavailable

15

RING, COMPRESSION

7080402

$1.60

16

Tank, Fuel (Incl. 1,2,14-17)

2520179

Unavailable

17

FITTING, OUTLET, DOUBLE

7052023

$24.99

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

LINE, FUEL

8350019-600

Unavailable

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

Bracket, Stand

5220520-067

$4.13

22

Rivet

7621453

$3.19

22

Rivet

7621453

$3.19

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

24

Grommet

5410021

Unavailable

25

Tunnel (Incl. 38,42)

1013573

Unavailable

26

Bracket, Console/Seat Mount

5222452-067

$25.59

27

Nut, Speed

7670021

$6.99

27

Nut, Speed

7670021

$6.99

28

BOLT, CARRIAGE

7512193

$2.39

28

BOLT, CARRIAGE

7512193

$2.39

29

Strap, Gas Tank

5222330-067

Unavailable

30

Cushion, Tank Hold-Down

5420126

Unavailable

31

Rivet, Semi-Tubular

7661836

$0.63

32

Bumper, Rear

5224766-067

Unavailable

33

RIVET

7621418

$1.49

34

Flap, Snow, Silver

5410394-1106

$121.02

35

Screw

7512252

Unavailable

36

Reflector, Red

2670133

$5.75

37

Rivet, Semi-Tubular

7661837

$1.49

38

Pad, Rear Suspension Mount, LH

5241670-067

$5.56

38

Pad, Rear Suspension Mount, RH

5241671-067

$8.73

39

EXTRUSION, CLUTCH GUARD

5521238

$6.46

40

Footrest, LH

1011830

$140.79

40

Footrest, RH

1011826

Unavailable

40

Footrest, LH

1011830

$140.79

40

Footrest, RH

1011826

Unavailable

41

Support, Trailing Arm, LH

1011792-067

Unavailable

41

Support, Trailing Arm, RH

1011793-067

Unavailable

42

Pad, Suspension Mount, Front

5211705-067

$6.63

43

Pad, Air Box

5810502

Unavailable

44

Bulkhead

1012587-067

$649.99

45

PLUG, HOLE

7080416

$5.65

46

Bushing, Open/Close

7080399

$2.39

47

Mount, Radius Rod

5630924

Unavailable
