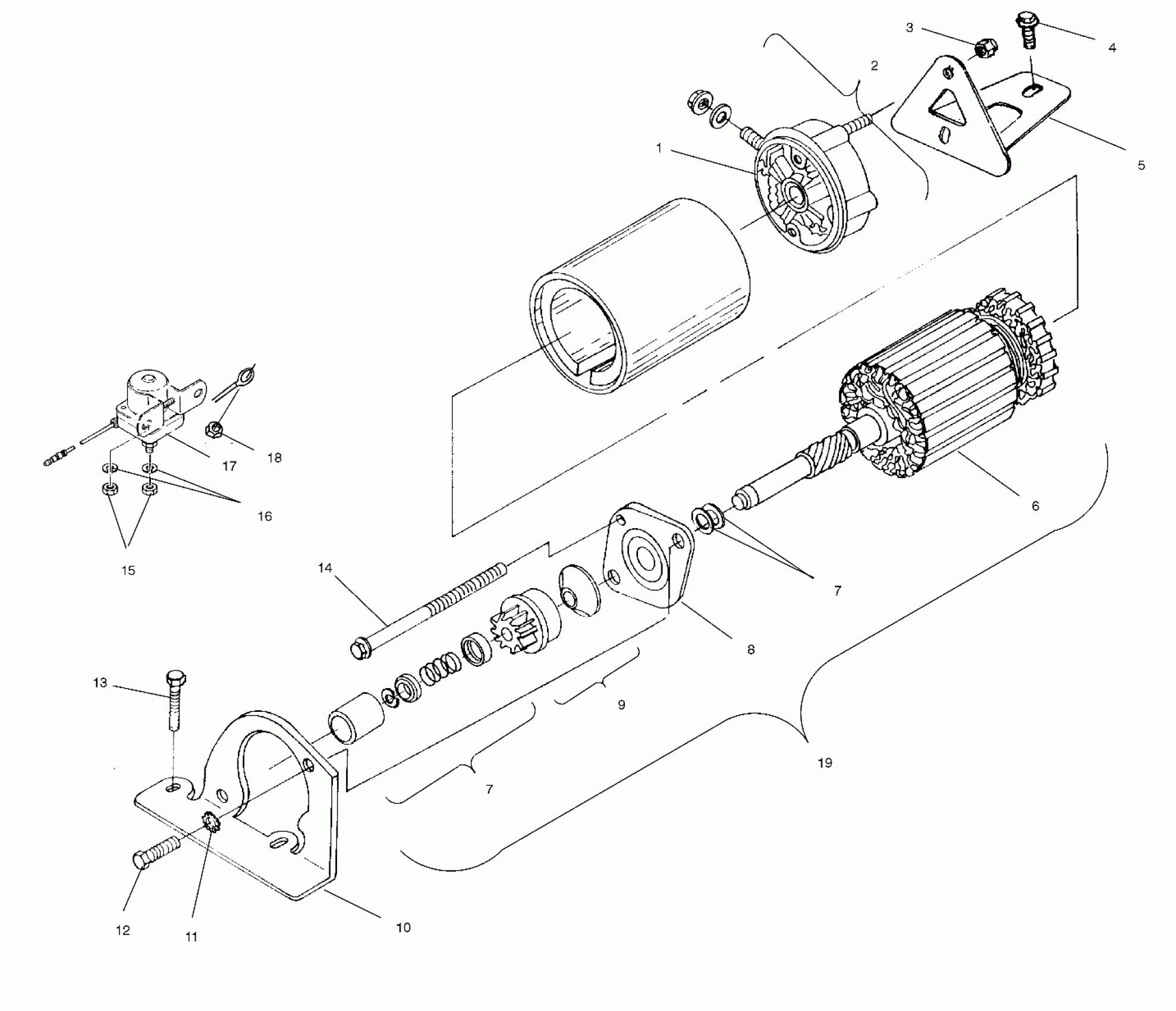

Polaris INDY 340 DELUXE - S02LD3AS STARTING MOTOR - S02LD3AS (4968406840C08) Diagram

#

Description
Price

1

Kit - Brush and Spring

2200759

$59.99

1

ASM., BRUSH AND SCREW

-------

Unavailable

1

ASM., BRUSH

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

Nut

-------

Unavailable

2

Kit - Asm., Commutator Cap (Incl.1)

2200758

$82.39

3

Nut

7542153

$1.59

4

SCREW

7516815

$6.39

5

Bracket, Starter, Rear

5241786

Unavailable

6

Kit - Armature Asm.

2200756

$169.99

7

Kit - Drive Hardware

2200755

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

SPACER

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

PINION, STOP

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

COVER, DUST

-------

Unavailable

7

Kit - Drive Hardware

2200755

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

SPACER

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

PINION, STOP

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

COVER, DUST

-------

Unavailable

8

Kit - Asm., Drive Cap

2200757

$59.99

9

Kit - Asm., Drive

2200754

Unavailable

9

PLATE, DRIVE

-------

Unavailable

9

PINION

-------

Unavailable

10

Bracket, Starter, Front

5241316

Unavailable

11

Washer, Split Lock

7552603

$1.49

12

Screw

7512492

$1.49

13

Screw

7516730

$6.39

14

Kit - Screw

2200753

$29.99

14

BOLT, THRU

-------

Unavailable

15

Nut

3082939

Unavailable

16

Washer, Spring

3080077

$2.39

17

Switch, Magnetic (Incl. 15,16)

3083211

Unavailable

18

Nut, FLEXLOC

7542103

$5.59

19

Motor-Starter, Domestic

4170006

Unavailable
