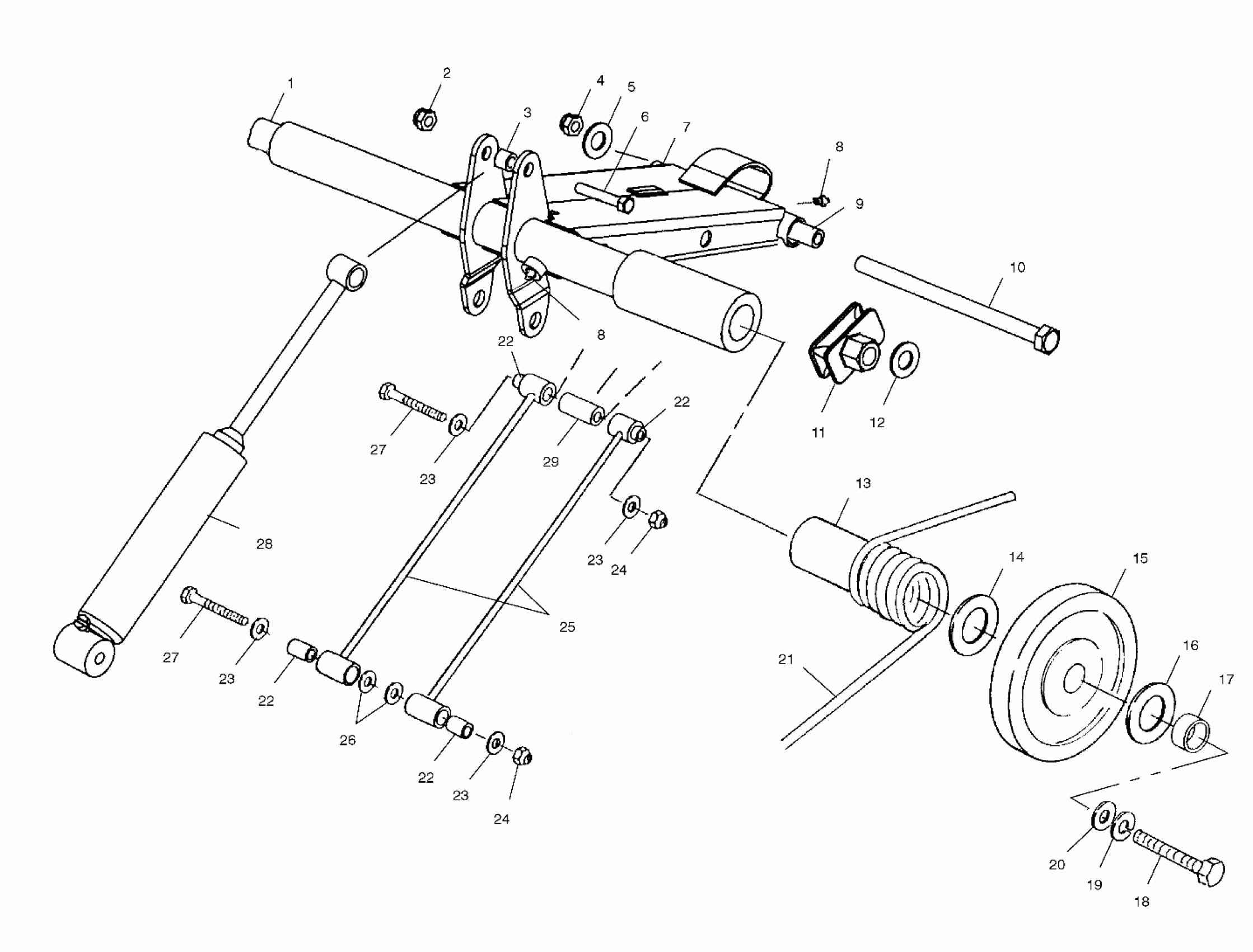

Polaris INDY 340 DELUXE - S02LD3AS REAR TORQUE ARM - S02LD3AS (4968406840B08) Diagram

#

Description
Price

1

Shaft

5131996

$56.65

2

Nut, Nylok

7542439

$1.49

3

Bushing

5132217

$5.59

4

Nut, FLEXLOC

7542319

$4.39

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

Screw

7515433

$1.59

7

Arm, Rear Torque

1541373-067

$186.65

8

FITTING-LUBRICATION 1/4-28

7080424

$4.79

8

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

Tube

5333483

$11.59

10

Screw

7517757

$3.99

11

Roller, Spring, Adjustable

5431168

Unavailable

12

CLIP-PUSH ON

7080394

$2.39

13

Tube, Spring

5521234

Unavailable

14

WASHER, THRUST

7555877

$3.99

15

Wheel, Carrier

1543022

$69.99

15

Bearing (1 Per Wheel)

3513504

$9.59

15

Ring, Retaining (1 Per Wheel)

7710403

$2.63

16

Washer, Flat

7555726

$1.59

17

Spacer

5332730

$14.99

18

Screw

7517435

$14.99

19

Washer, Spring Lock

7552603

$1.49

20

Washer, Flat

7555893

$1.49

21

Spring, Torsion, LH, Std. (.406/82)

7041521-067

Unavailable

21

Spring, Torsion, RH, Std. (.406/82)

7041522-067

Unavailable

21

Spring, Torsion, LH, Opt. (.393/77)

7041555-067

$70.39

21

Spring, Torsion, RH, Opt. (.393/77)

7041556-067

Unavailable

21

Spring, Torsion, LH, Opt. (.393/77)

7041557-067

Unavailable

21

Spring, Torsion, RH, Opt. (.393/77)

7041558-067

Unavailable

22

Bushing

5020561

$1.59

22

Bushing

5020561

$1.59

22

Bushing

5020561

$1.59

22

Bushing

5020561

$1.59

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

Nut, FLEXLOC

7542411

$3.19

24

Nut, FLEXLOC

7542411

$3.19

25

Rod, Shock

1541154-067

Unavailable

26

Washer

7555957

$4.79

27

SCREW

7515472

$2.39

27

SCREW

7515472

$2.39

28

Shock, Rear Torque Arm

7041331

Unavailable

29

Spacer

5333420

$11.99
