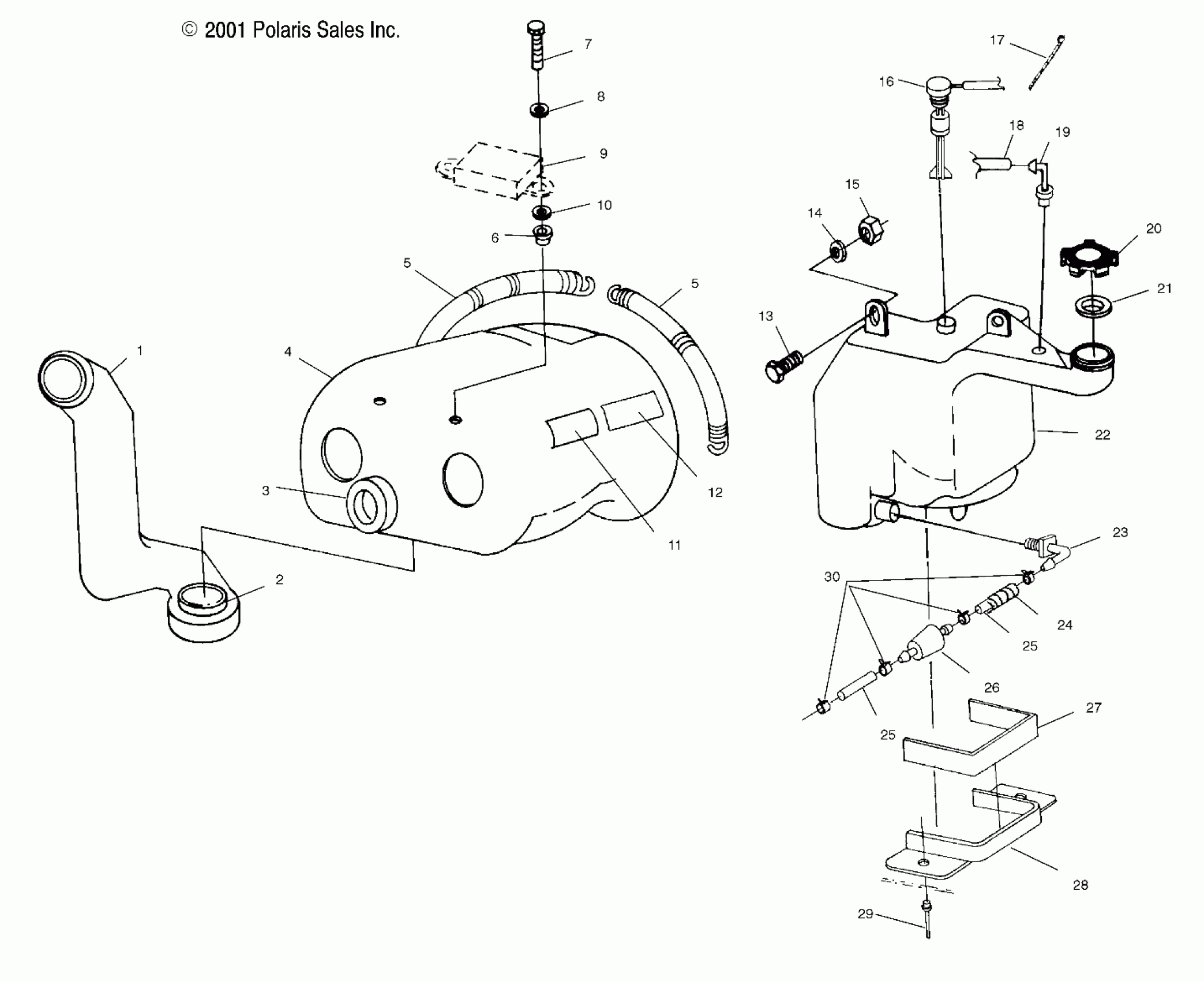

Polaris INDY 340 DELUXE - S02LD3AS OIL TANK/AIR BOX - S02LD3AS (4968406840B13) Diagram

#

Description
Price

1

Duct, Intake Silencer

5431354

Unavailable

2

Seal

5810462

$4.95

3

Boot

5410311

Unavailable

4

Silencer, Intake, Drilled

5431521

Unavailable

5

Spring, Intake Hold-Down

7041244

$11.79

5

Spring, Intake Hold-Down

7041244

$11.79

6

Nut, Well

7541923

$5.59

7

Screw

7512222

$2.39

8

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

9

Asm., Fuel Pump (See Fuel Pump Pg. C4, Ref. 3)

-------

Unavailable

10

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

11

Decal - Intake

7075348

Unavailable

12

Decal - Greasing

7073426

$7.27

13

BOLT

7512240

$3.99

14

WASHER

7558302

$1.59

15

Nut, Nylok

7542122

$1.49

16

Sensor, Oil Level

4110134

$72.84

17

Cable Tie

7080804

$3.22

18

LINE, FUEL

8450061-600

Unavailable

19

Fitting, 90 Degree

7052095

$4.79

20

Cap, Oil Tank

5430779

$14.56

21

Gasket, Oil Cap

5810141

$2.39

22

Tank, Oil, Drilled

5431488

$115.99

23

Fitting, Outlet, Double, 90 Degree

7052056

$6.23

24

Conduit, Convoluted

4010051-18

Unavailable

25

Line, Fuel

8450003-1525

Unavailable

25

Line, Fuel

8450003-1525

Unavailable

26

FILTER

2530009

$5.65

27

Pad, Oil Tank

5810522

$1.35

28

Bracket, Oil Tank, Lower

5222673

Unavailable

29

Rivet, Cherry

7621453

$3.19

30

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49
