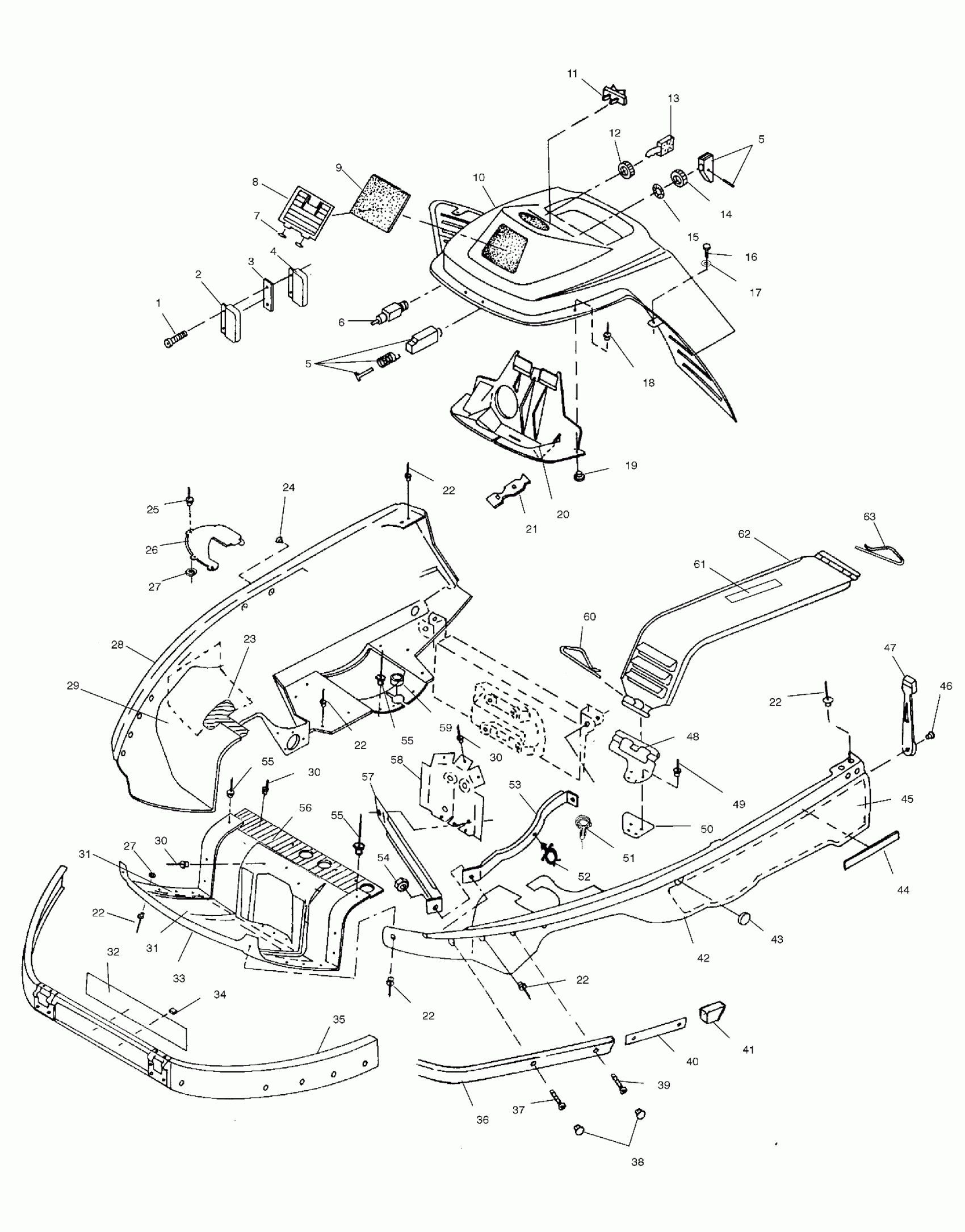

Polaris INDY 340 DELUXE - S02LD3AS NOSEPAN and CONSOLE - S02LD3AS (4968406840A05) Diagram

#

Description
Price

1

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

2

REGULATOR, LR9

4060122

Unavailable

3

Sink, Heat

5210650

Unavailable

4

Rectifier, LR-4, LR-2

4060104

Unavailable

5

Kit, Choke Control

2200188

$24.27

5

Cable, Choke Control

7080661

Unavailable

5

Kit, Choke Control

2200188

$24.27

5

Cable, Choke Control

7080661

Unavailable

6

Switch, Ignition, Electric Start

4110061

Unavailable

7

Seal

5410374

$1.83

8

Louver, Intake, Basic

5431211-070

Unavailable

9

Foam, Intake

5810458

Unavailable

10

Console

5431636-293

Unavailable

11

Indicator, Acc.

4040014

Unavailable

11

Plug, Indicator Hole

5430967

$5.65

11

Switch, Rocker

4110195

Unavailable

12

Nut, Ignition

7547034

Unavailable

13

Cap, Ignition Key

5410378

$13.75

14

Nut, Choke Slide

7080229

$19.99

15

Washer

7571610

$3.99

16

Screw

7517468

Unavailable

17

Washer, Flat

7558301

$1.49

18

Rivet

7621336

$1.59

19

WASHER

7555727

$1.49

20

Cover, Console, Inner, Basic

5431214-070

$66.39

21

Strap, Tool Compartment

5410425

Unavailable

22

RIVET

7621467

$1.49

22

RIVET

7621467

$1.49

22

RIVET

7621467

$1.49

22

RIVET

7621467

$1.49

22

RIVET

7621467

$1.49

22

RIVET

7621467

$1.49

23

Tape, Foil

5812012

$1.35

24

Clip, Dart

7670067

$3.99

25

Rivet, Pop

7621457

$1.49

26

Cover, Shock, RH

5431253

Unavailable

26

Cover, Shock, LH

5431252

Unavailable

27

Washer, Flat

7558212

$1.49

27

Washer, Flat

7558212

$1.49

28

Nosepan, RH

5431230-293

Unavailable

29

Tape, Foil

5812013

$4.95

30

RIVET

7621472

$1.49

30

RIVET

7621472

$1.49

30

RIVET

7621472

$1.49

31

Tape, Foil

5810475

Unavailable

31

Tape, Foil

5810475

Unavailable

32

Screen, Front

5243631-067

$21.43

33

Nosepan, Center

5431154-293

Unavailable

34

FASTENER-U TYPE CLIP

7670040

$3.99

35

Hinge, Lower

2635010-067

Unavailable

36

Bumper, Front

5224434-293

Unavailable

37

Screw

7515102

$4.79

38

Plug, Button

7080980

$4.15

39

Screw

7512164

Unavailable

40

Plate, Front Bumper Reinforcement

5222611-067

Unavailable

41

Cap, Bumper End, LH

5431250-293

$6.63

41

Cap, Bumper End, RH

5431251-293

Unavailable

42

Nosepan, LH

5431229-293

$117.37

43

PLUG, CLUTCH HOLE

5410582

$7.27

44

Reflector, Amber

2670071

Unavailable

45

Foam, Nosepan, LH

5811558

$12.44

46

Rivet, Cherry Mate

7621601

Unavailable

47

Strap, Hood Latch

5431501

Unavailable

48

Support, Clutch Guard

5222332-067

$4.95

49

Rivet, Cherry

7621449

$3.19

50

Plate, Clutch Guard

5211249-067

$3.49

51

Clip

5432302

Unavailable

52

CLIP, ROSEBUD

4020139

$4.79

53

Bracket, Pan Brace, LH

5222339-067

Unavailable

53

Bracket, Pan Brace, RH

5222340-067

Unavailable

54

Nut, Nylok

7542122

$1.49

55

Rivet, Bulbex

7621479

$1.99

55

Rivet, Bulbex

7621479

$1.99

55

Rivet, Bulbex

7621479

$1.99

56

Tape, Foil

5812014

$4.95

57

Bracket, Bumper Brace, LH

5222345-067

Unavailable

57

Bracket, Bumper Brace, RH

5222346-067

Unavailable

58

Bracket, Support, Radius Rod

5222356-067

$38.19

59

Shield, Nosepan Drain Hole

5811078

Unavailable

60

Pin, Clutch Cover

7080216

$9.70

61

Decal, Engine and Clutch

7075350

Unavailable

62

Guard, Clutch

5243761

$53.59

63

Pin, Clutch Cover

7080311

Unavailable
