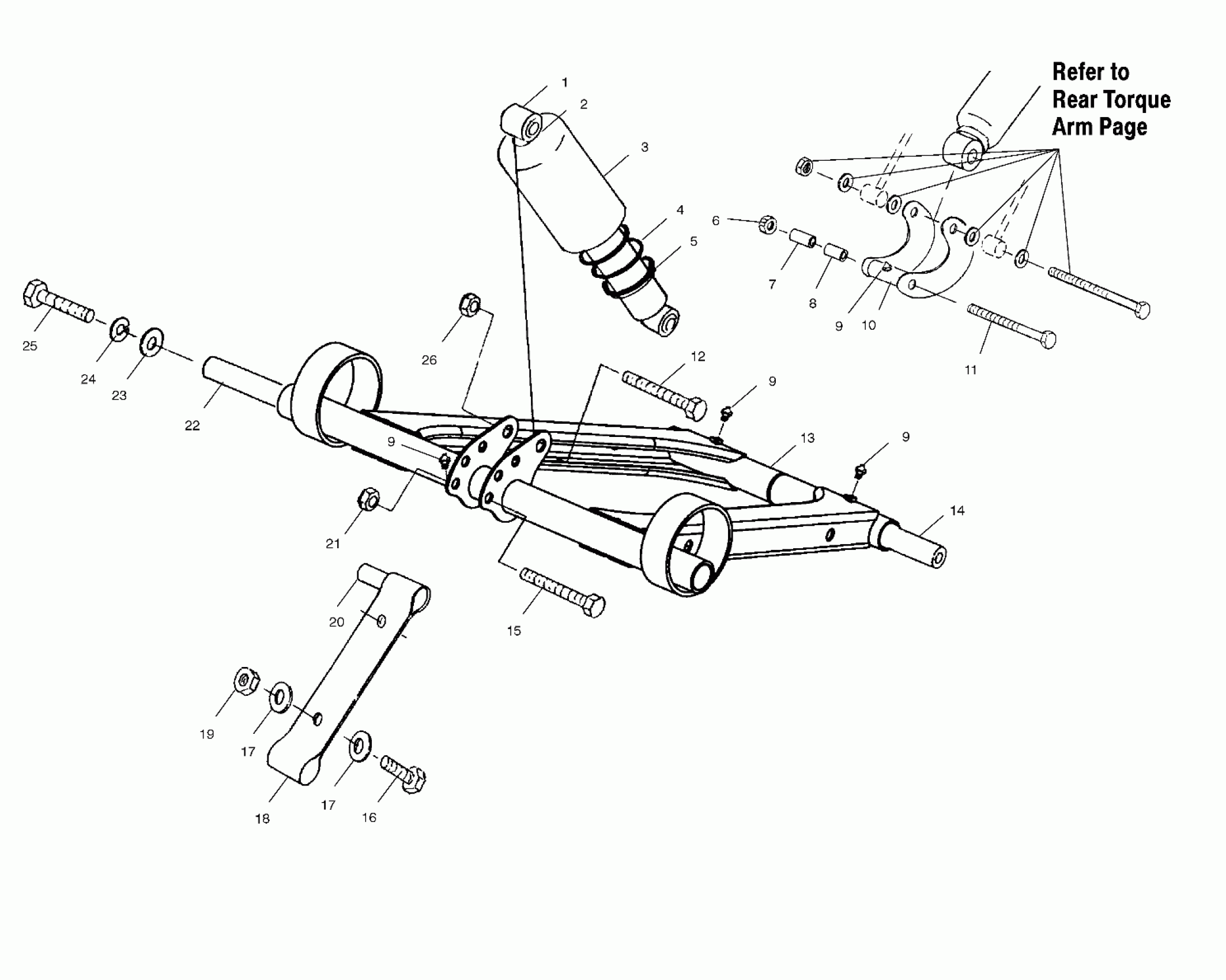

Polaris INDY 340 DELUXE - S02LD3AS FRONT TORQUE ARM - S02LD3AS (4968406840B07) Diagram

#

Description
Price

1

Shock, Front Track

7041930

Unavailable

2

Retainer, Spring, Slotted

5630580

Unavailable

3

SHIELD, SPRING

5430671

$24.27

4

Spring, Compression

7041570-067

Unavailable

5

RETAINER, SPRING

5245067

$23.99

6

Nut, FLEXLOC

7542403

$3.99

7

Spacer

5333028

$1.59

8

Bushing

5020561

$1.59

9

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

FITTING-LUBRICATION 1/4-28

7080424

$4.79

10

Arm, Shock

1540942-067

Unavailable

11

Screw

7515438

$4.79

12

Screw

7515433

$1.59

13

Arm, Torque, Front

1541522-067

Unavailable

14

Shaft

5333511

Unavailable

15

BOLT

7515319

$4.79

16

SCREW

7517313

$4.79

17

Washer, Flat

7556175

$5.99

17

Washer, Flat

7556175

$5.99

18

Strap, Limiter

5811281

Unavailable

19

NUT, NYLOK

7542344

$3.99

20

Bushing

5333897

$4.39

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

Shaft

5020908

$69.99

23

Washer, Flat

7555893

$1.49

24

Washer, Spring Lock

7552603

$1.49

25

Screw

7517435

$14.99

26

Nut, Nylok

7542439

$1.49
