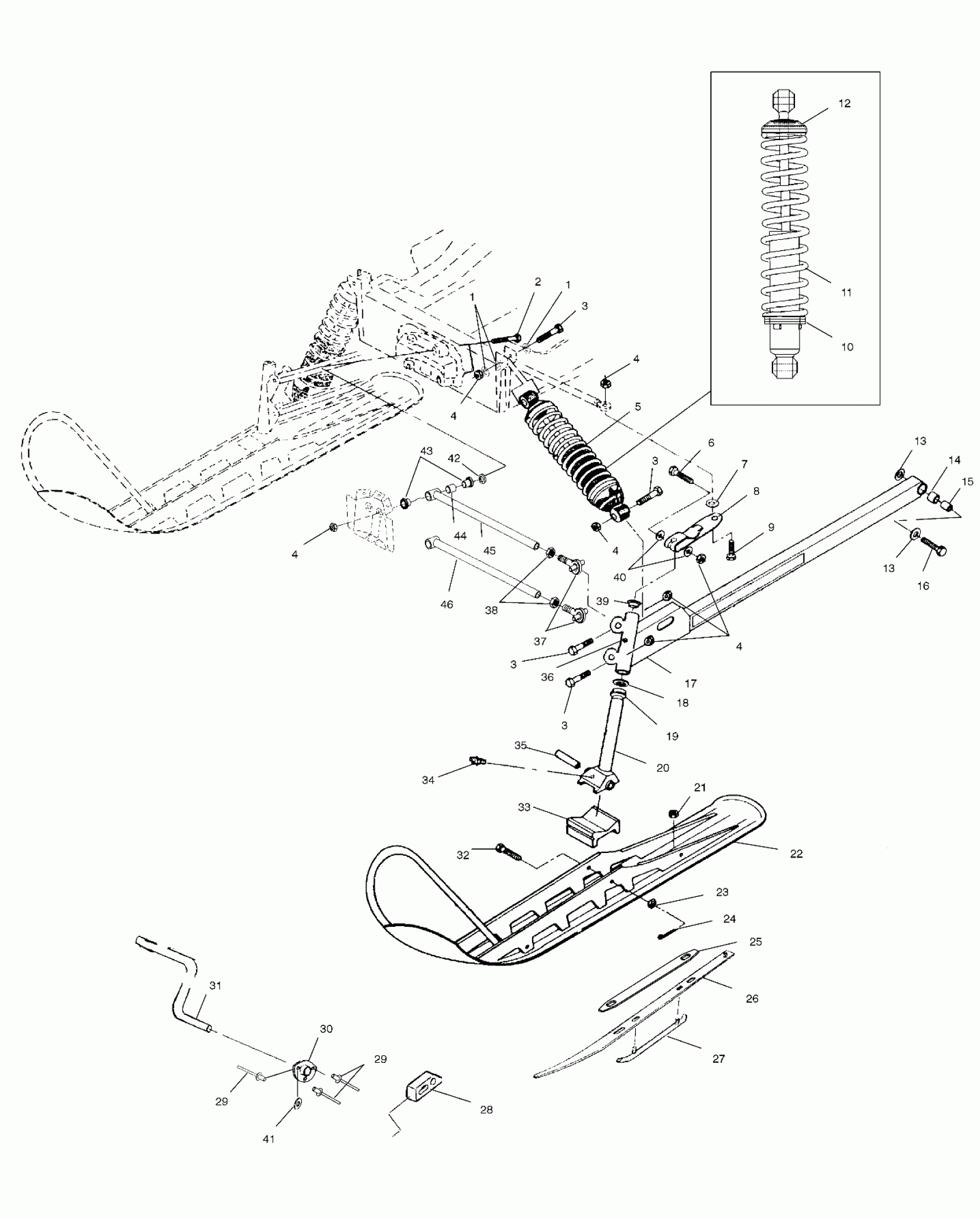

Polaris INDY 340 DELUXE - S02LD3AS FRONT SUSPENSION and SKI - S02LD3AS (4968406840A13) Diagram

#

Description
Price

1

Washer, Flat

7555806

$1.49

1

Washer, Flat

7555806

$1.49

2

SCREW

7515417

$4.79

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

5

Shock, IFS

7041788

Unavailable

6

SCREW

7517583

$4.35

7

Washer

7555976

$3.99

8

Arm, Steering

5220326-067

Unavailable

9

SCREW

7515528

$8.79

10

Retainer, Spring, Bottom

5210953

$6.39

11

Spring, Compression

7041261-067

$164.99

12

Retainer, Spring Coil, Top

5220225

$10.39

13

WASHER

7555721

$1.49

13

WASHER

7555721

$1.49

14

Pivot, Rubber, Trailing Arm Ext.

5410382

Unavailable

15

Bushing

5010187

Unavailable

16

Screw

7512557

$7.60

17

Arm, Trailing, LH

1823136-067

Unavailable

17

Arm, Trailing, RH

1823137-067

$266.49

18

Bushing

7556509

$1.59

19

BUSHING, FLANGED

3574208

$3.19

20

Shaft, Spindle

6230073-067

Unavailable

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

Ski

1820333-067

Unavailable

23

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

24

Pin, Cotter

7661209

Unavailable

25

Shim, Skag Plate

5245145-067

Unavailable

26

Plate, Skag

1011829-067

$54.99

27

Skag

1820318-067

$49.99

28

Slide

5410384

Unavailable

29

Rivet

7621477

$1.19

29

Rivet

7621477

$1.19

30

Bushing

5410383

Unavailable

31

Bar, Sway

5243397-067

$53.59

32

Screw

7515462

$8.79

33

Stop, Rubber

5521231

Unavailable

34

Fitting, Lubrication w/Ball

7080306

$3.19

35

Bushing

5010158

$19.99

36

Fitting, Lubrication

7080433

$1.49

37

Rod End, RH, Wide Bore

7061069

Unavailable

38

Nut, Jam

7542520

$2.39

39

BUSHING, FLANGE

3573909

$2.39

40

WSHR-.813X.406X.105-Y

7555832

$2.39

41

Washer

7555904

$1.49

42

Washer, Flat

7555797

$3.99

43

Bushing, Radius Rod Pivot

5431486

$3.19

44

Bushing

5010252

$1.59

45

Rod, Radius, Upper

1820658-067

Unavailable

46

Rod, Radius, Lower

1820660-067

Unavailable
