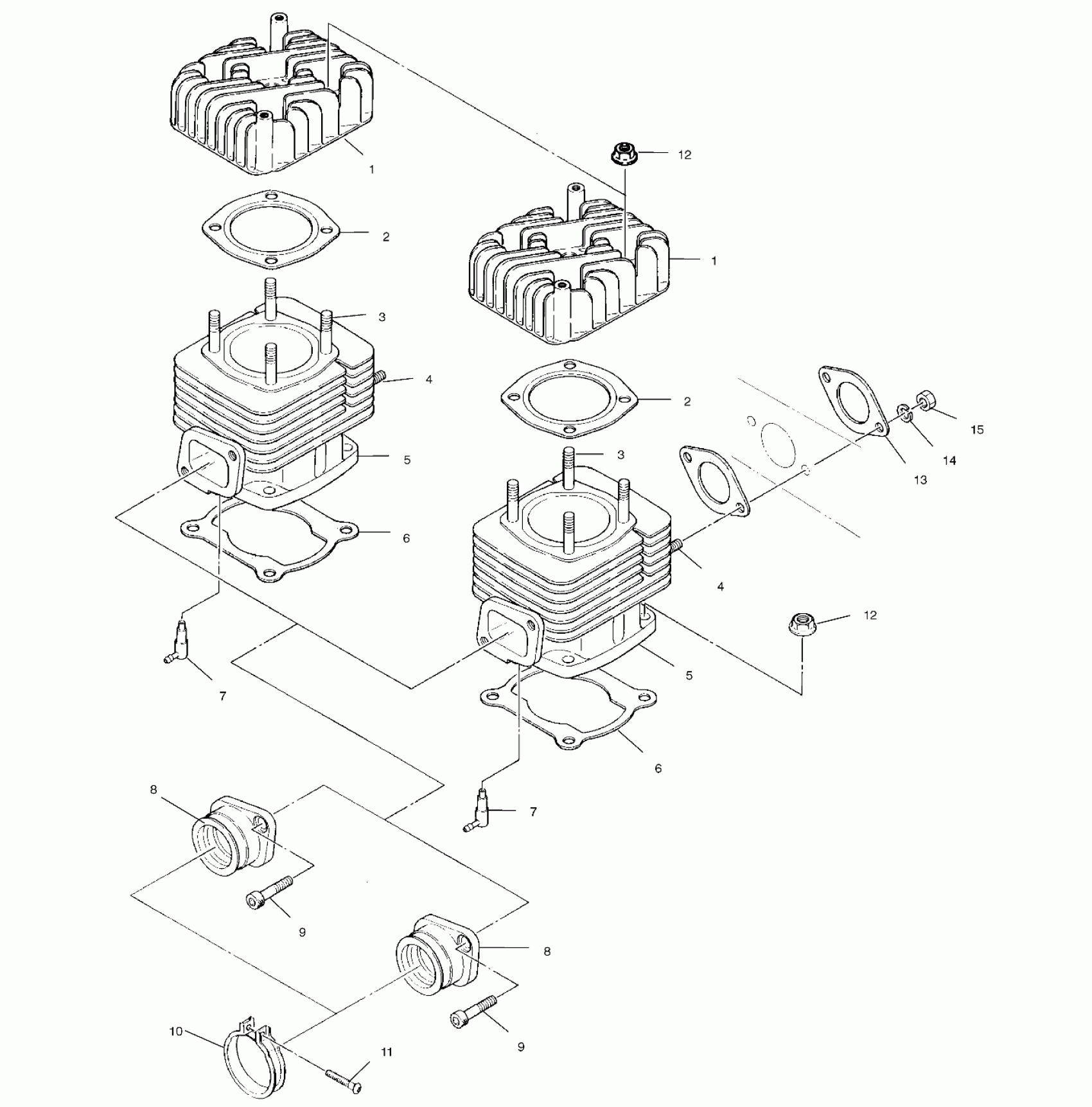

Polaris INDY 340 DELUXE - S02LD3AS CYLINDER - S02LD3AS (4968406840C01) Diagram

#

Description
Price

1

Head, Cylinder

3083573

$133.32

1

Head, Cylinder

3083573

$133.32

2

Gasket, Head

3085844

Unavailable

2

Gasket, Head

3085844

Unavailable

3

Stud

3080283

$12.94

3

Stud

3080283

$12.94

4

Stud

3085326

Unavailable

4

Stud

3085326

Unavailable

5

Cylinder (Incl. 3-5)

3083570

$507.94

5

Cylinder (Incl. 3-5)

3083570

$507.94

6

Gasket, Cylinder

3085843

Unavailable

6

Gasket, Cylinder

3085843

Unavailable

7

Check Valve

3086785

$52.60

7

Check Valve

3086785

$52.60

8

Adapter

3083576

Unavailable

8

Adapter

3083576

Unavailable

9

Bolt, Allen

3081330

$3.99

9

Bolt, Allen

3081330

$3.99

10

Asm., Band, Adapter (Incl. 10-11)

3082257

Unavailable

11

SCREW

3081497

$2.39

12

NUT, FLANGE

3082910

$2.39

12

NUT, FLANGE

3082910

$2.39

13

Gasket, Exhaust

3085845

Unavailable

14

Washer, Lock

3080530

$3.19

15

Nut

3080285

Unavailable
